Chart C-12, Cooling Fan Circuit Diagnosis (2 Of 2) 3.1L

WARNING: This page does not describe the selected car, but rather 35 other vehicles, including the 1992 Pontiac Trans Sport, 1992 Oldsmobile Silhouette, 1992 Oldsmobile Bravada, 1992 GMC Yukon, and 1992 GMC Vandura Special. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Test numbers refer to test numbers on diagnostic charts.

Battery voltage should be available at cooling fan relay terminals "A" and "D" when ignition switch is in the ON position.
This checks ECM's ability to ground circuits No. 335 and 473. SERVICE ENGINE SOON light should be flashing at this point. If SERVICE ENGINE SOON light is not flashing, refer to G - TESTS W/ CODES article.
This test checks if cooling puller and pusher fan relays (circuits No. 533 and 702) are open. Jumpering relay terminals "A" and "E" by-passes relay, which should cause fans to operate, if motors and wiring are okay.

Fig 1: Cooling Fan Circuit Schematic (3.1L)

Courtesy of GENERAL MOTORS CORP.

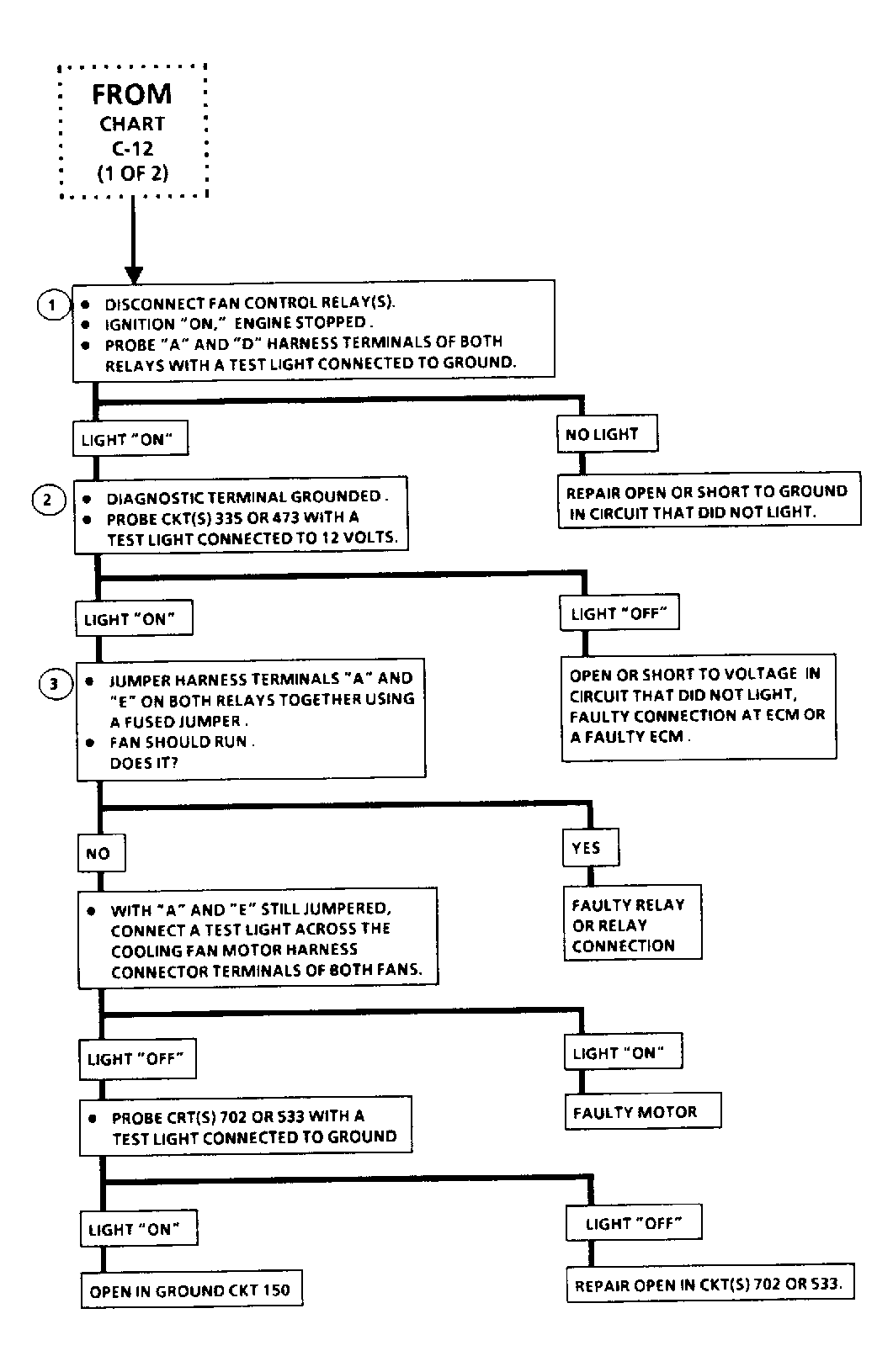

Fig 2: Cooling Fan Circuit Flow Chart, (3.1L) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
