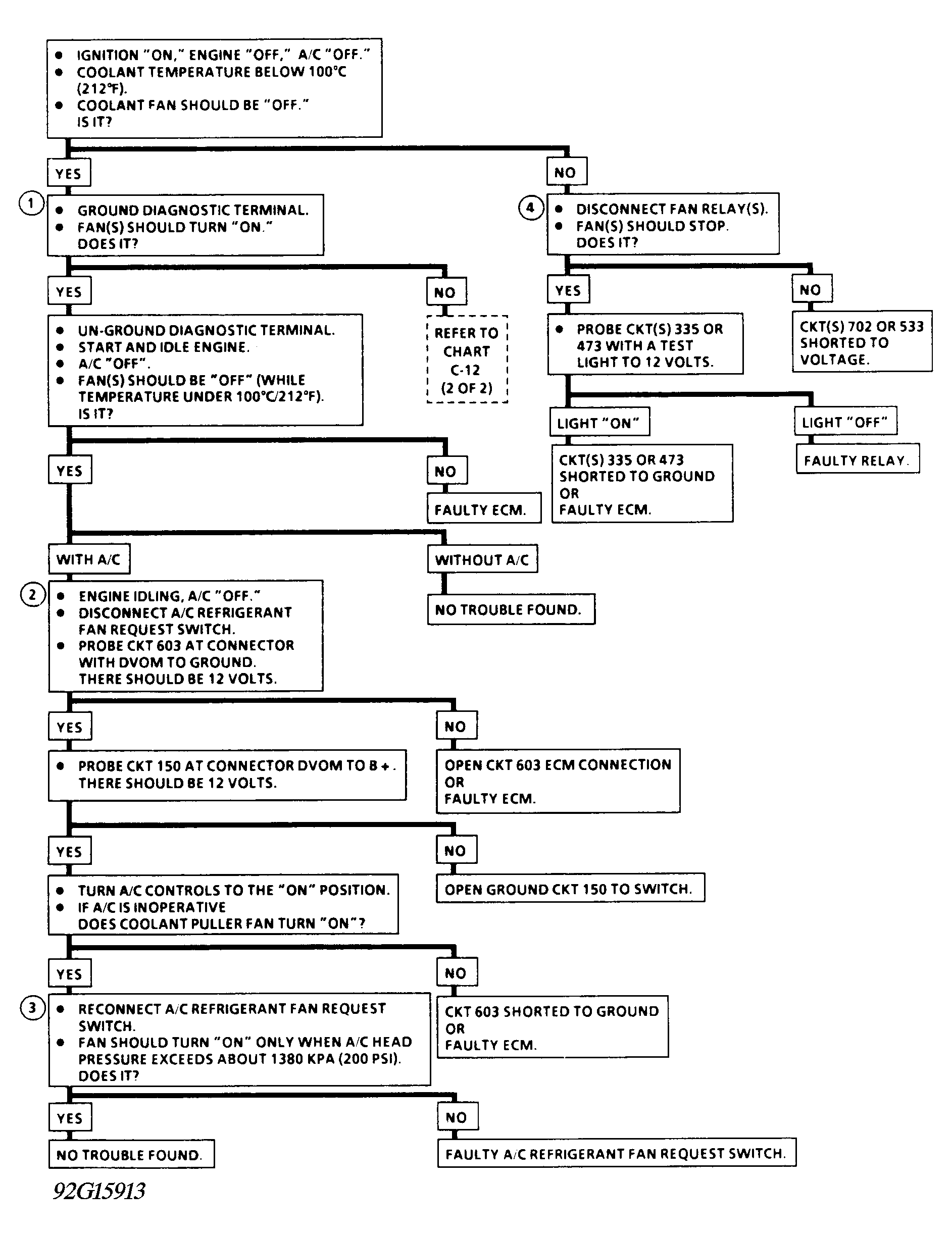

Diagnostic Aids
WARNING: This page does not describe the selected car, but rather 35 other vehicles, including the 1992 Pontiac Trans Sport, 1992 Oldsmobile Silhouette, 1992 Oldsmobile Bravada, 1992 GMC Yukon, and 1992 GMC Vandura Special. However, it is still accessible from the selected car via links, so may be relevant.
If an overheating condition is suspected, verify if it is due to actual boilover. If gauge or light indicates an overheat condition and boilover is not evident, inspect gauge/light circuit for malfunction.
If vehicle is overheating and gauge or light indicates so, but cooling fan is not operating and scan tester indicates normal readings, coolant temperature sensor is out of calibration and should be replaced. If engine is overheating and cooling fan is on, check cooling system.
