Chart C-10, A/C Control Diagnosis (A/T) (1 Of 2) 4.3L Turbo PFI
WARNING: This page does not describe the selected car, but rather 35 other vehicles, including the 1992 Pontiac Trans Sport, 1992 Oldsmobile Silhouette, 1992 Oldsmobile Bravada, 1992 GMC Yukon, and 1992 GMC Vandura Special. However, it is still accessible from the selected car via links, so may be relevant.
ECM controls operation of A/C clutch to improve idle quality and performance by:
- Delaying A/C clutch application until idle air rate is increased.
- Releasing A/C clutch when idle speed is too low.
- Releasing A/C clutch at wide open throttle operation.
- Smooths cycling of compressor by providing additional fuel the instant A/C clutch is applied.

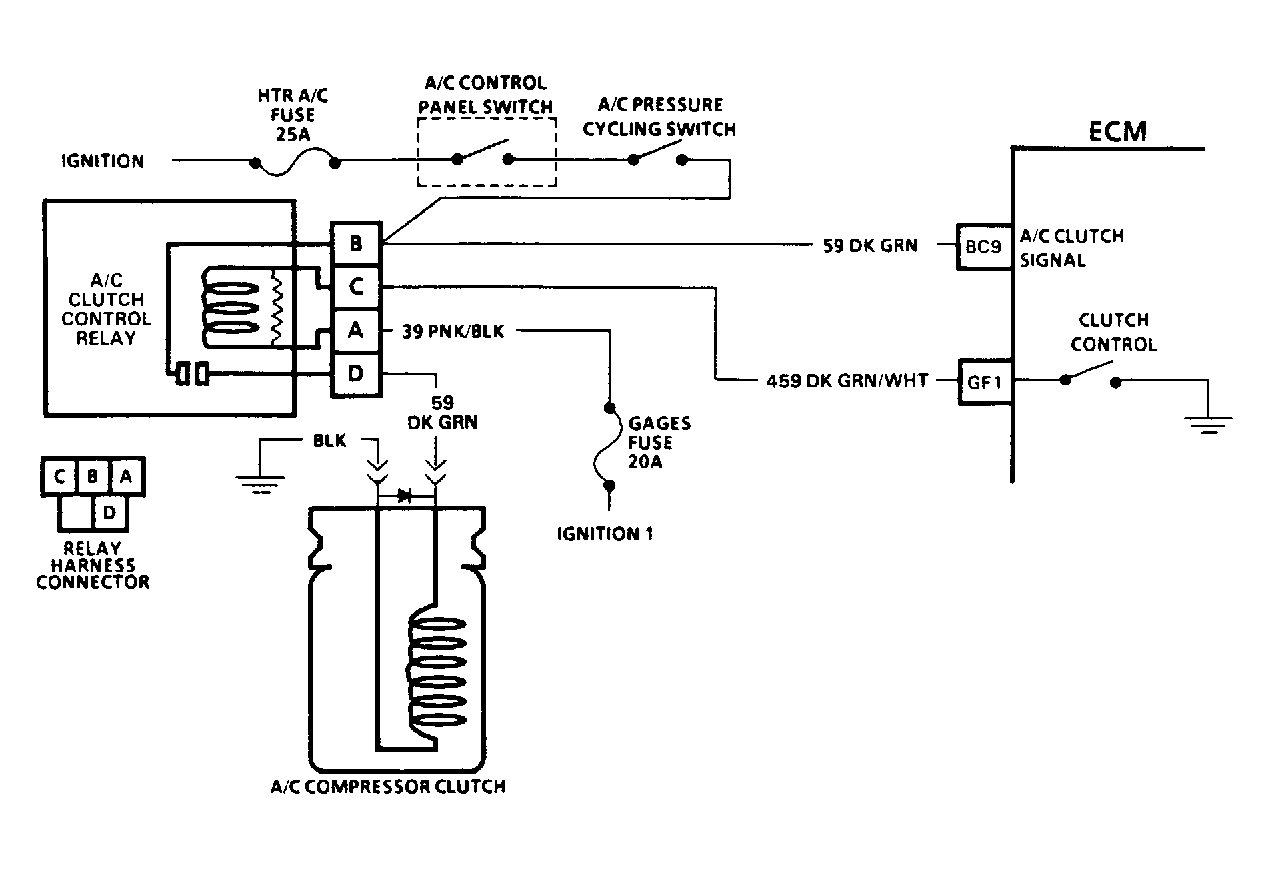

Turning on A/C supplies battery voltage to clutch relay (circuit No. 59) and ECM terminal BC9. After a time delay of .5 seconds, the ECM grounds terminal GF1 (circuit No. 459), and closes control relay. A/C compressor clutch then engages.
NOTE:

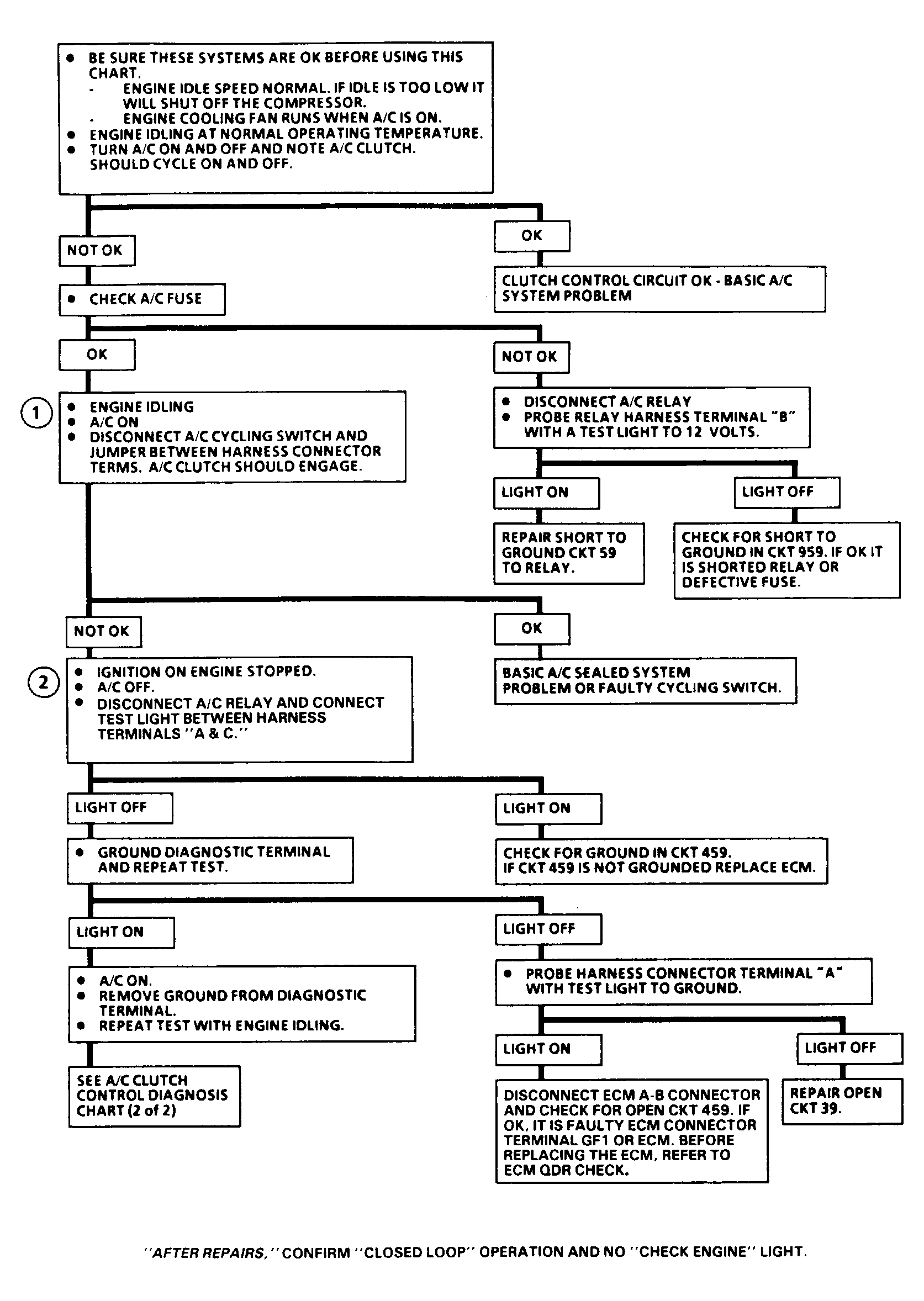

Test numbers refer to test numbers on diagnostic charts.
- Checks for low refrigerant as cause for no A/C.
- This step and the steps that follow checks for faulty A/C control relay. QUAD-DRIVER CHECK is located under COMPUTERIZED ENGINE CONTROLS.
