Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 35 other vehicles, including the 1992 Pontiac Trans Sport, 1992 Oldsmobile Silhouette, 1992 Oldsmobile Bravada, 1992 GMC Yukon, and 1992 GMC Vandura Special. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance of each ECM controlled relay or solenoid coil before replacing ECM. See CONTROL UNIT  under COMPUTERIZED ENGINE CONTROLS. Replace any relay or solenoid with a resistance of less than 20 ohms.

Fig 1: A/C Clutch Circuit (2.5L & 2.8L), Schematic
G92B22161Courtesy of GENERAL MOTORS CORP.

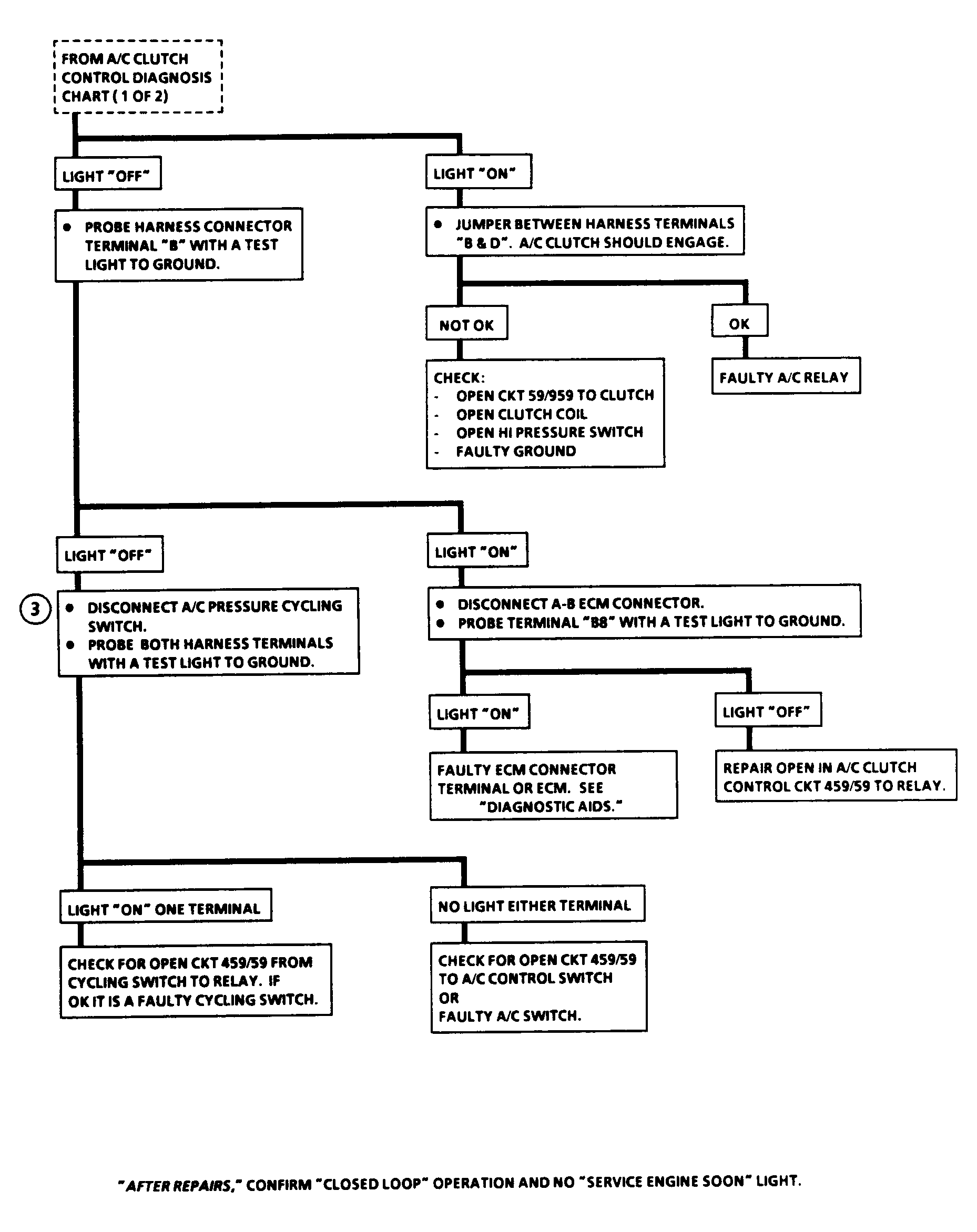

Fig 2: A/C Clutch Circuit (2.5L & 2.8L), Flow Chart, (2 Of 2)
G92D22163Courtesy of GENERAL MOTORS CORP.
