Park/Neutral (P/N) Switch

WARNING: This page does not describe the selected car, but rather 35 other vehicles, including the 1992 Pontiac Trans Sport, 1992 Oldsmobile Silhouette, 1992 Oldsmobile Bravada, 1992 GMC Yukon, and 1992 GMC Vandura Special. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect P/N switch (located on transmission) harness connector. Connect ohmmeter between P/N switch terminals. See Fig 1. Continuity should be present only when gear shift selector is in Park or Neutral. If continuity is not present, check P/N switch adjustment or replace defective P/N switch.

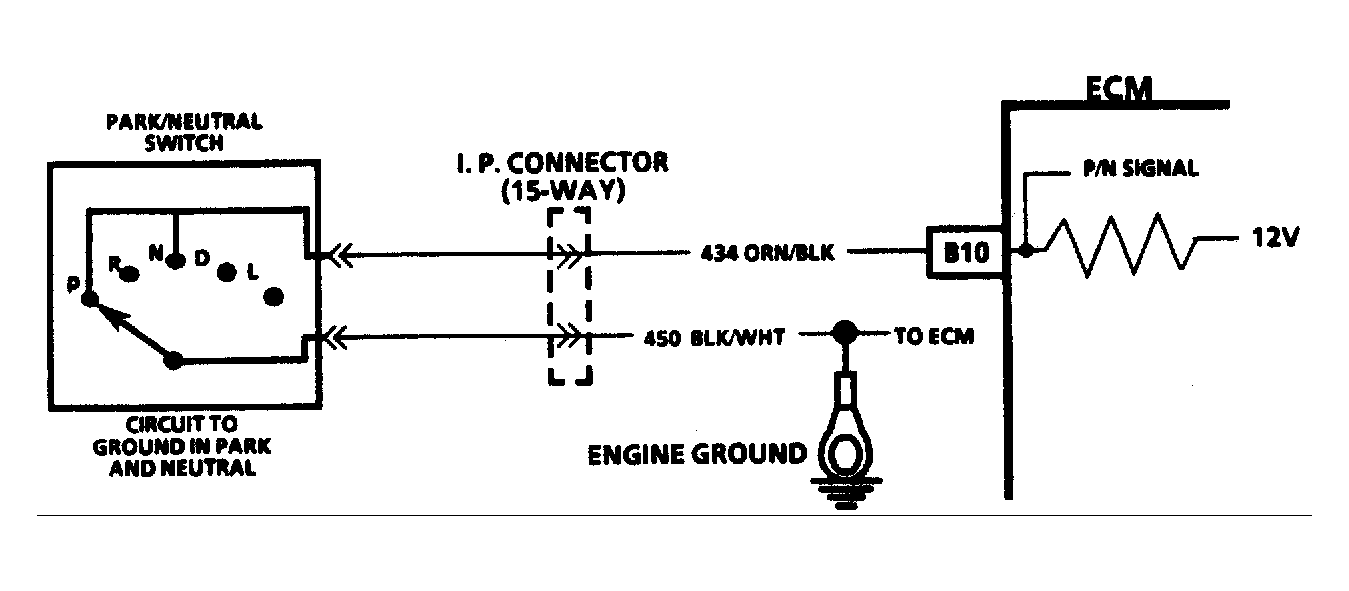

Fig 1: Typical P/N Switch Circuit
G90B15736Courtesy of GENERAL MOTORS CORP.
