Scan Tool Diagnostic Mode

WARNING: This page is about a different car, the 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition off. Connect scan tool to Data Link Connector (DLC). See DATA LINK CONNECTOR (DLC)  table for connector location. See Fig 1.
    DATA LINK CONNECTOR (DLC)

    Application DLC Location
    Dakota Right Rear Corner Of Engine Compartment
  2. Start engine (if possible). With foot on brake, move transmission shift lever through all positions, ending in Park. Turn A/C switch on and then off (if equipped).
  3. Turn engine off. Without starting engine again, turn ignition on. Using scan tool, access and record trouble codes.
  4. When scan tool trouble code message is obtained, refer to appropriate test number in TESTS W/CODES - 2.5L article in the ENGINE PERFORMANCE section. To clear trouble codes, see CLEARING TROUBLE CODES .

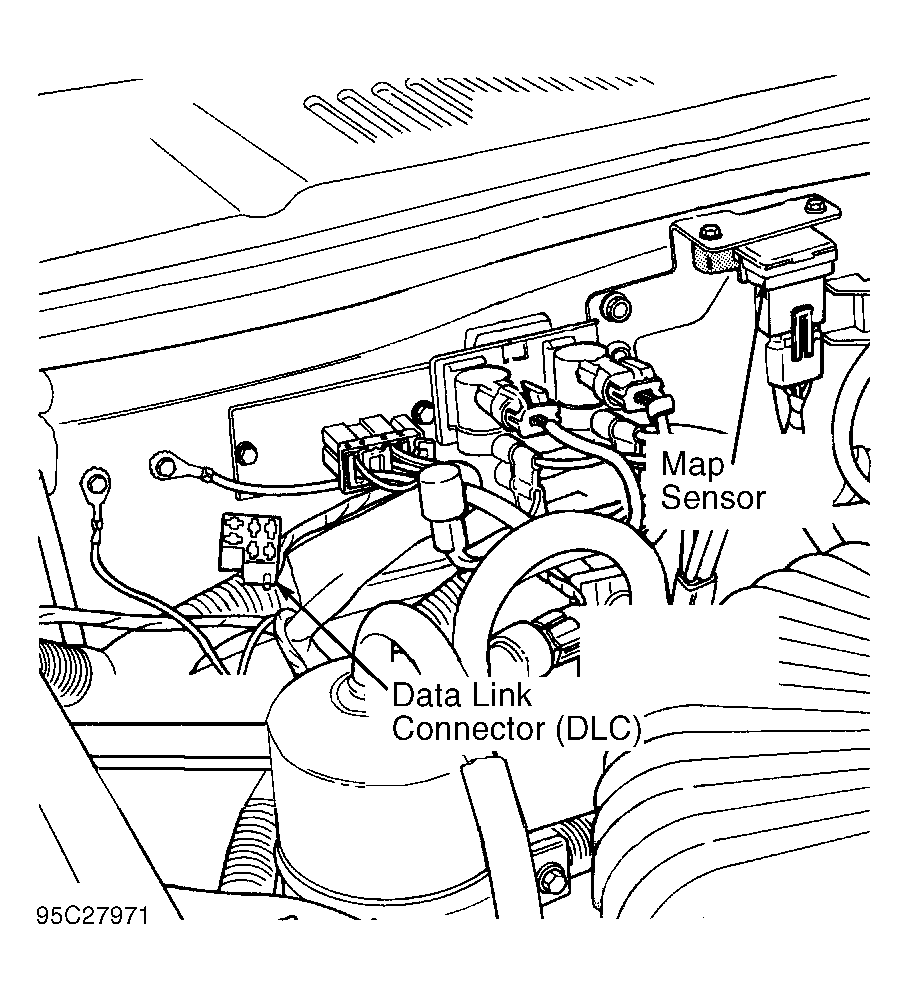

Fig 1: Locating Data Link Connector (DLC) (Dakota)
G95C27971Courtesy of CHRYSLER CORP.
