Driver-Side Air Bag Module & Steering Wheel: Removal

WARNING: This page is about a different car, the 1995 Dodge Ram Wagon and 1995 Dodge Ram Van. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see SERVICE PRECAUTIONS. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM.

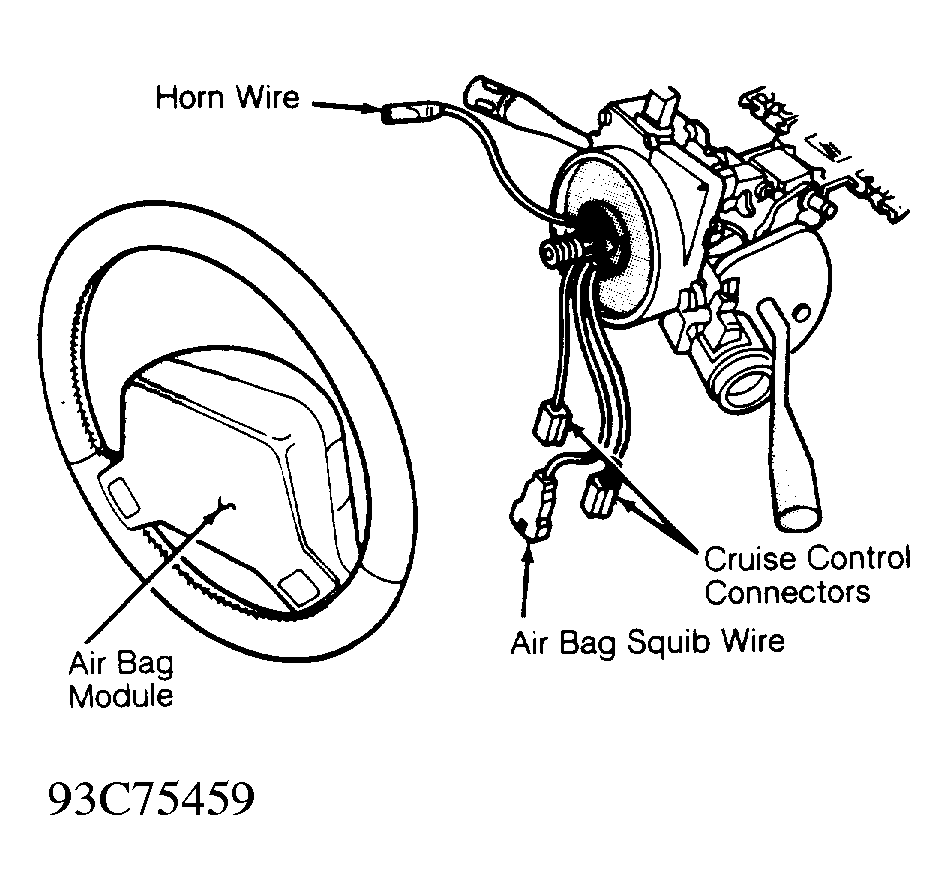

  2. Driver-side air bag module is mounted on face of steering wheel. See Figure . Position wheels in straight ahead position. Remove cruise control switches (if equipped) and covers from steering wheel back shroud, and disconnect wires.
  3. Remove air bag module retaining bolts/nuts from rear of steering wheel. Lift air bag module from steering wheel, and disconnect electrical connector. Remove air bag module. Using Puller (C3428B), remove steering wheel.
