WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

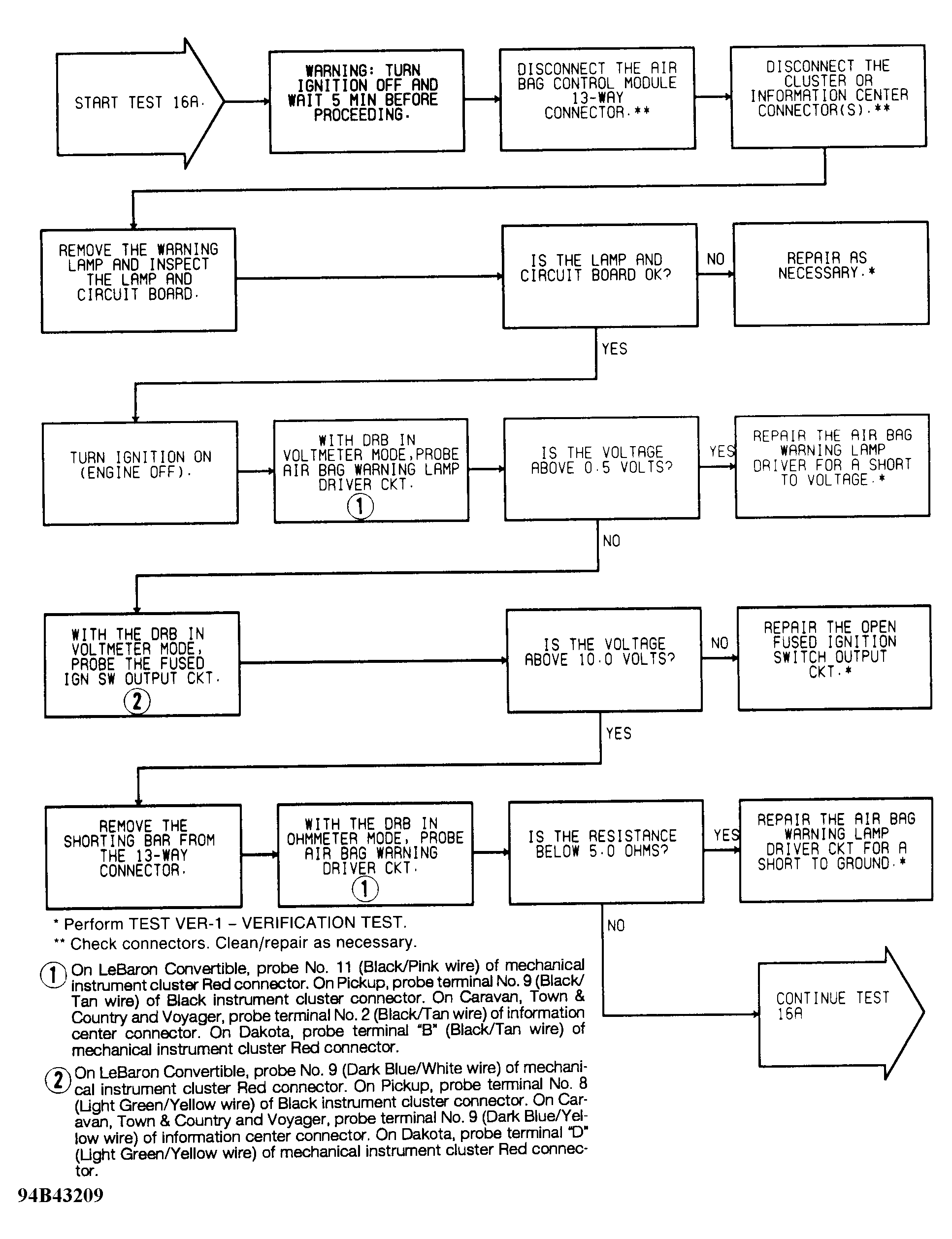

Fig 1: Test 16A - Warning Lamp Circuit Open/Shorted (1 Of 2)
Courtesy of CHRYSLER CORP.

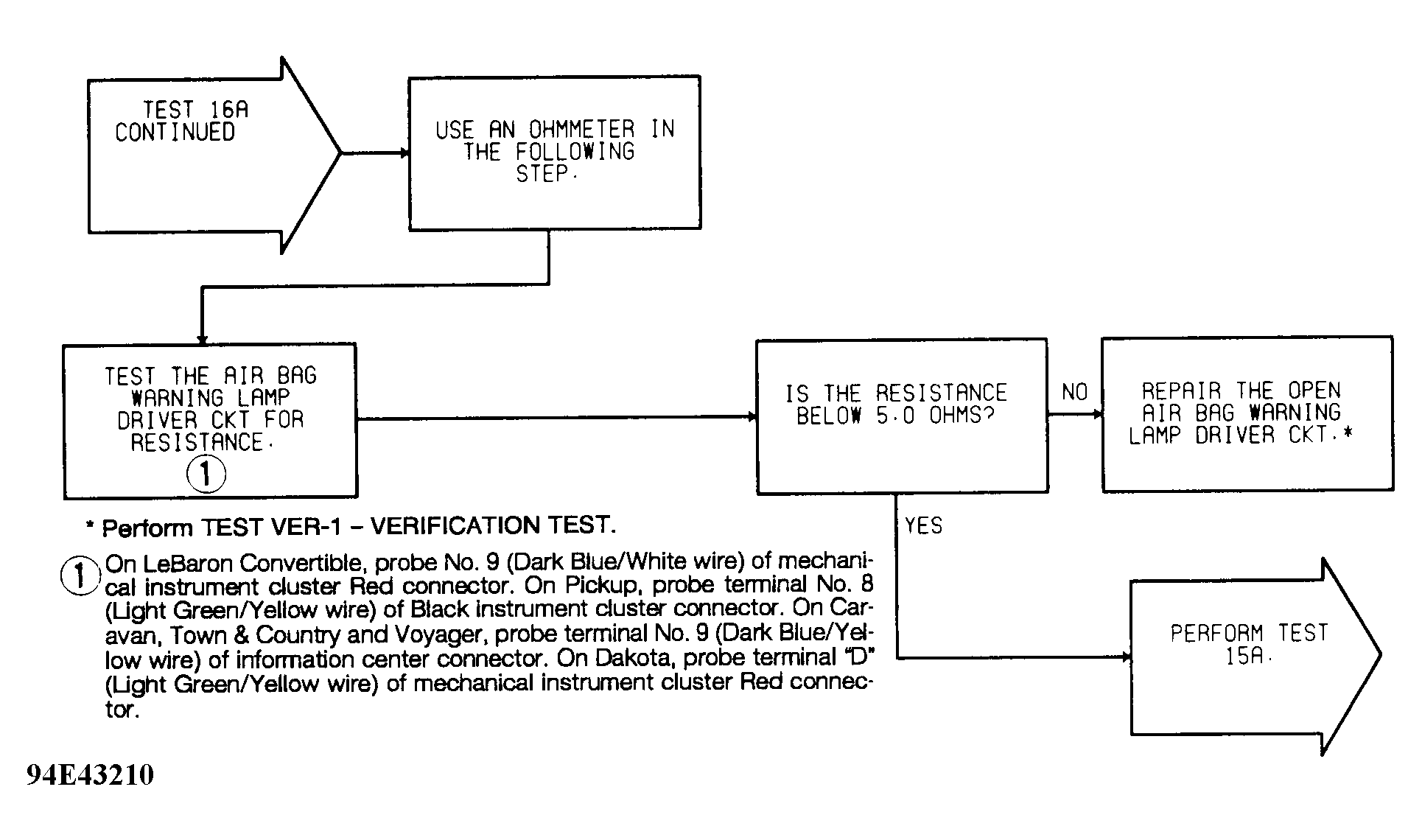

Fig 2: Test 16A - Warning Lamp Circuit Open/Shorted (2 Of 2)
