Locking Hub: Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1991 GMC Suburban, 1991 GMC Pickup, 1991 GMC Jimmy, 1991 GMC Cab & Chassis, and 1991 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

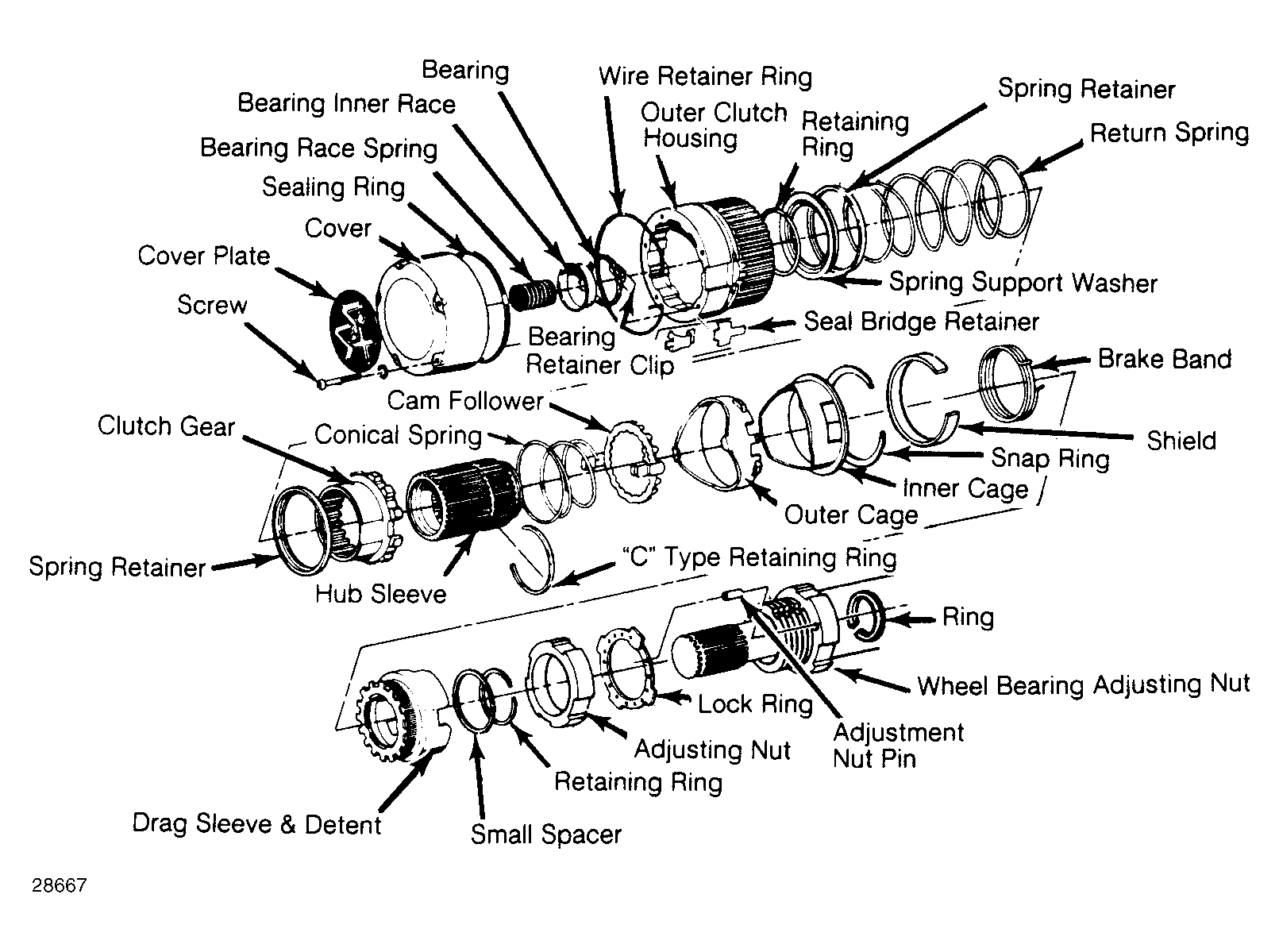

- To install, reverse removal procedure. Lubricate housing splines with Lubricant (1052750) before installing components. Ensure wire retainer ring fully seats in groove in hub assembly. Pack bearing with Lubricant (1052750) before installing.
- When installing bearing race spring, apply small amount of grease on spring to retain spring in locator area of the cover. Replace "O" ring and install cover screws. Tighten screws to 45 INCH lbs. (5 N.m).
