Code 54, Fuel Pump Circuit

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1992 GMC Yukon, 1992 GMC Vandura Special, 1992 GMC Vandura, 1992 GMC Value Van, and 1992 GMC Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Code 54 will set if ECM does not see 12 volts on fuel pump signal voltage monitor during the first 2 seconds after ignition is turned on.

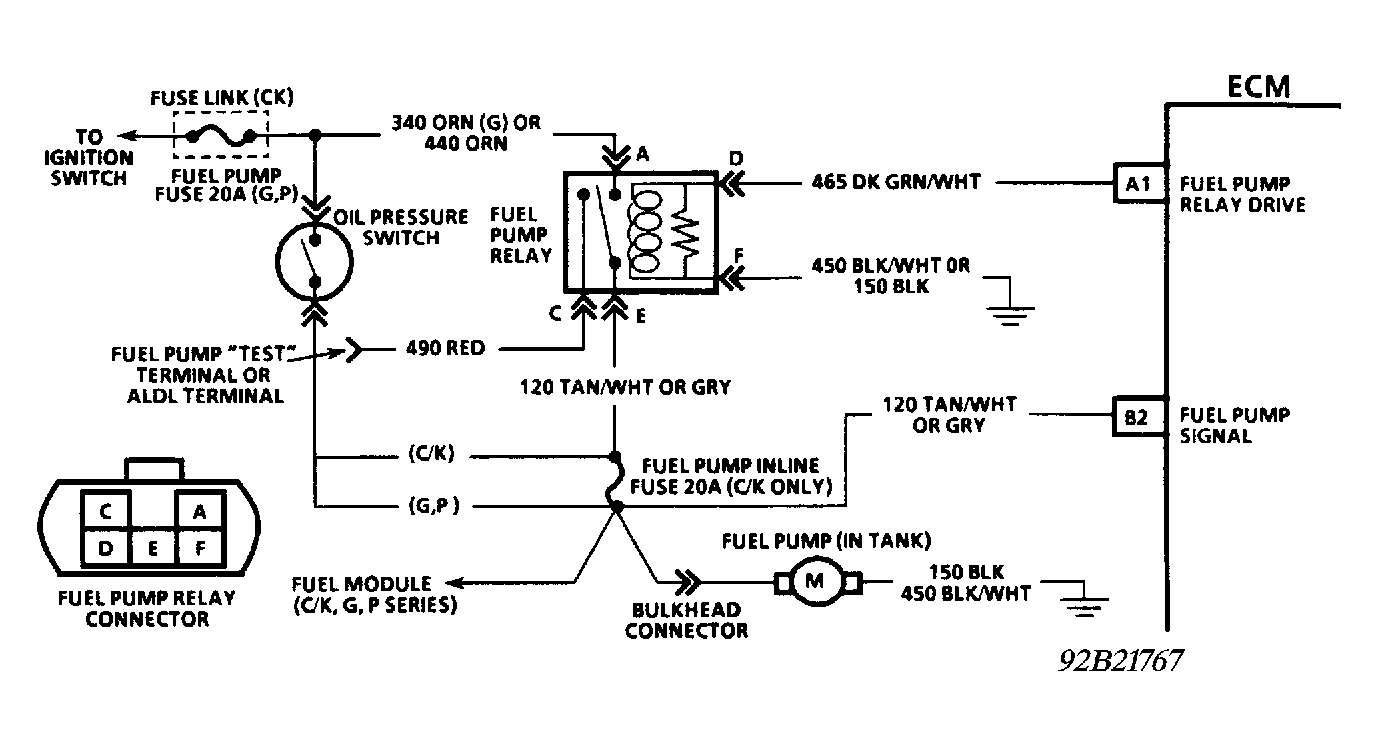

Fig 1: Code 54, Schematic, Fuel Pump Circuit

Courtesy of GENERAL MOTORS CORP.

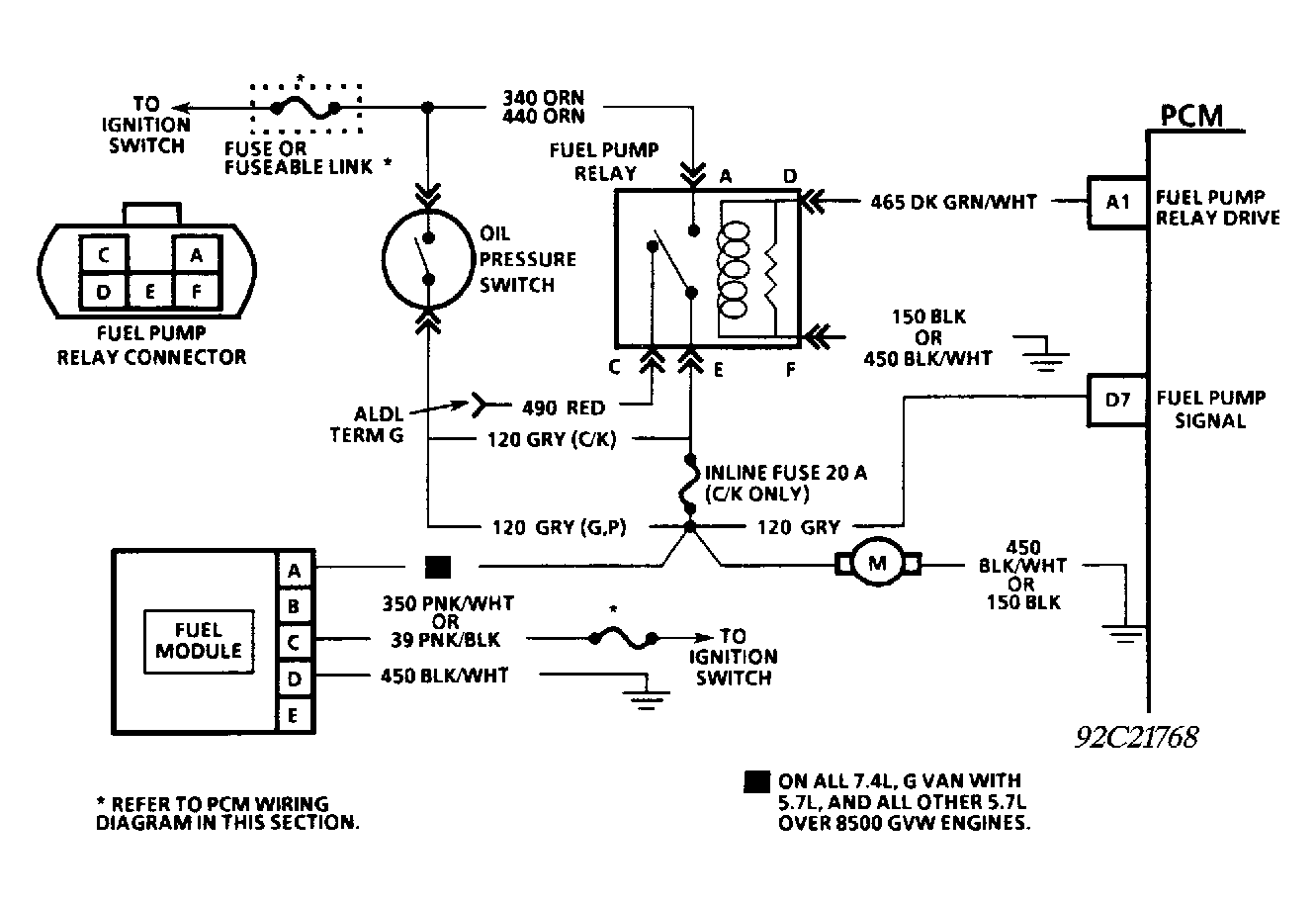

Fig 2: Code 54, Schematic, Fuel Pump Circuit

Courtesy of GENERAL MOTORS CORP.

Fig 3: Code 54, Flow Chart, Fuel Pump Circuit

Courtesy of GENERAL MOTORS CORP.
