Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1992 GMC Yukon, 1992 GMC Vandura Special, 1992 GMC Vandura, 1992 GMC Value Van, and 1992 GMC Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Code 43 can be caused by a faulty knock sensor connection at ESC module or ECM. Also, check controller-to-ECM signal line for an open or short to ground.

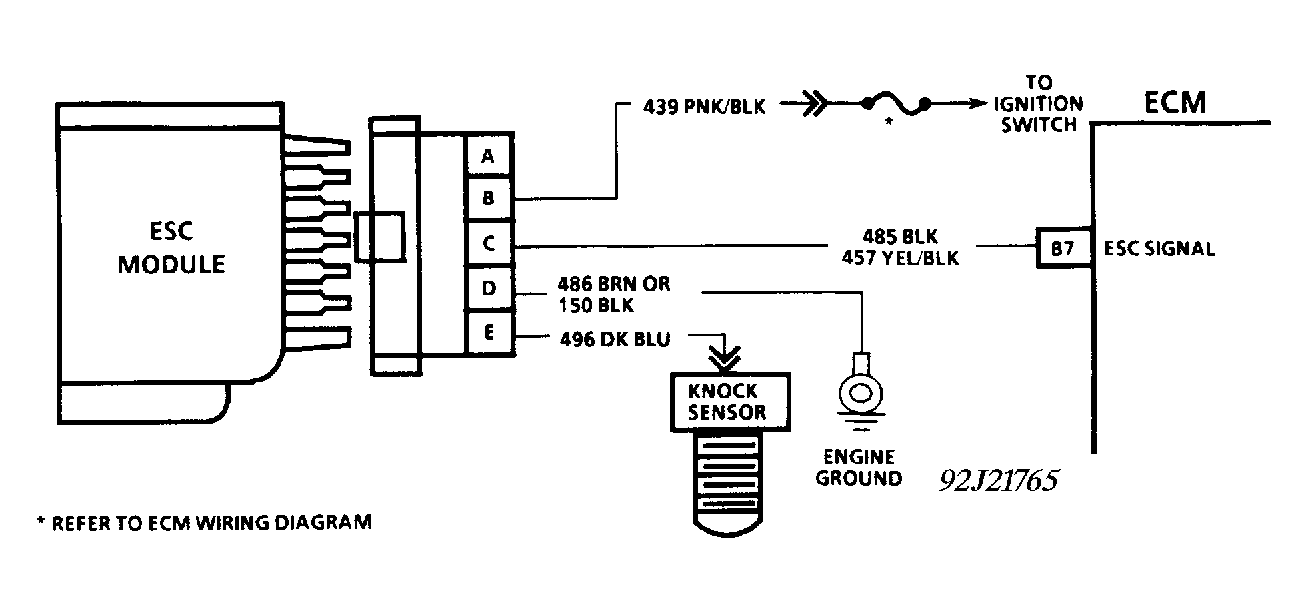

Fig 1: Code 43, Schematic, Electronic Spark Control

Courtesy of GENERAL MOTORS CORP.

Fig 2: Code 43, Flow Chart, Electronic Spark Control

Courtesy of GENERAL MOTORS CORP.
