Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1992 GMC Yukon, 1992 GMC Vandura Special, 1992 GMC Vandura, 1992 GMC Value Van, and 1992 GMC Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Scan tester reading should closely match speedometer reading with drive wheels turning. If vehicle is equipped with an automatic transmission, check park/neutral switch adjustment. If no problem is found while using flow chart, see INTERMITTENTS in TESTS W/O CODES article in this section.

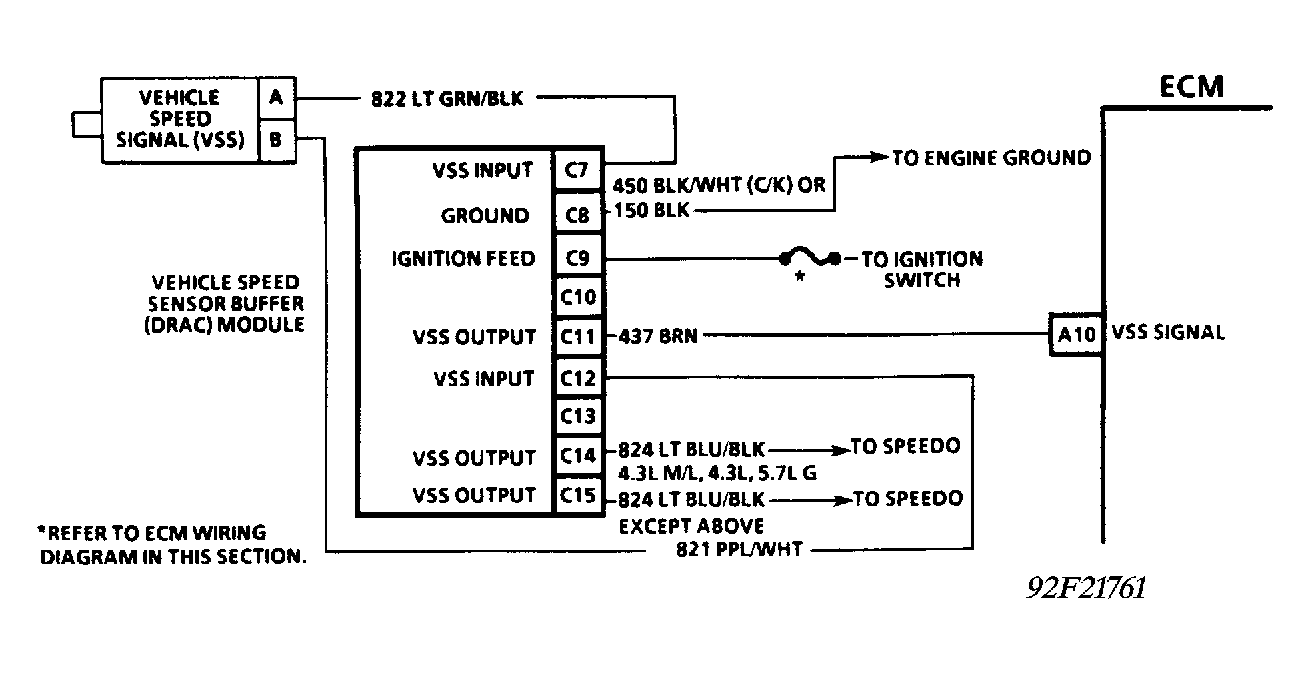

Fig 1: Code 24, Schematic, Vehicle Speed Sensor (VSS)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Code 24, Flow Chart, Vehicle Speed Sensor (VSS)

Courtesy of GENERAL MOTORS CORP.
