Fuel Shutdown Solenoid (Preliminary Check)

WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

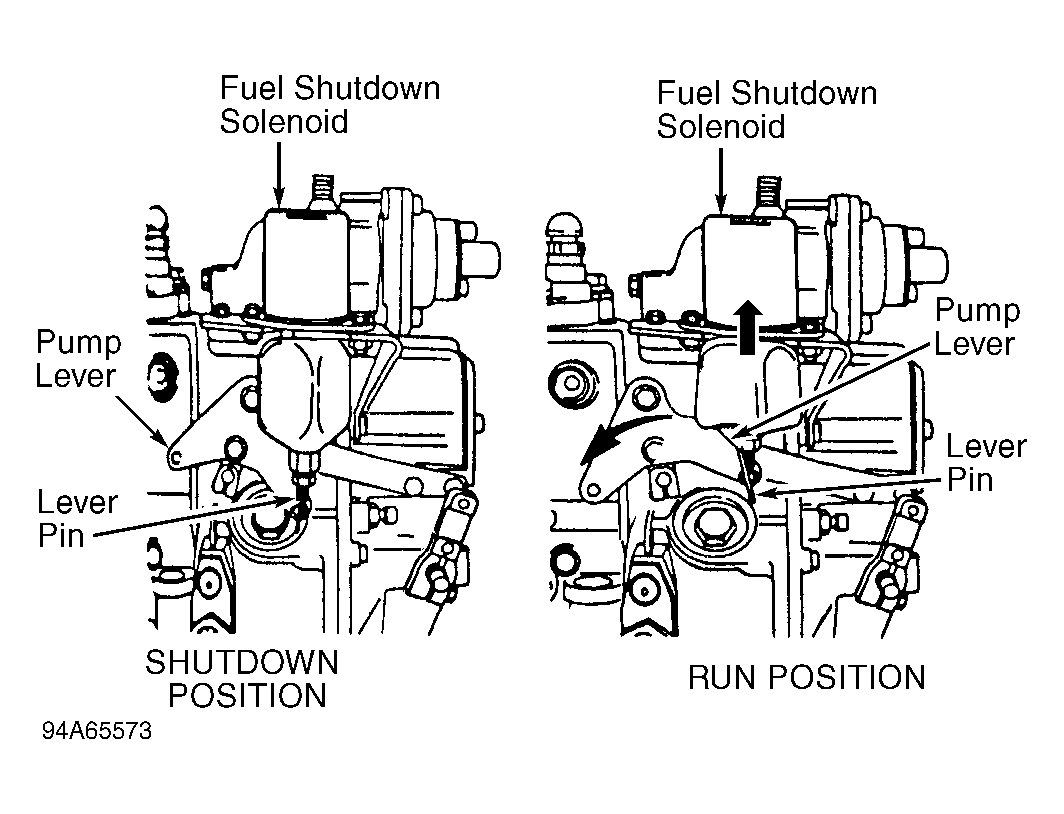

  1. Turn ignition off. Note that lever pin on fuel shutdown solenoid is extended downward and pump lever is in shutdown position. See Figure .
  2. Turn ignition switch to START position, then to ON position. Note that lever pin and pump lever move upward to the RUN position. See Figure . Release ignition switch from START position to the ON position. Ensure lever pin and pump lever remain in the RUN position.
  3. If solenoid operates as specified, solenoid and wiring are okay. If solenoid does not operate as specified, go to one of the following procedures as appropriate, depending on how solenoid lever pin operates.
