Fuel Transfer Pump (Fuel Volume)

WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect a Hand-Held Tachometer (3377462) to engine. At transfer pump, connect a rubber hose to output line that leads to fuel filter/water separator. Place other end of rubber hose in graduated container which measures ounces. While cranking engine for 30 seconds, note engine cranking RPM (DO NOT exceed 30 seconds; starter may be damaged).
  2. To determine fuel volume, use engine cranking RPM and fuel volume delivered. See Fig 1 . For example: if engine cranking speed was 250 RPM and fuel volume was 13.6 ounces, fuel volume would be okay, as this was above the flow line. If engine cranking speed was 250 RPM and fuel volume was 11.9 ounces, this would be an inadequate fuel volume, as this was below the flow line.
  3. If fuel volume is less than specified minimum, check for restricted fuel line. If fuel line is okay, replace transfer pump.

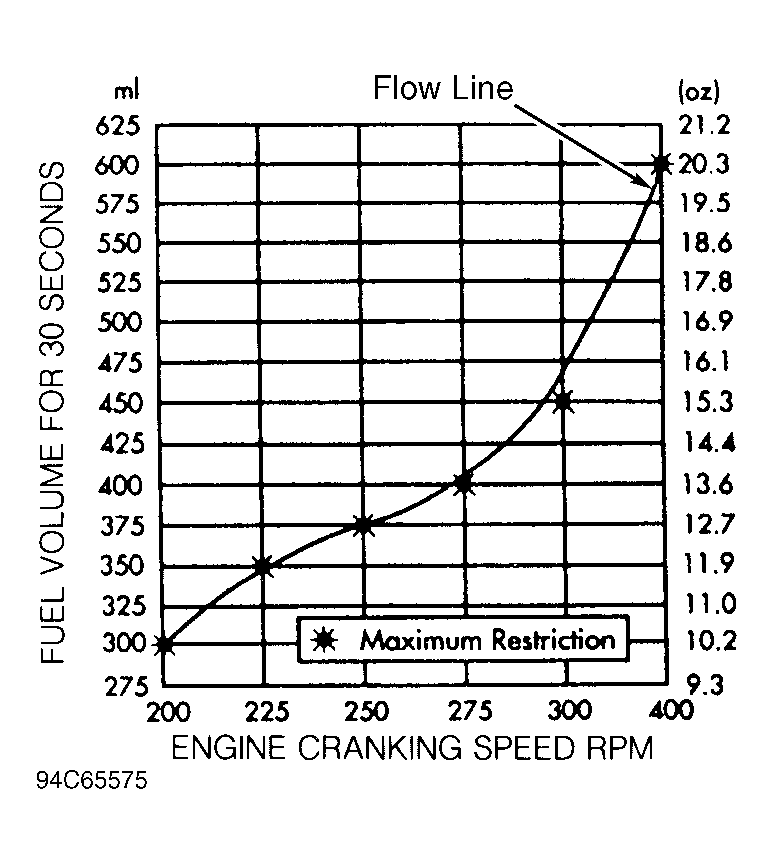

Fig 1: Determining Fuel Volume
G94C65575Courtesy of CHRYSLER CORP.
