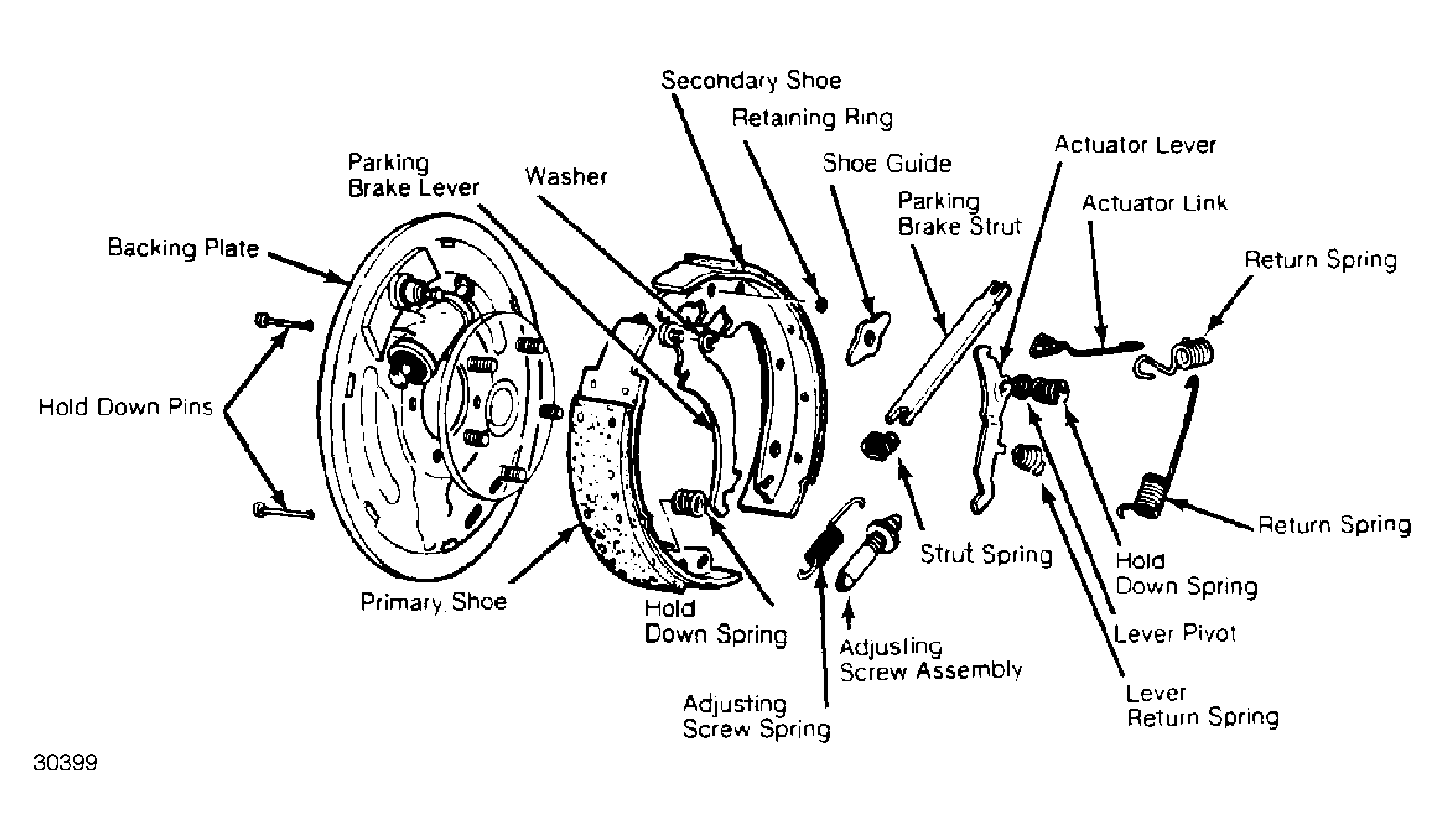

Drum Brake Shoe - Conventional Design
- Knock out lanced area in brake drum with a punch. If drum is installed, it must be removed and all metal removed from brake area.
- Turn adjusting screw, through hole, until brake shoes expand and brake drums can just be turned by hand. The drag should be equal at all wheels.
- Back off adjusting screw 30 notches at each wheel. If drum still drags, back off an additional 1 or 2 notches. Install hole cover in drum.
