Automatic Transmission System Hydraulic Diagrams

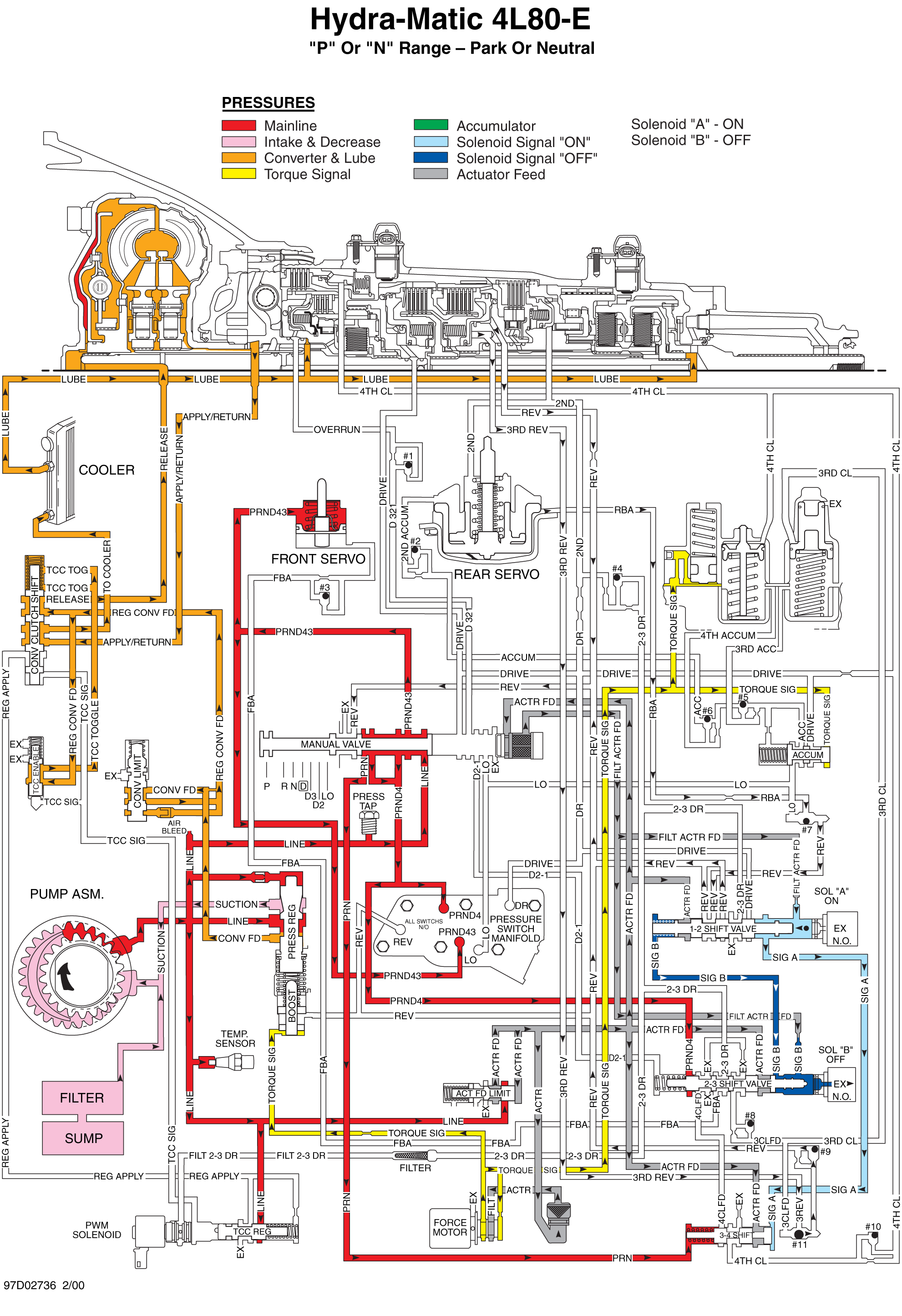

Fig 1: "P" Or "N" Range - Park Or Neutral

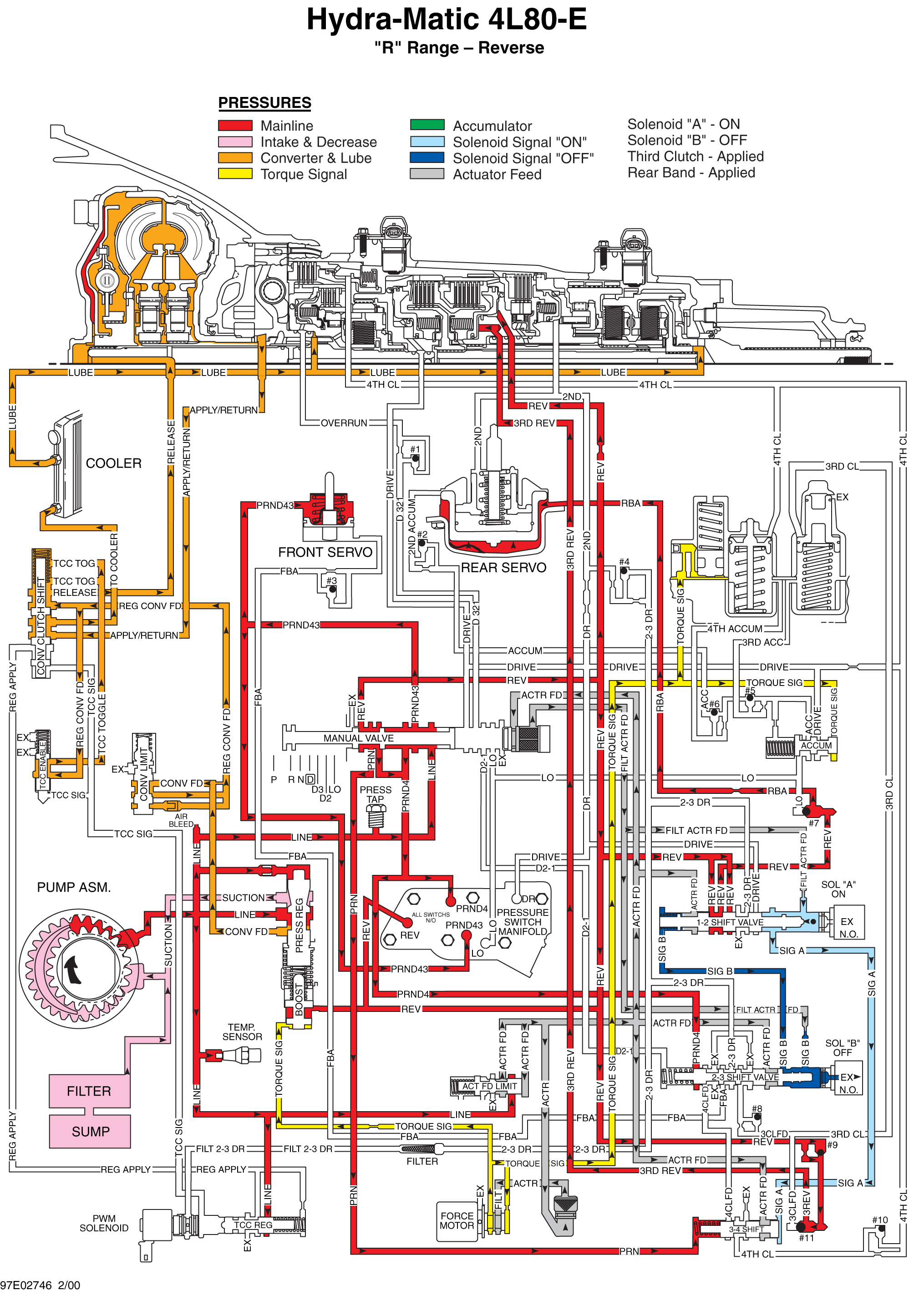

Fig 2: "R" Range - Reverse

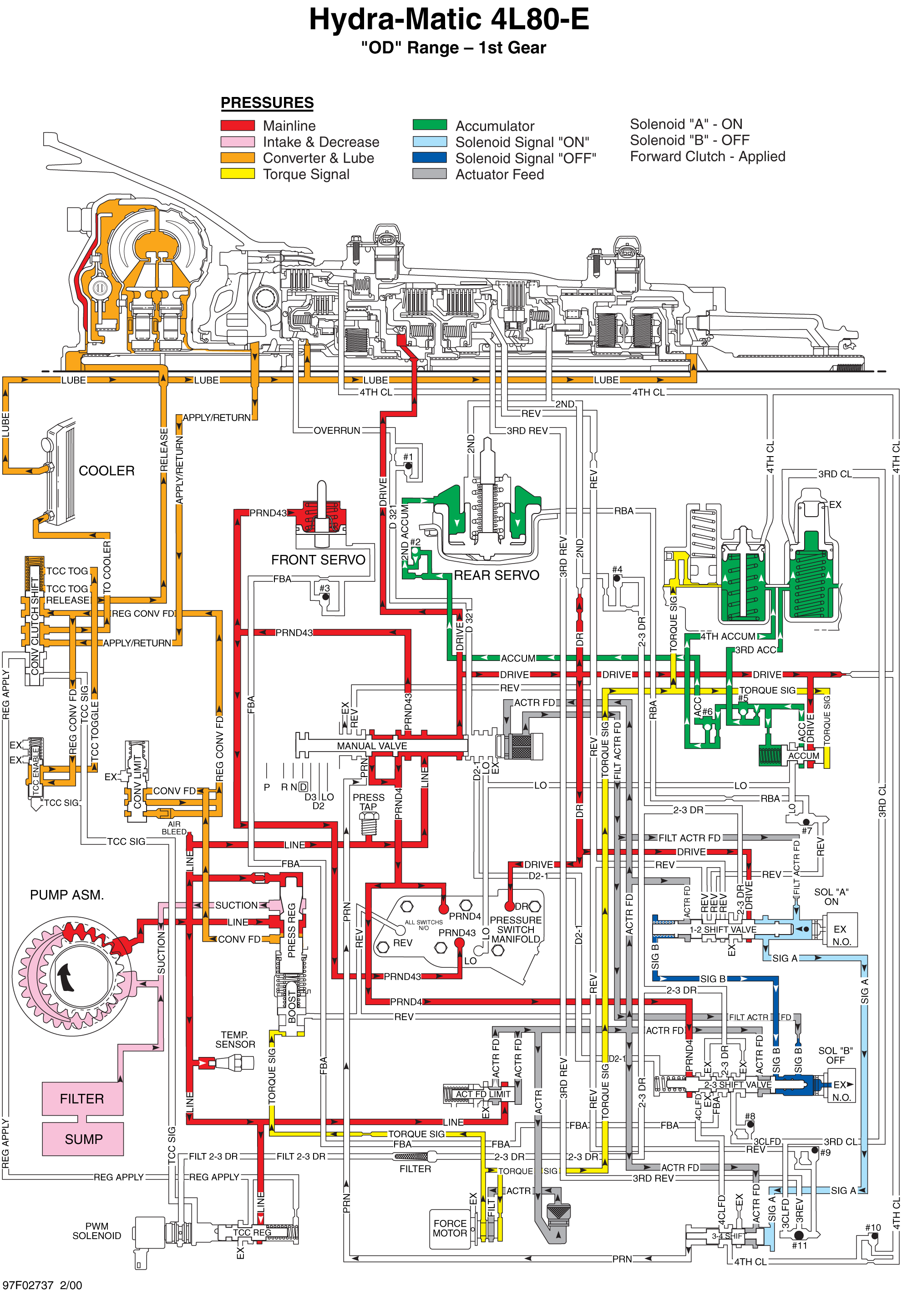

Fig 3: "OD" Range - 1st Gear

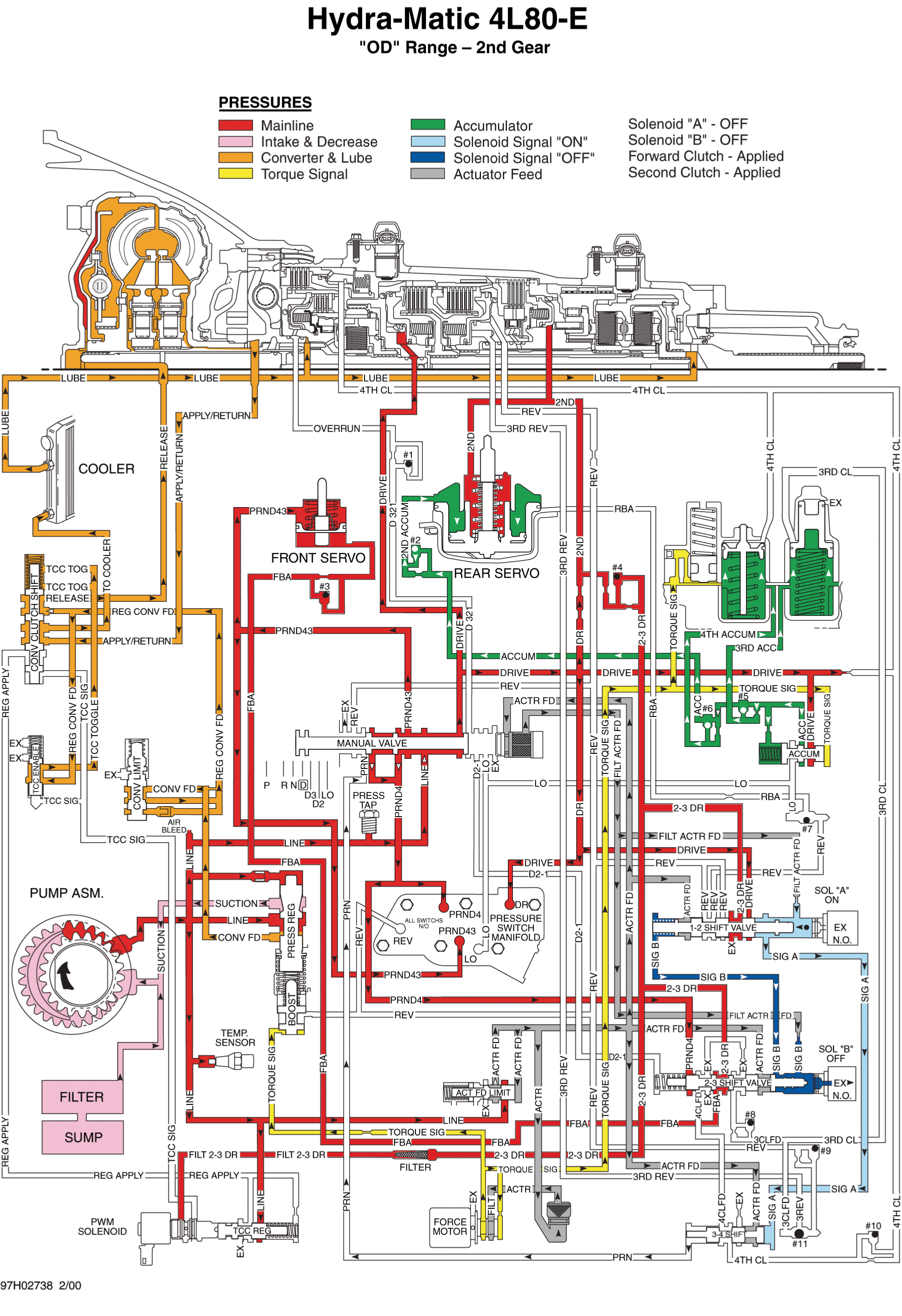

Fig 4: "OD" Range - 2nd Gear

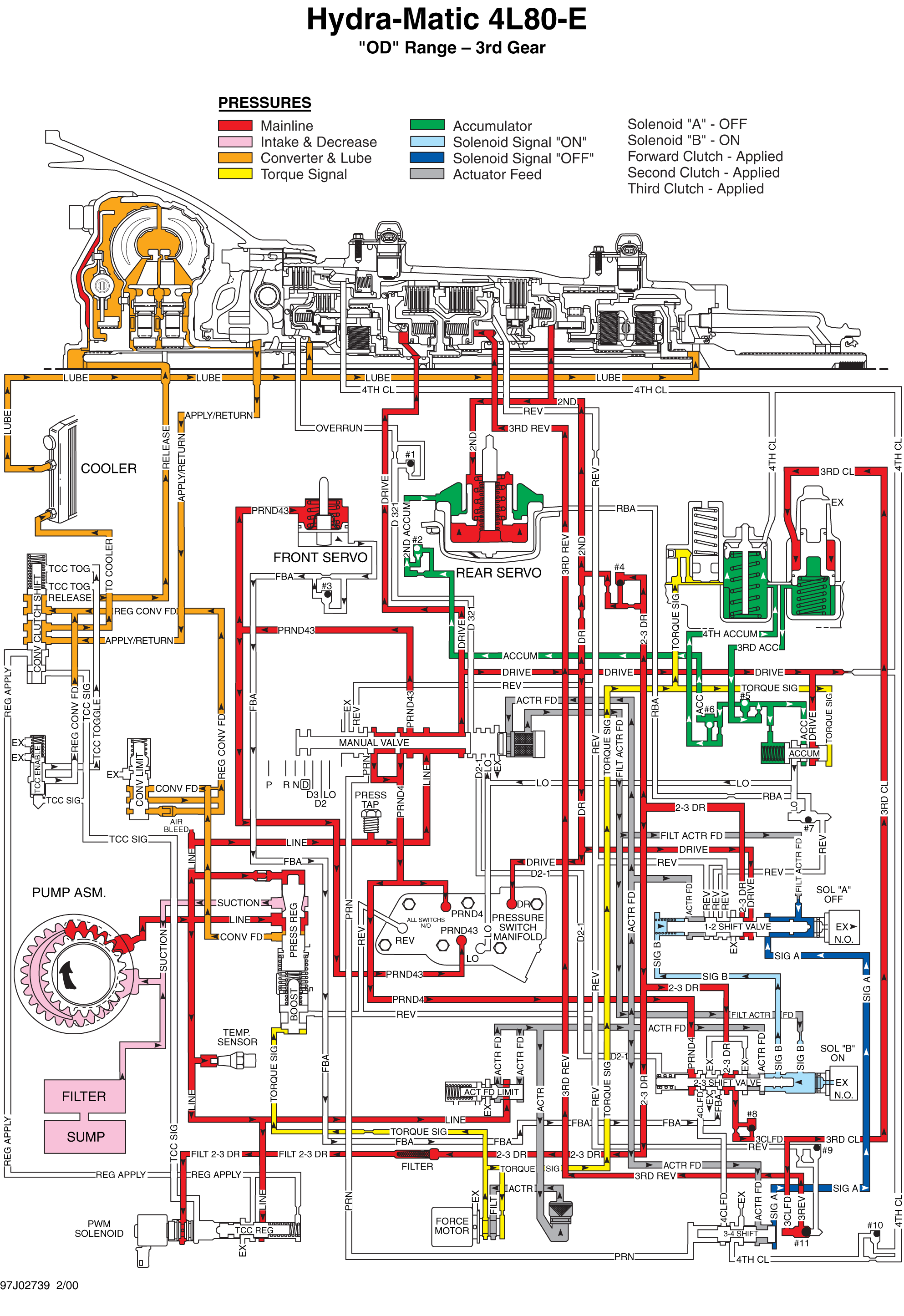

Fig 5: "OD" Range - 3rd Gear

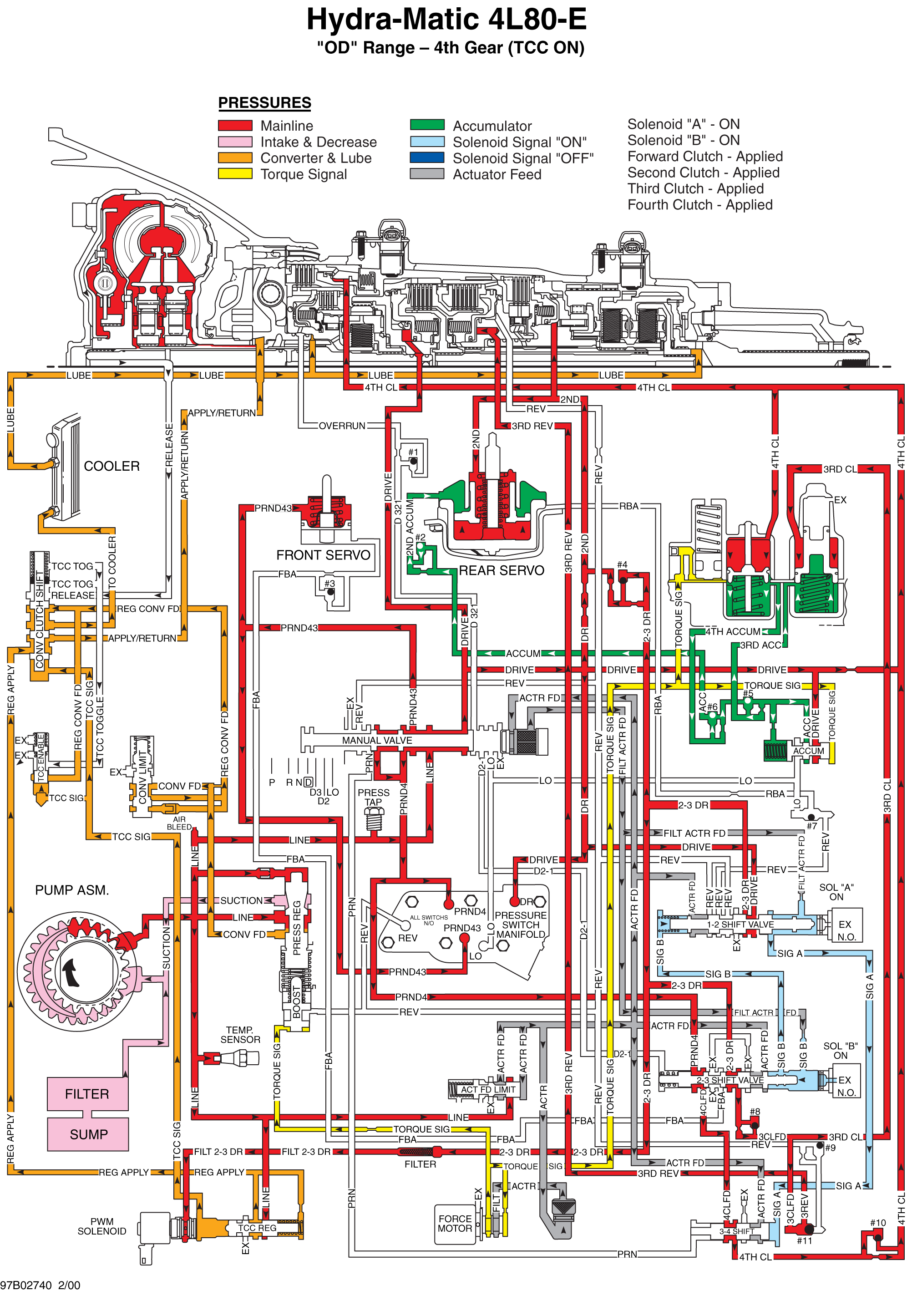

Fig 6: "OD" Range - 4th Gear (TCC ON)

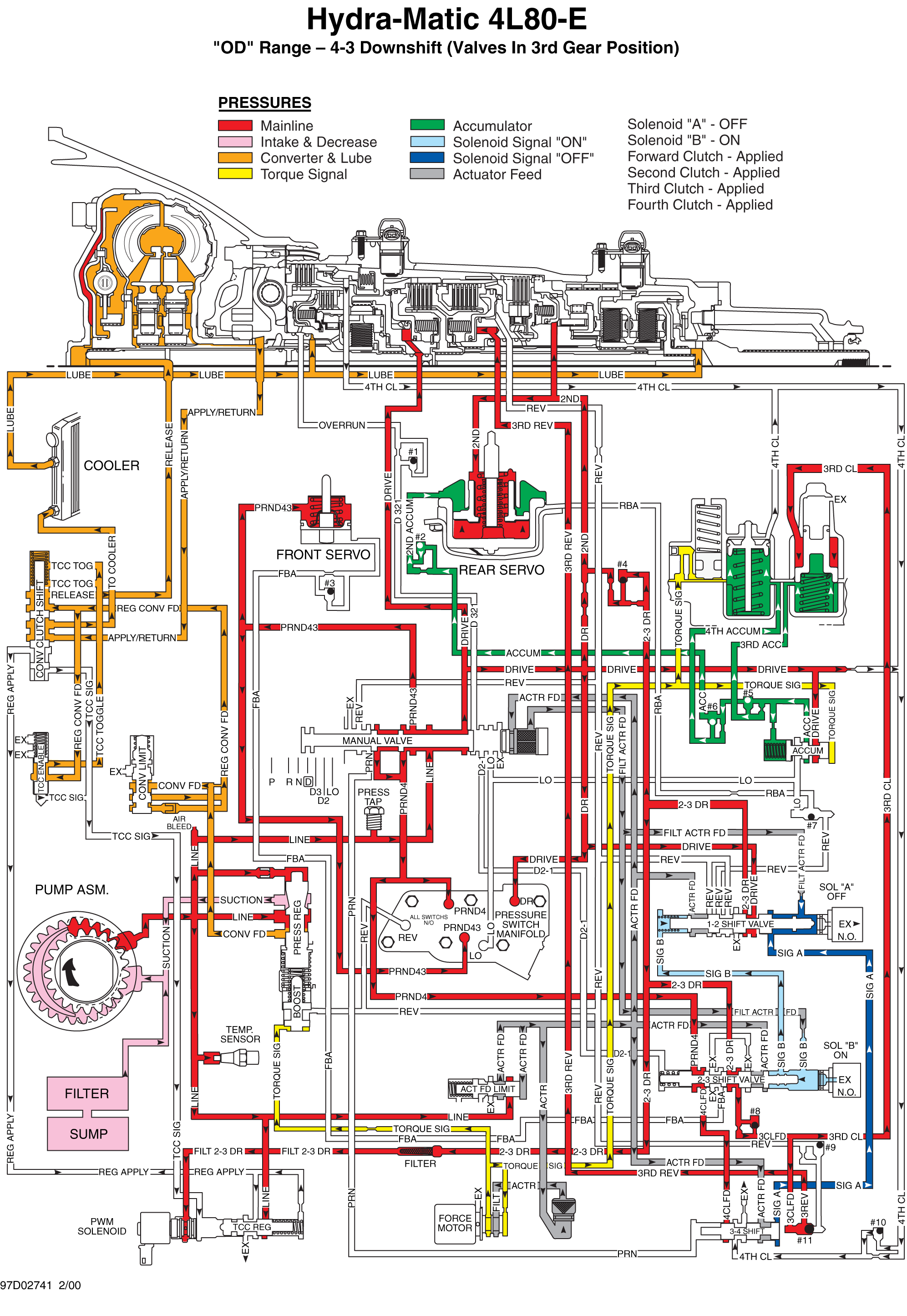

Fig 7: 4-3 Downshift (Valves In 3rd Gear Position)

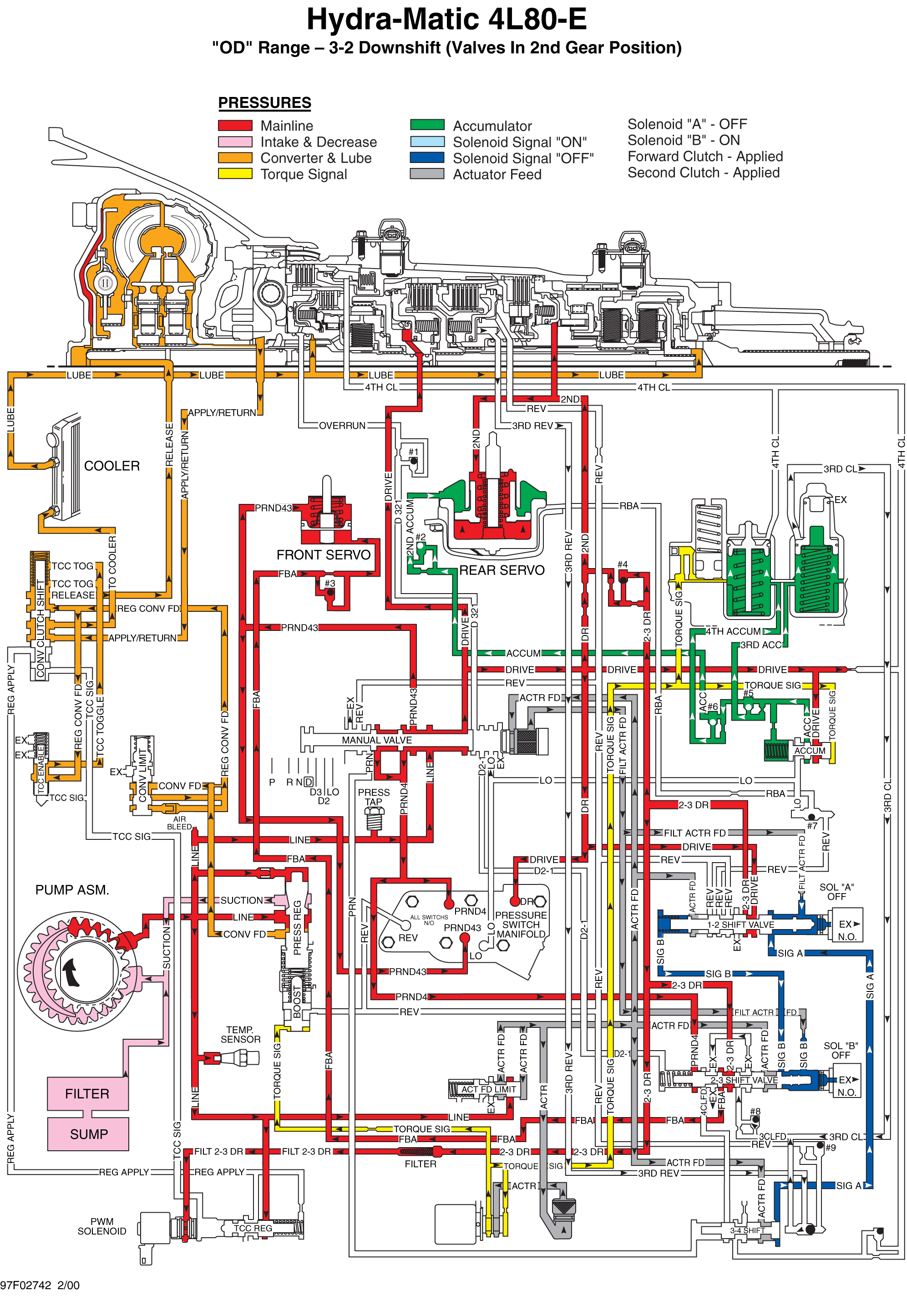

Fig 8: 3-2 Downshift (Valves In 2nd Gear Position)

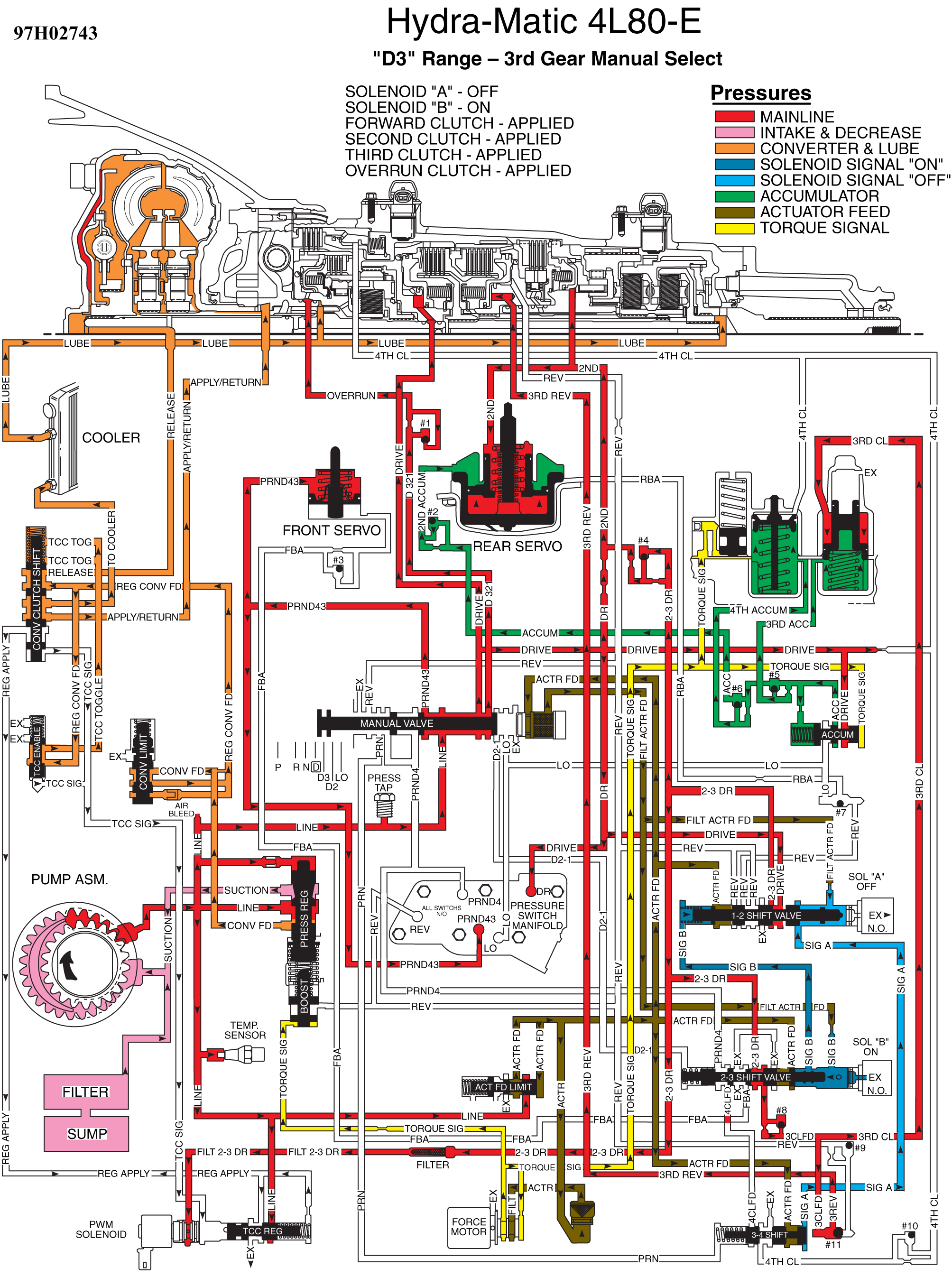

Fig 9: "3" Range - 3rd Gear (Manual Select)

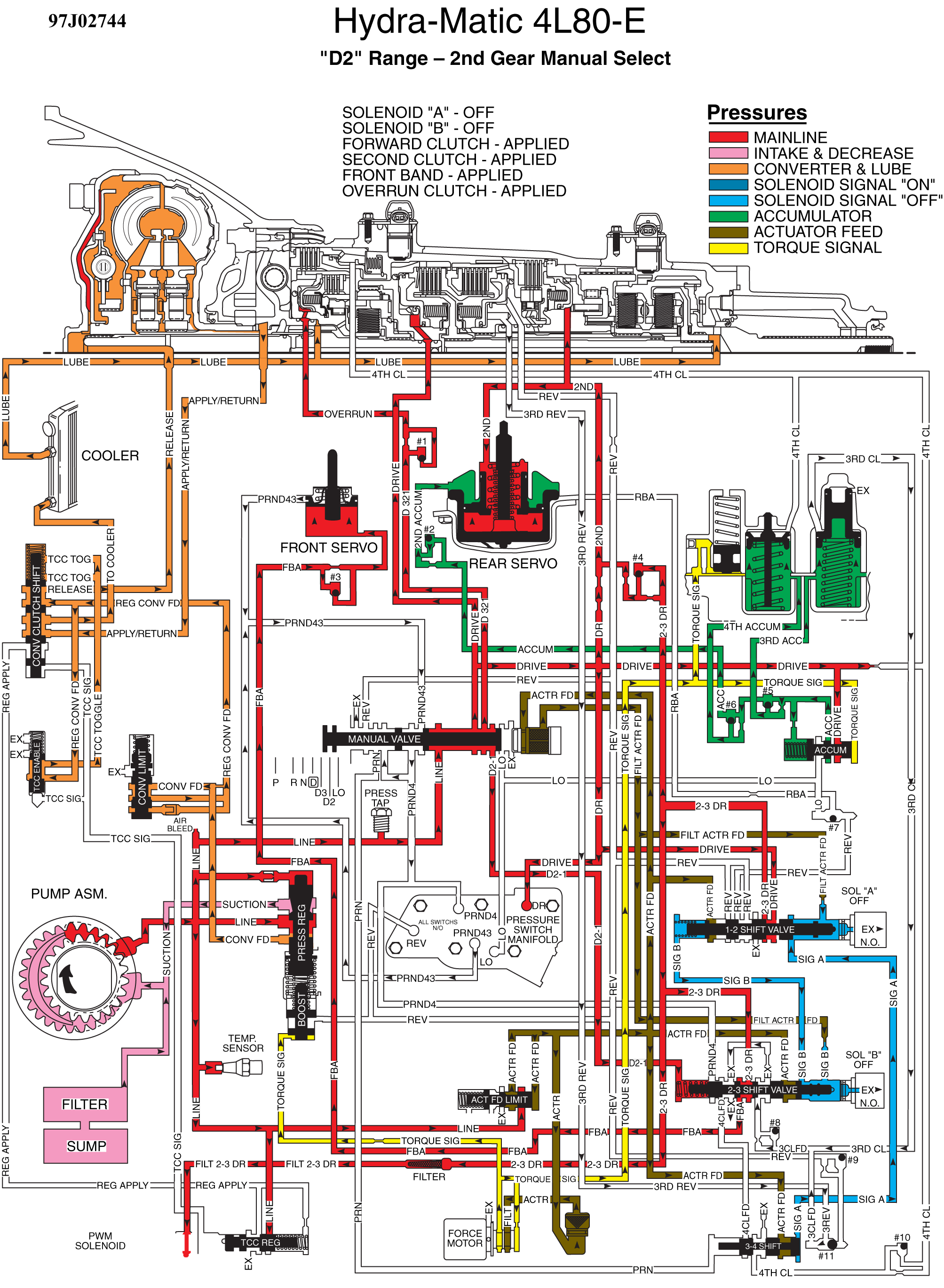

Fig 10: "2" Range - 2nd Gear (Manual Select)

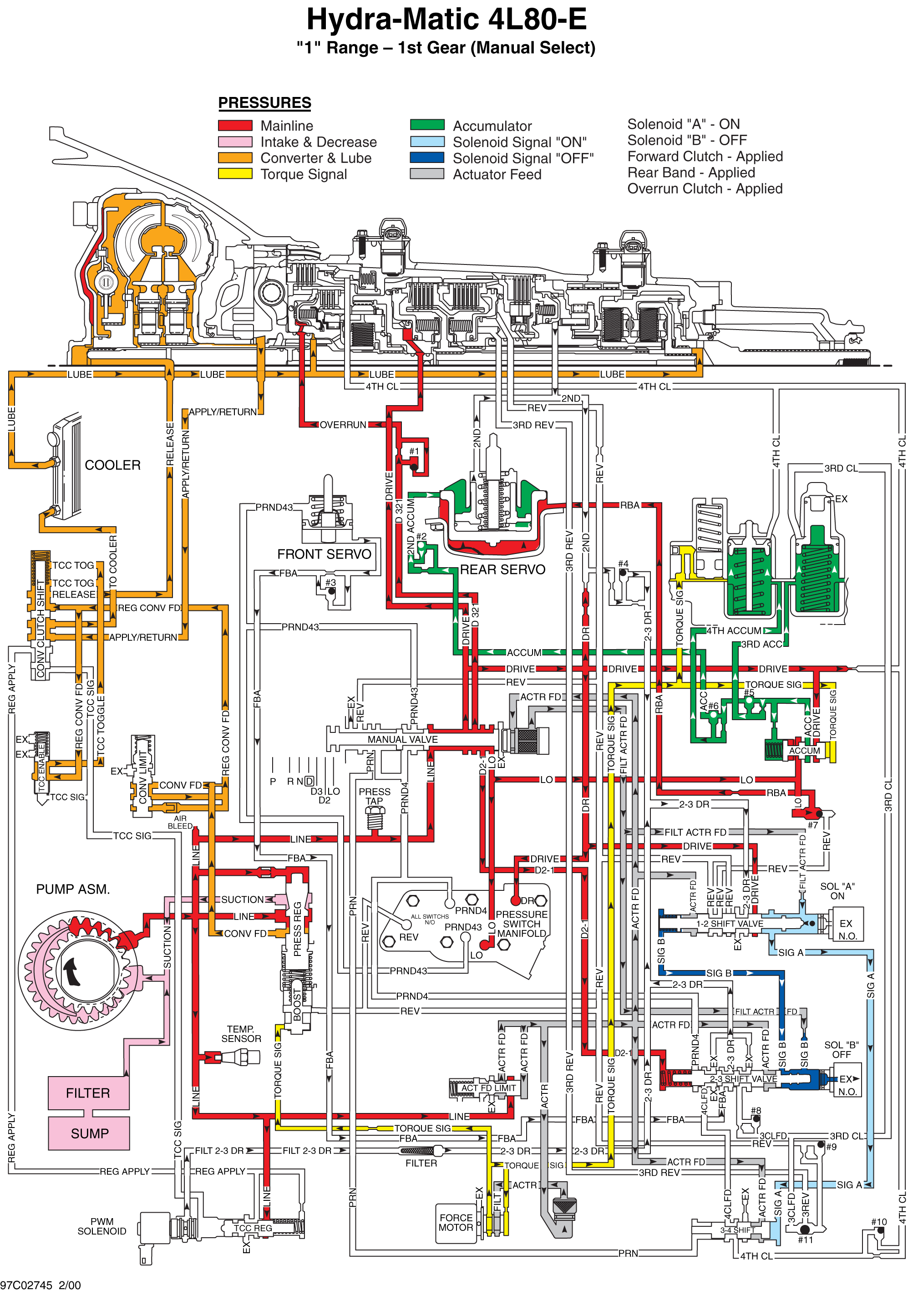

Fig 11: "1" Range - 1st Gear (Manual Select)
