Diagnostic Aids

A faulty or misadjusted park/neutral switch may set a false Code 24. Use "Scan" tester and check for proper signal in Drive, while wiggling shifter.

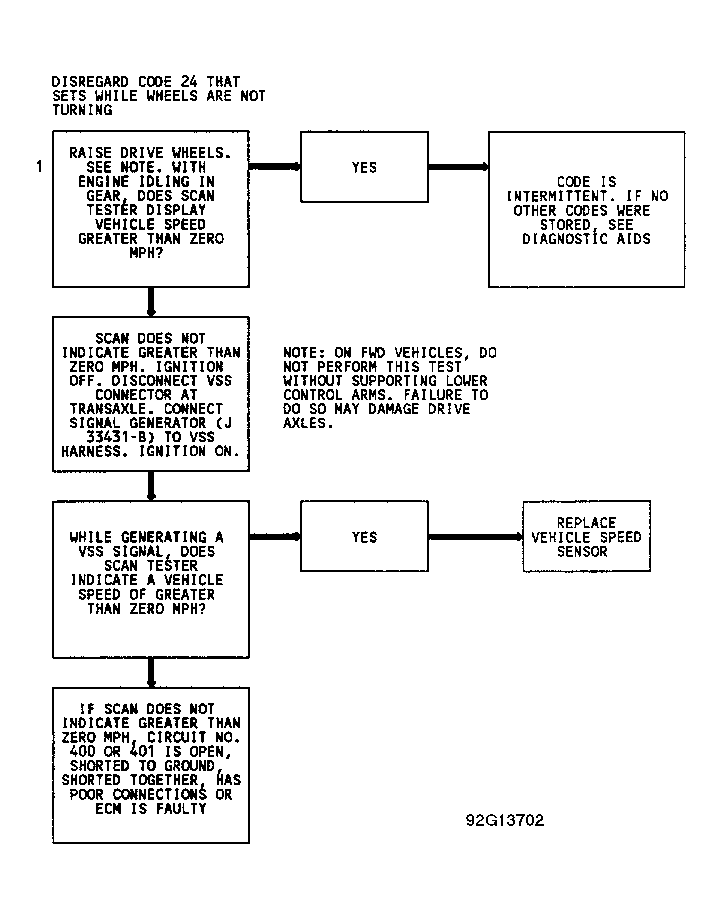

Fig 1: Code 24 Troubleshooting Diagram (2.2L J Body - 1991)
G92G13702Courtesy of GENERAL MOTORS CORP.
