Diagnostic Aids

Check transmission pass-through connector and PCM/TCM for poor connections.

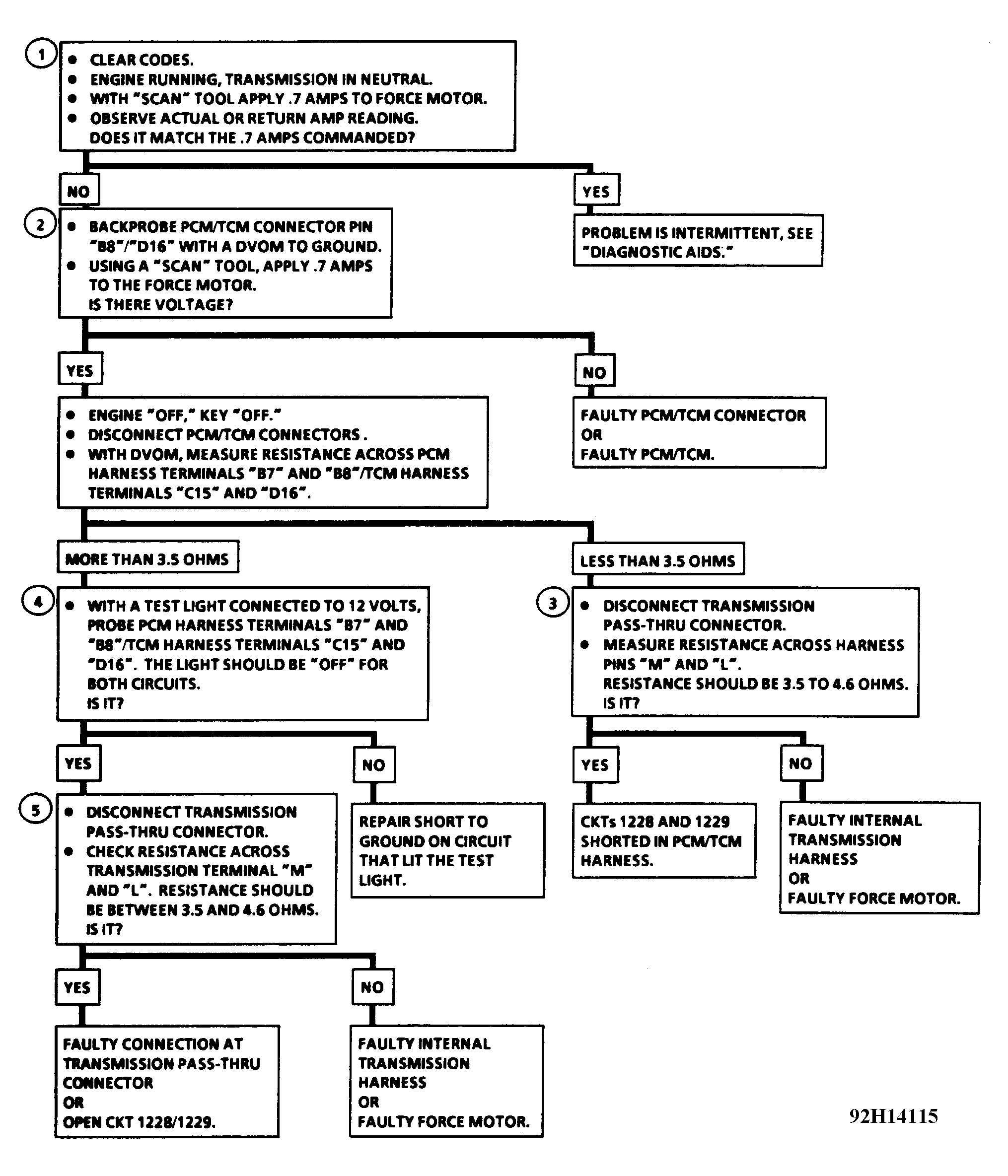

Fig 1: Code 73 Troubleshooting Diagnostic Flow Chart

G92H14115

Courtesy of GENERAL MOTORS CORP.
