Diagnostic Aids

Clear codes. If Code 39 reappears, problem may be inside torque converter or transmission. Code 39 will only set in 3rd gear.

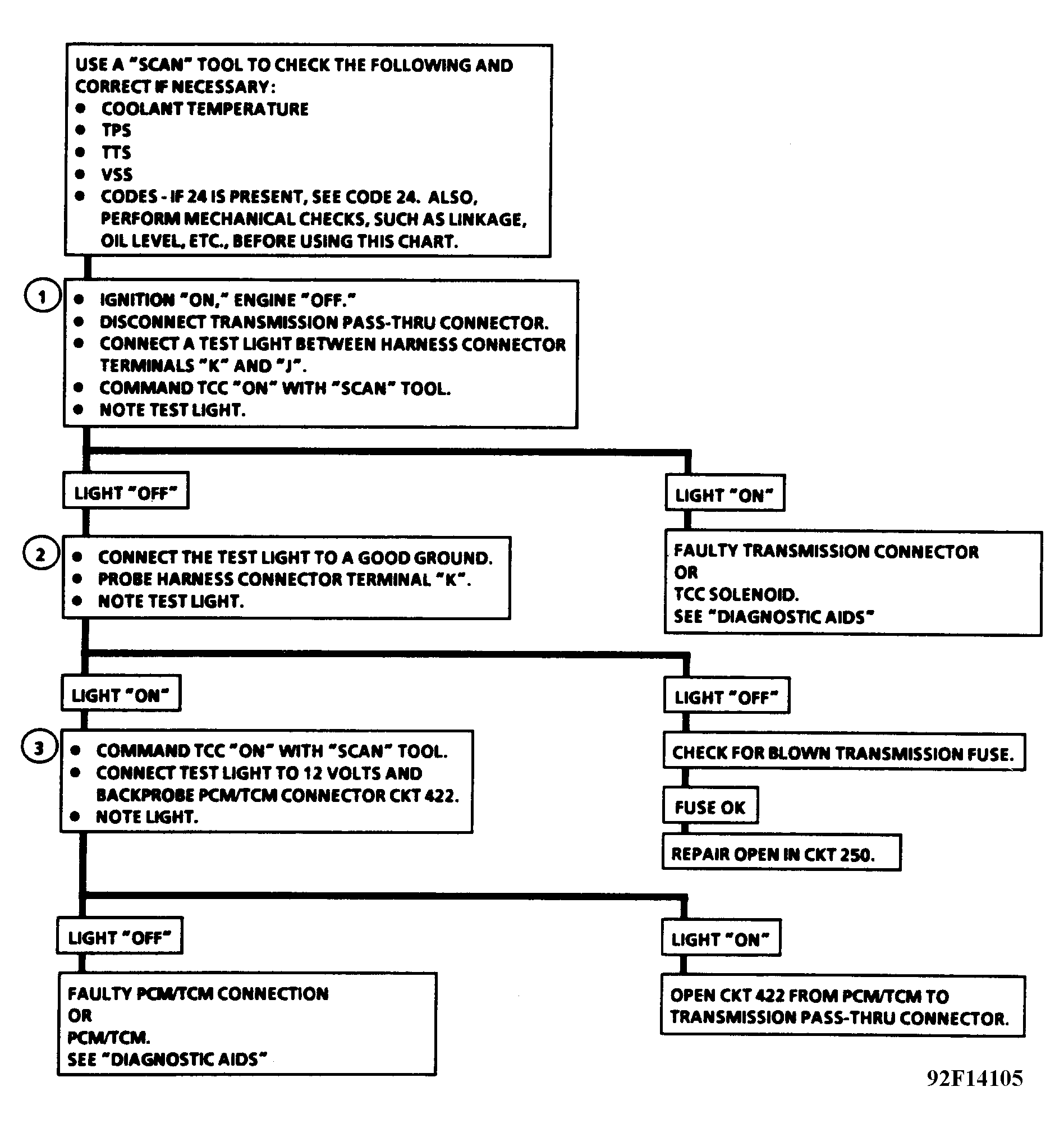

Fig 1: Code 39 Troubleshooting Diagnostic Flow Chart
G92F14105Courtesy of GENERAL MOTORS CORP.
