Diagnostic Aids

Using "Scan" tool, check for proper signal in Drive while wiggling wiring. Ensure all connectors are good. Very carefully check the pass-through connector at transmission.

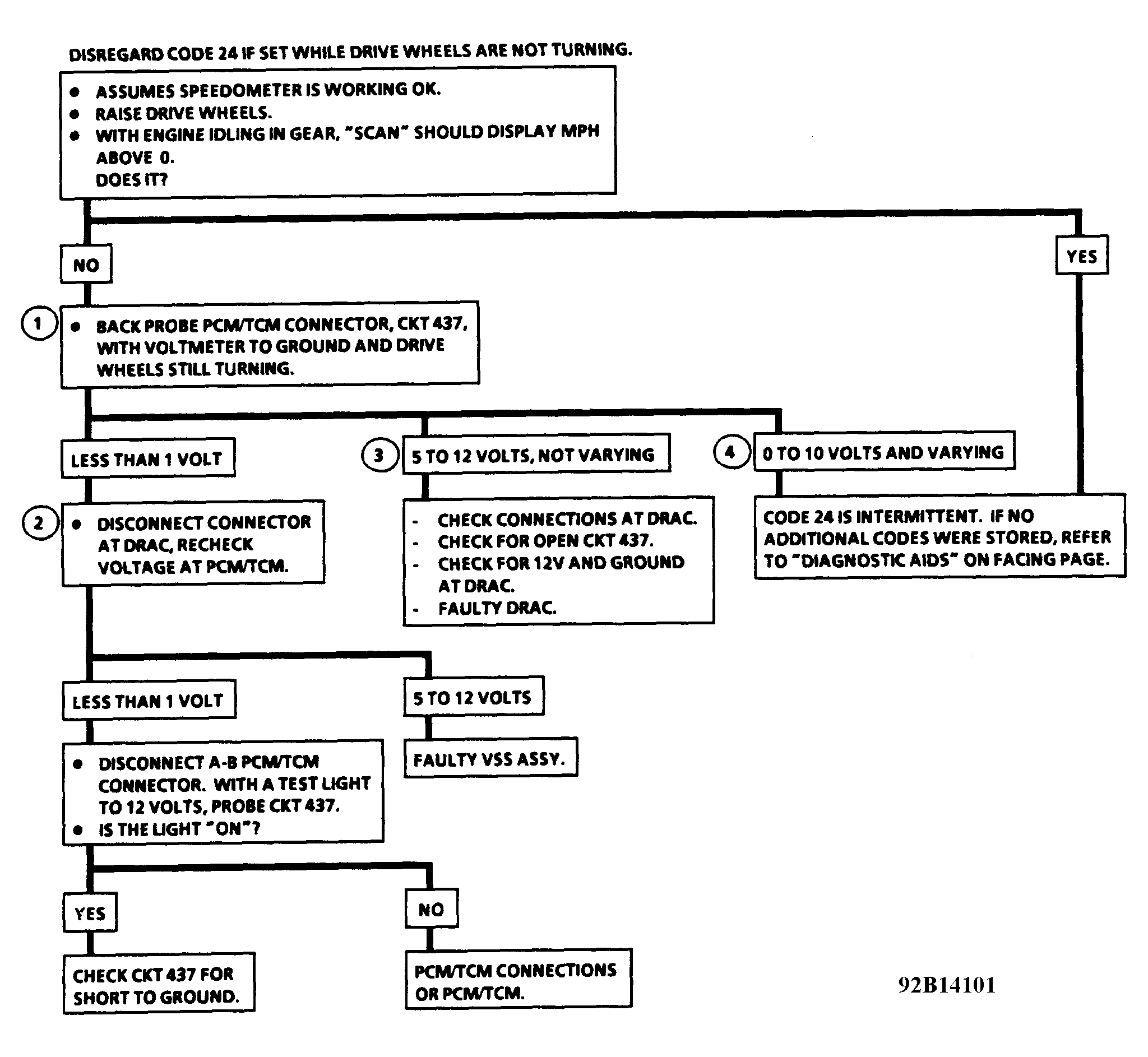

Fig 1: Code 24 Troubleshooting Flow Chart (1992 2WD)
G92B14101Courtesy of GENERAL MOTORS CORP.
