Diagnostic Aids

Check transmission pass-through connector and PCM/TCM for poor connections. TCC solenoid is pulse width modulated (frequency controlled) and will allow some slight slippage.

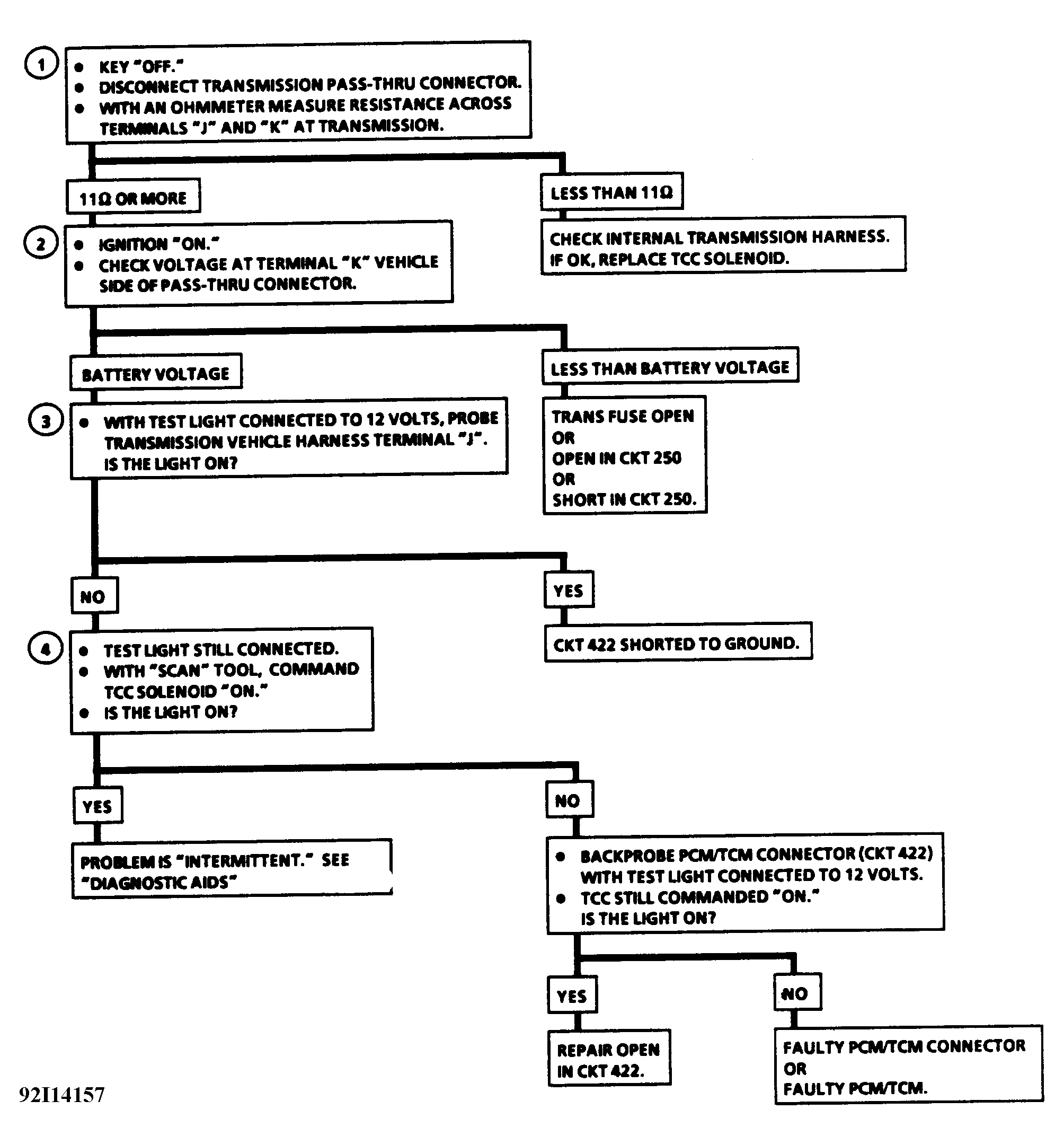

Fig 1: TCC Circuit Check Diagnostic Flow Chart
G92I14157Courtesy of GENERAL MOTORS CORP.
