Diagnostic Aids

Ensure all connectors are good. Very carefully check the pass-through connector at transmission. If input sensor is not working at start-up, output sensor will read zero.

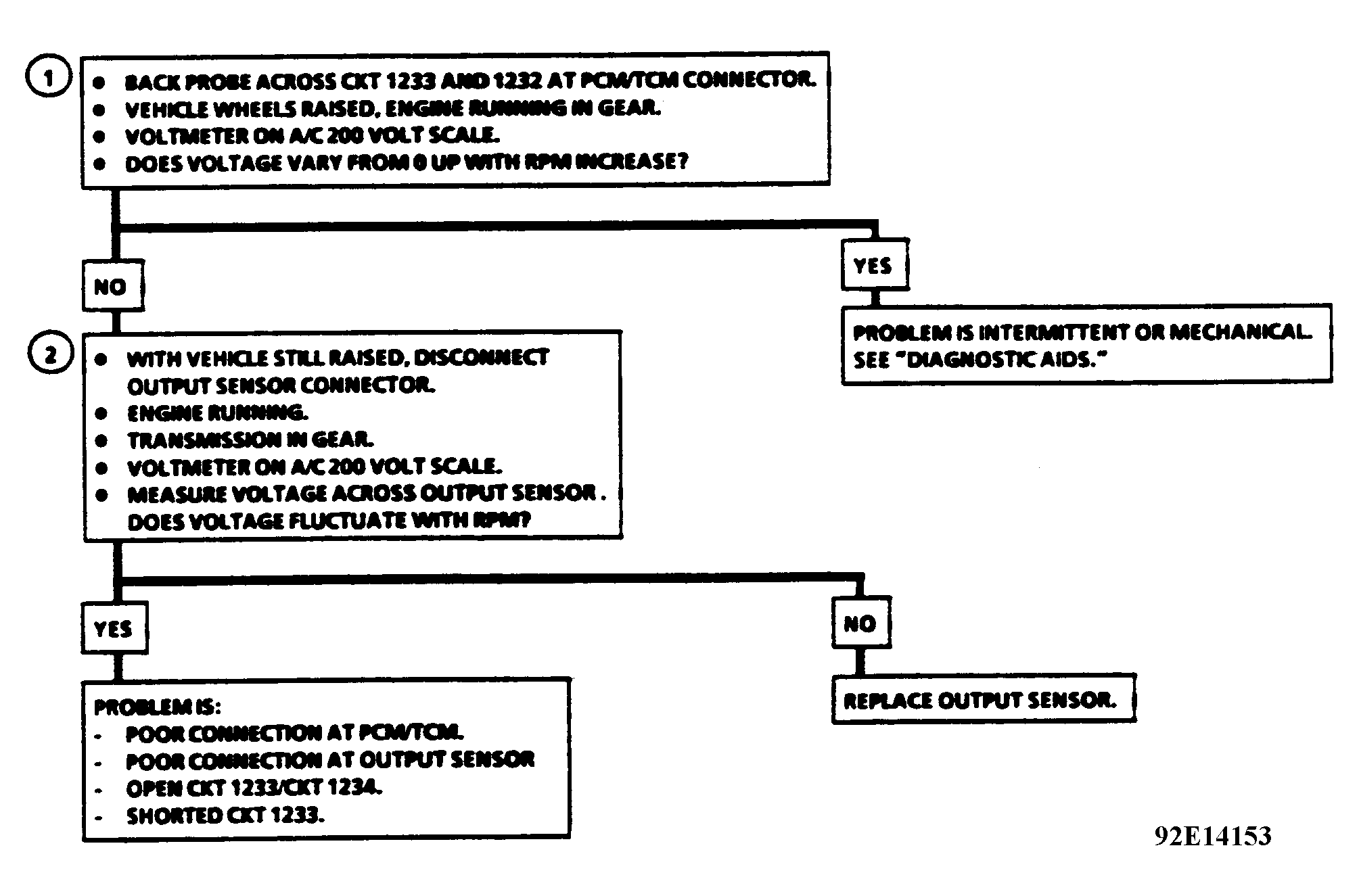

Fig 1: Output Speed Sensor Diagnostic Flow Chart (4WD)
G92E14153Courtesy of GENERAL MOTORS CORP.
