Lower Ball Joint: Installation

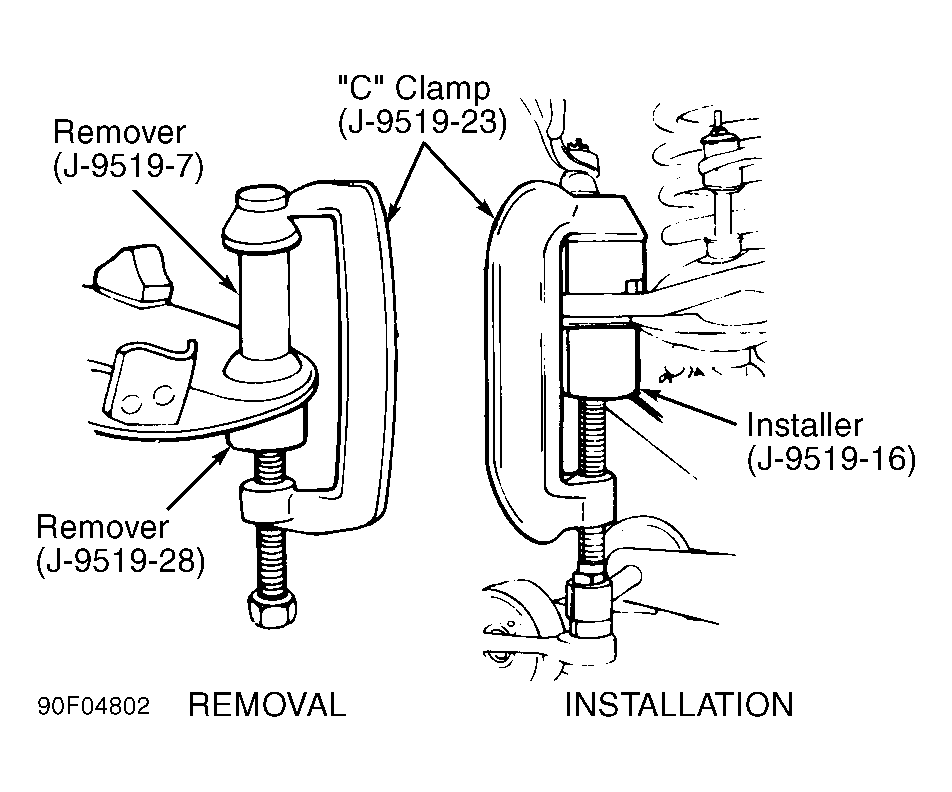

Assemble the "C" Clamp (J-9519-30 ) and Installer (J-9519-16 ) from ball joint remover/installer set. See Fig 1. Reverse removal procedure to install. Ensure bleed vent in rubber boot is facing forward. Install grease fitting and lubricate new ball joint with chassis lubricant.
