Engine Compartment & Headlights Wiring Diagram

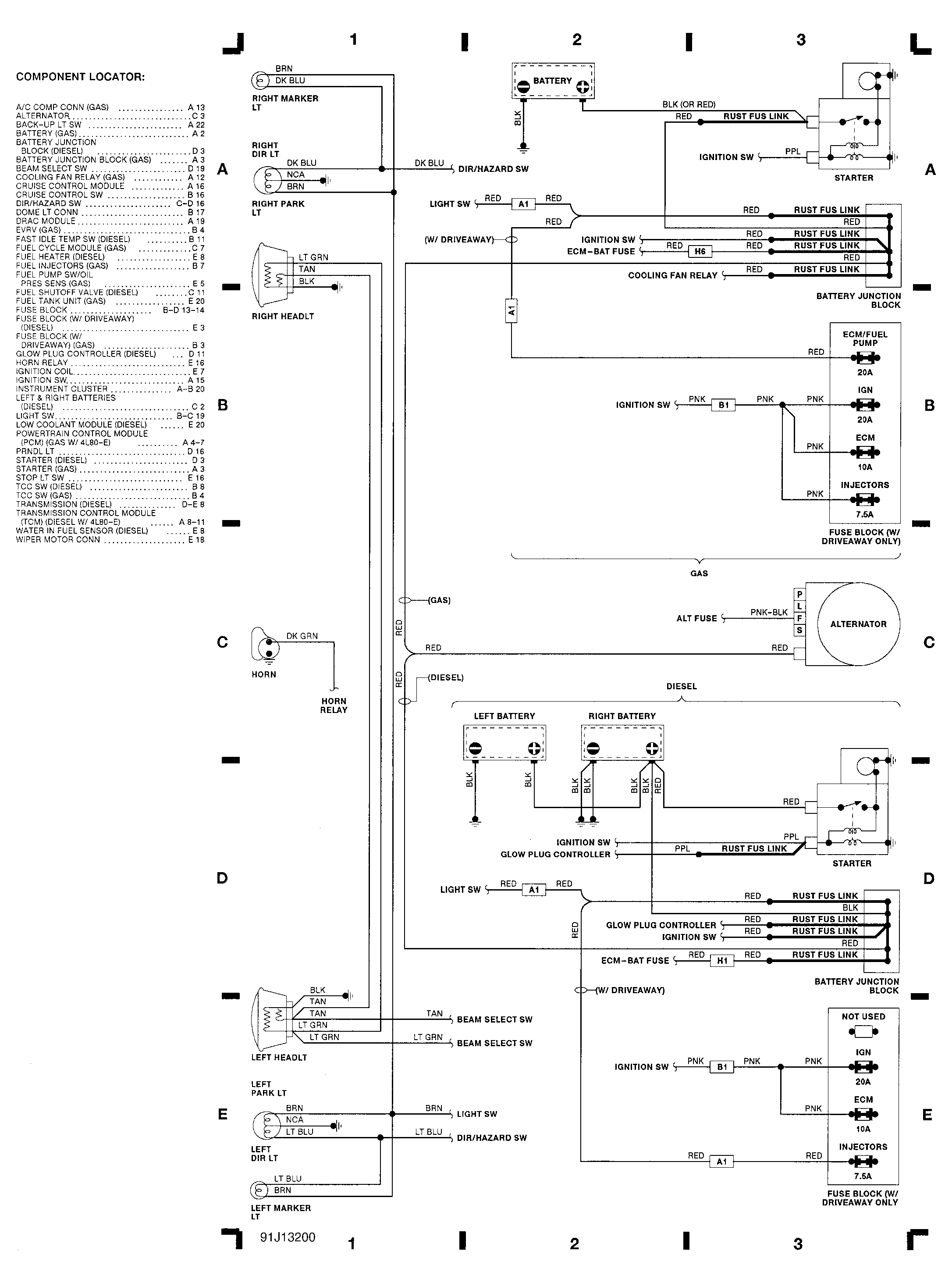

Fig 1: Engine Compartment & Headlights (Grids 1-3)

G91J13200
