Passenger Compartment & Taillights Wiring Diagram

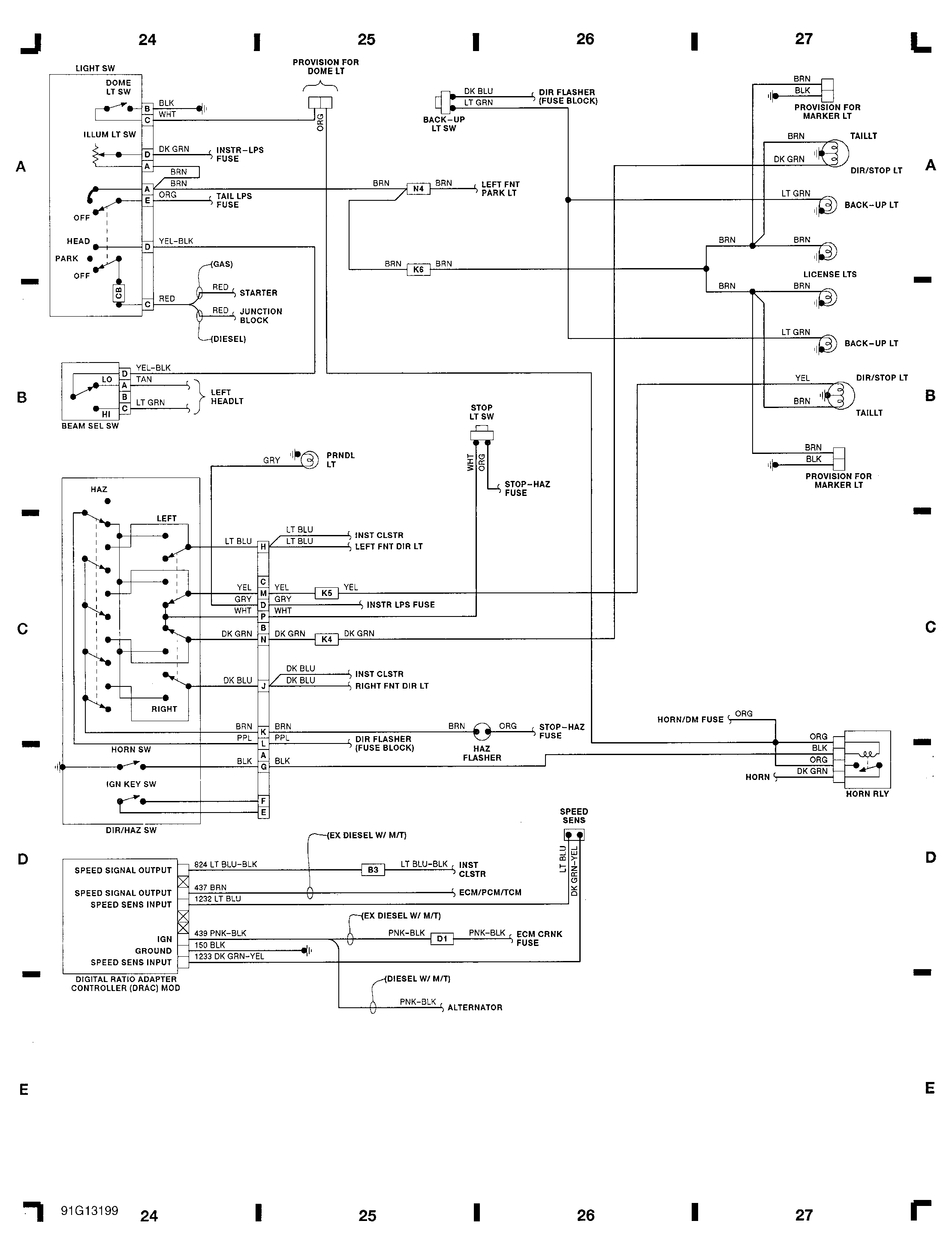

Fig 1: Passenger Compartment & Taillights (Grids 24-27)

G91G13199
