Serpentine Drive Belt Routing (4.3L, 5.0L & 5.7L)

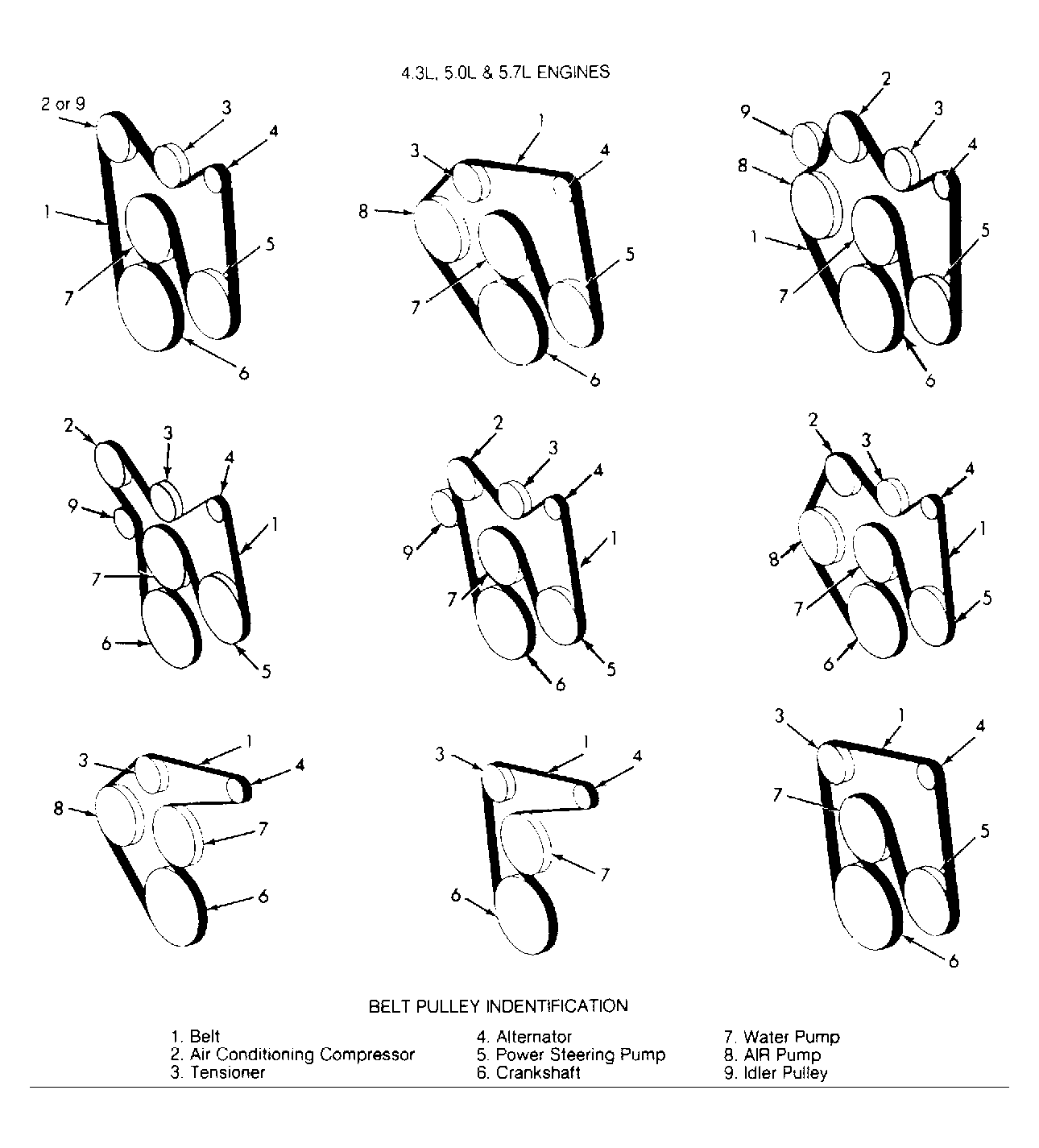

Fig 1: Serpentine Drive Belt Routing (4.3L, 5.0L & 5.7L)

G90B04782

Courtesy of GENERAL MOTORS CORP.
