Flange Alignment & RUNOUT
- All flanges must be perpendicular in both vertical and horizontal planes to engine crankshaft. Only exception is "broken back" type driveline, which has flanges that are not perpendicular in vertical plane. See Fig 1.
- With nonparallel or "broken back" type installation, working angles of universal joints of a given drive shaft should be equal. Angle "A" = angle "B".
- This is calculated as follows: angle of output shaft centerline is subtracted from angle of drive shaft. Difference should equal angle of drive shaft subtracted from pinion shaft angle.
- Parallel type joints maintain constant velocity between output shaft and pinion shaft. Vibration is minimized and component life maximized when universal joints are parallel.
- Using dial indicator, measure runout of transmission flange, center bearing flange and pinion flange. If runout exceeds .003-.005" (.08-.13 mm), replace flange.
- If dial indicator cannot be used, push rod with snug fit through flange bearing bore. See if it aligns with opposite flange bore. If not, replace flange. See Fig 2.
- Rotate transmission flange until it is vertical, measuring from side. Check center bearing and pinion flanges. They cannot be more than one degree off vertical. See DRIVE SHAFT PHASING .
- Rotate transmission flange until it is vertical, measured from side. Measure angle from end and record it. Check all other flanges for same angle. They must be within 1/2 degree of each other. Adjust as required.

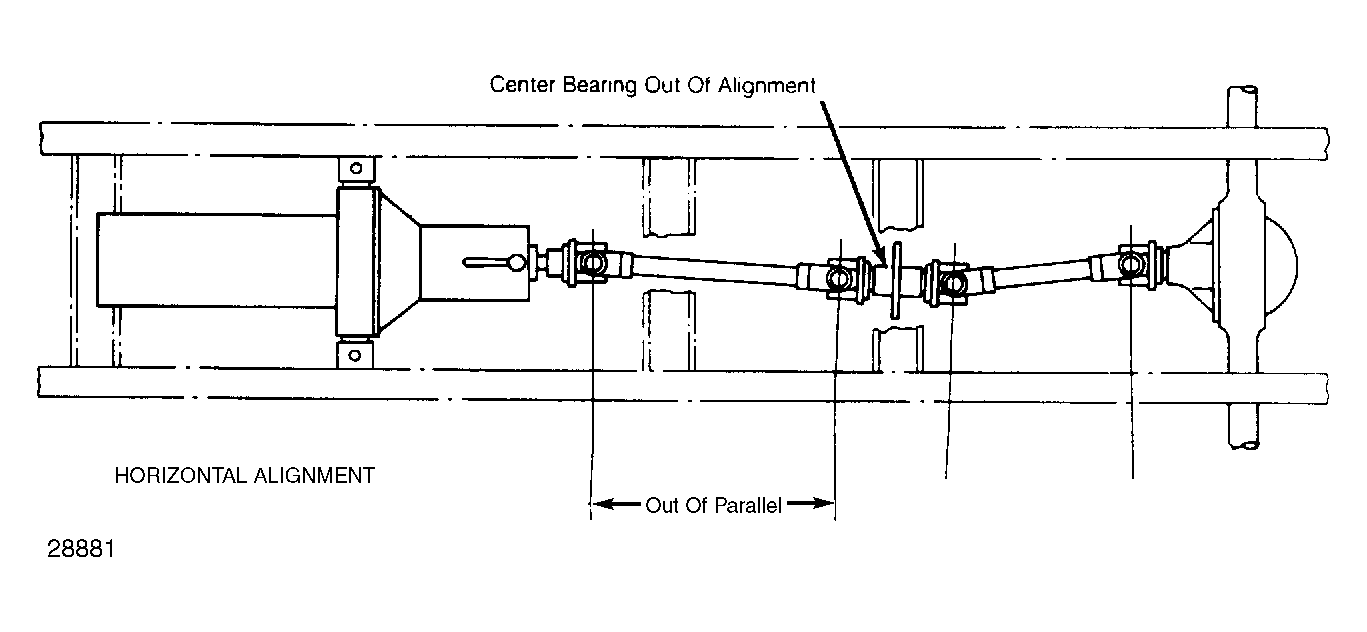

- If difficulty is encountered when making these adjustments, horizontal alignment should be checked. Even though vertical alignment is correct, horizontal alignment can be badly out of adjustment. This is often found after major component replacement or repair of serious accident damage. See Fig 3.
- To make horizontal alignment checks, set up straightedges. See Fig 4. Set transmission output flange horizontal and clamp straightedge to flange in a horizontal plane. Repeat procedure with drive pinion flange. Ensure that flanges are horizontal by checking angle of straightedge with spirit level.
- Using straightedge that is 12" (305 mm) longer than width of rear wheel track at 90 degrees, clamp to frame side rails. Use large framing squares to align straightedge with side rails.
- Measure distance "X" at each side. If both measurements are not within 1/16" (1.6 mm) of each other, transmission flange is horizontally misaligned. See Fig 4.
- Measure distance "Y" (edge of straightedge to axle shaft centerline) at each side. If 2 dimensions are not within 1/8" (3.2 mm) of each other, axle housing is misaligned.
- Measure distance "W" at each side. If both measurements are not within 1/16" (1.6 mm) of each other, pinion flange is horizontally misaligned.
