Home >> GMC >> 1990 >> Safari Van M L4-151 2.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Actuators and Solenoids - A/T >> Torque Converter Clutch Solenoid >> Locations

Torque Converter Clutch Solenoid: Locations

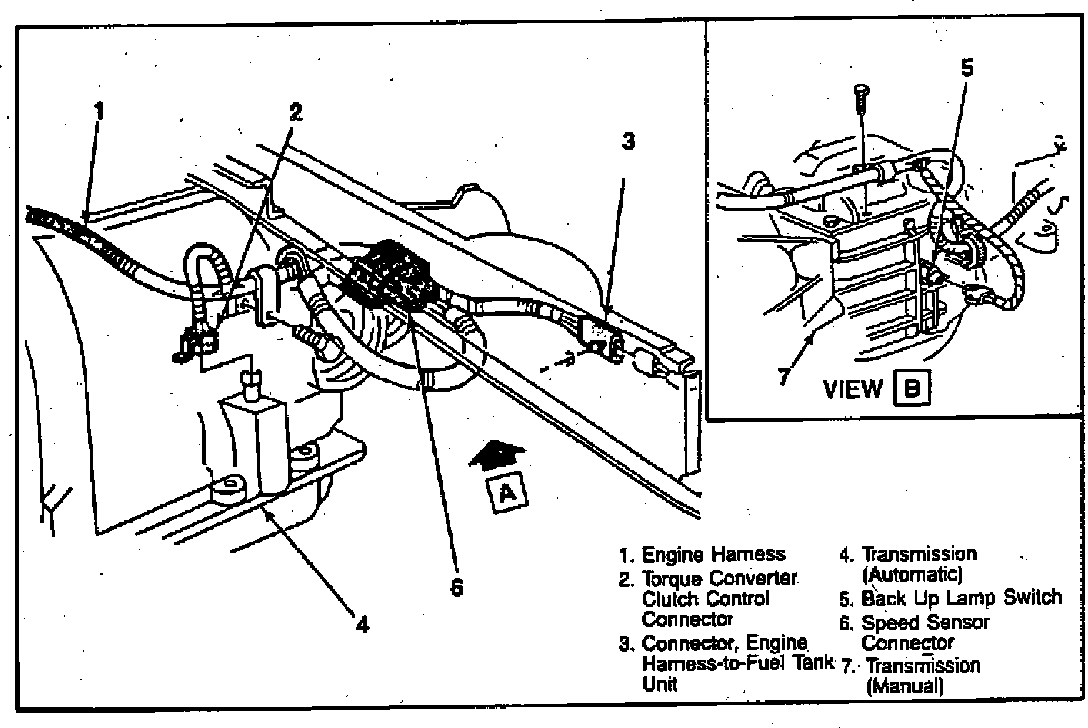

LH Rear Of Transmission:




LH Side Of Transmission
