Power Door Lock Switch: Locations

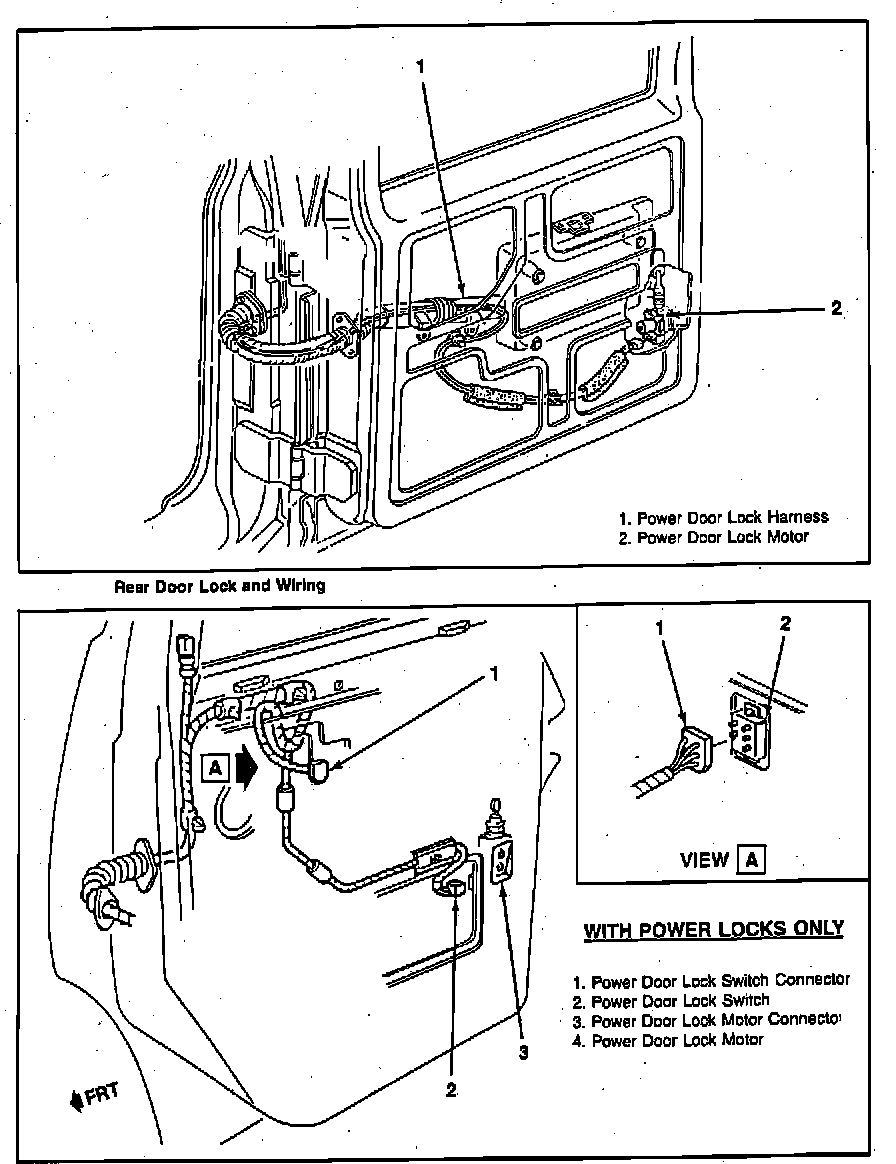

Front & Rear Door Components:

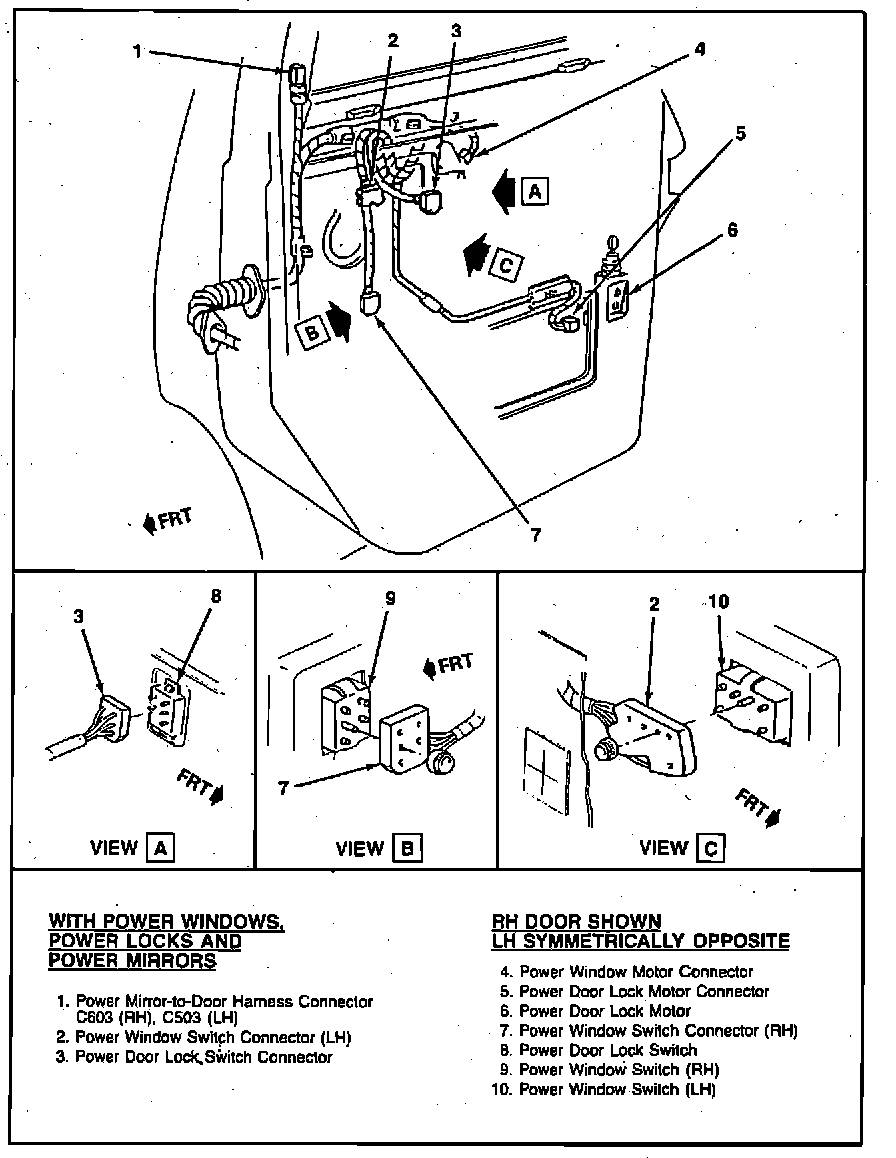

Front Door Components:




On Front Doors
