Home >> GMC >> 1990 >> Safari Van M L4-151 2.5L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Brake Light Switch >> Locations >> Stop Light Switch

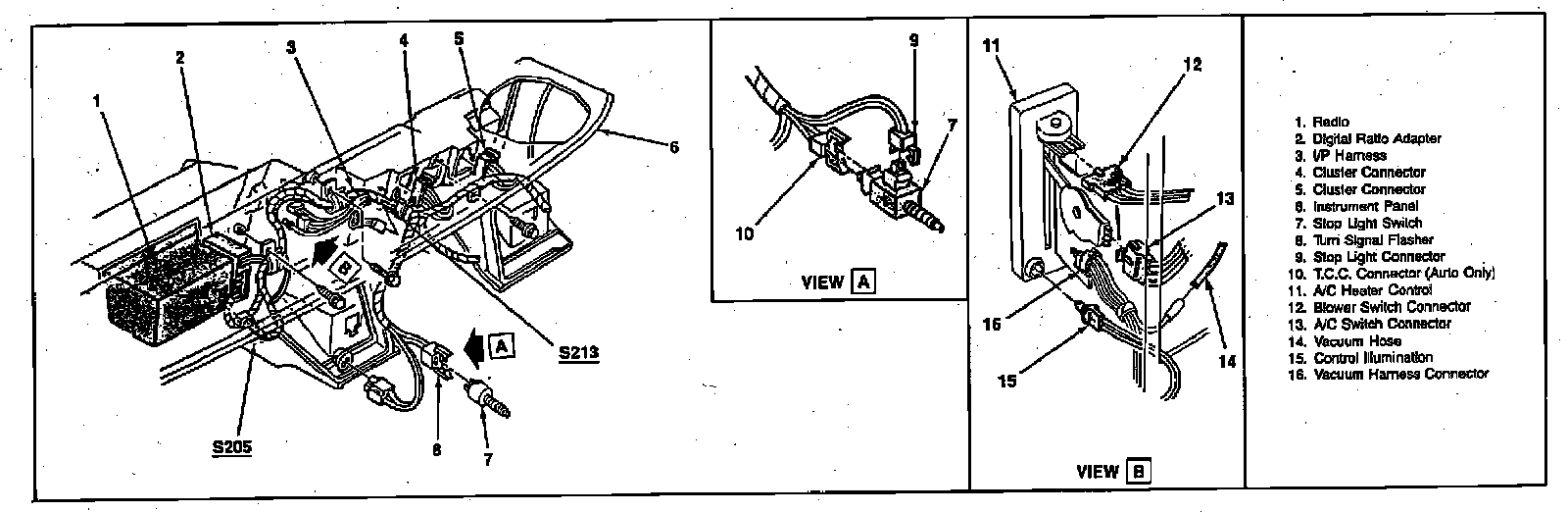

Stop Light Switch

Behind LH Side Of I/P:




Beneath LH Side Of I/P
