Noise Diagnosis

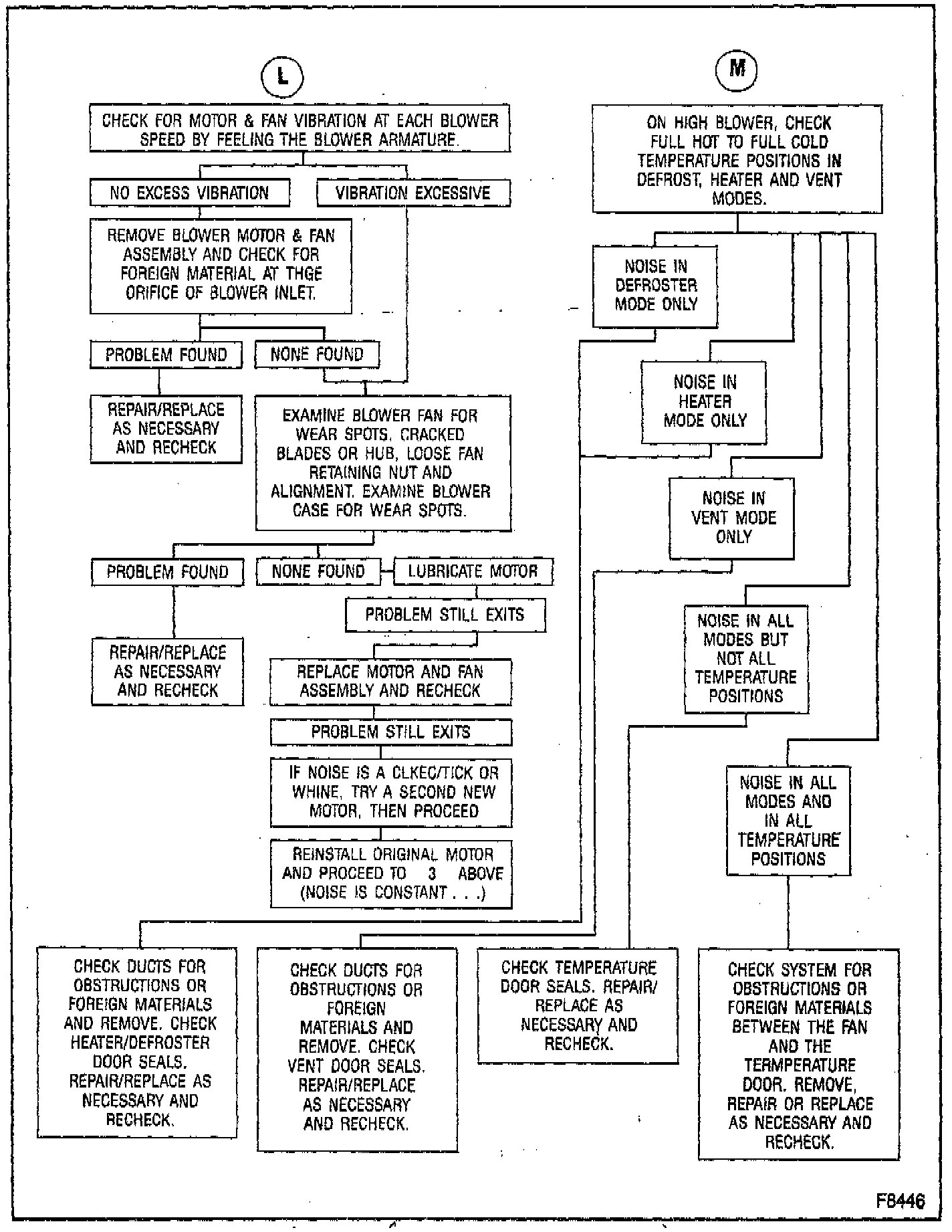

Blower Noise Diagnosis (1 0f 2):

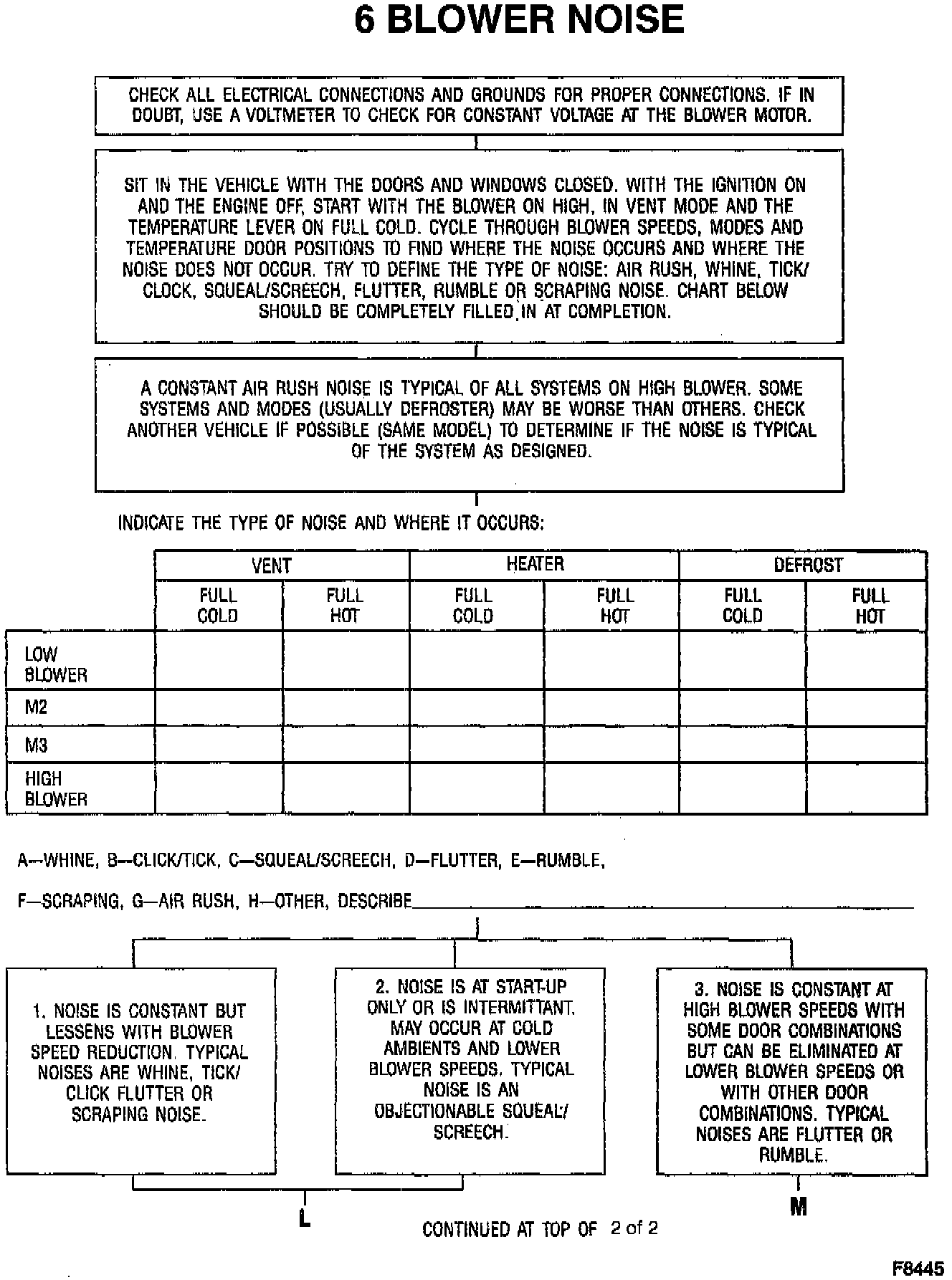

Blower Noise Diagnosis (2 0f 2):






For information regarding "Blower Noise Diagnosis" refer to Chart 6 (parts 1 and 2).
