Exhaust Manifold: Service and Repair

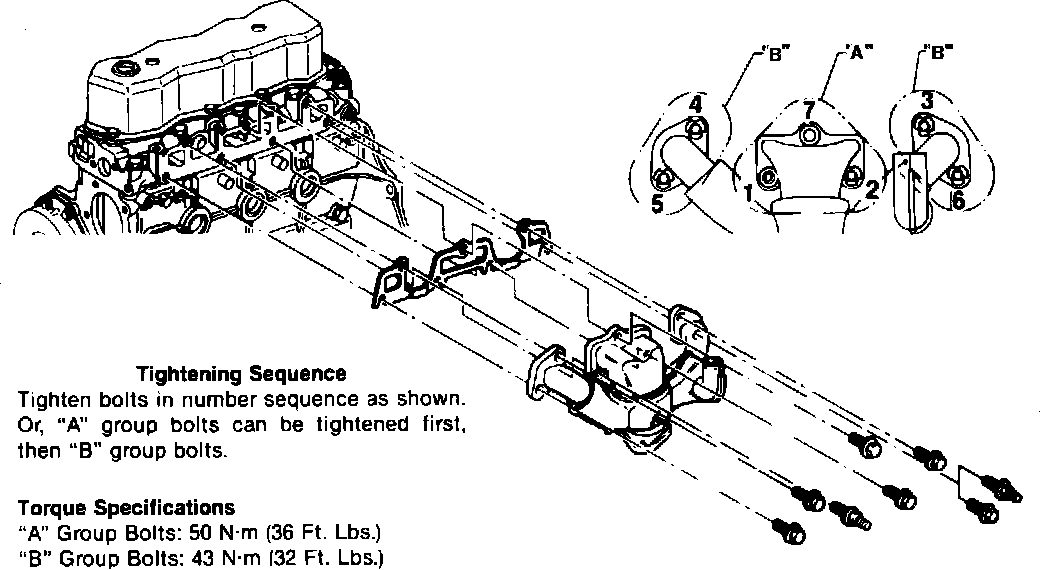

Fig. 4 Exhaust Manifold Bolt Tightening Sequence:

1. Disconnect battery ground cable.
2. Remove glove box assembly, if necessary, then the engine cover.
3. Remove exhaust stove pipe from manifold, then disconnect electrical connector from oxygen sensor.
4. Raise and support vehicle.
5. Disconnect exhaust pipe from exhaust manifold.
6. On models equipped with A/C, remove rear A/C compressor bracket.
7. On all models, remove exhaust manifold attaching bolts and the exhaust manifold.
8. Reverse procedure to install. Tighten exhaust manifold attaching bolts to specifications in sequence, Fig 4.
