Home >> GMC >> 1990 >> Safari Van M L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Air Door Actuator / Motor, HVAC >> Actuators and Control Schematic (with a/c)

Actuators and Control Schematic (with a/c)

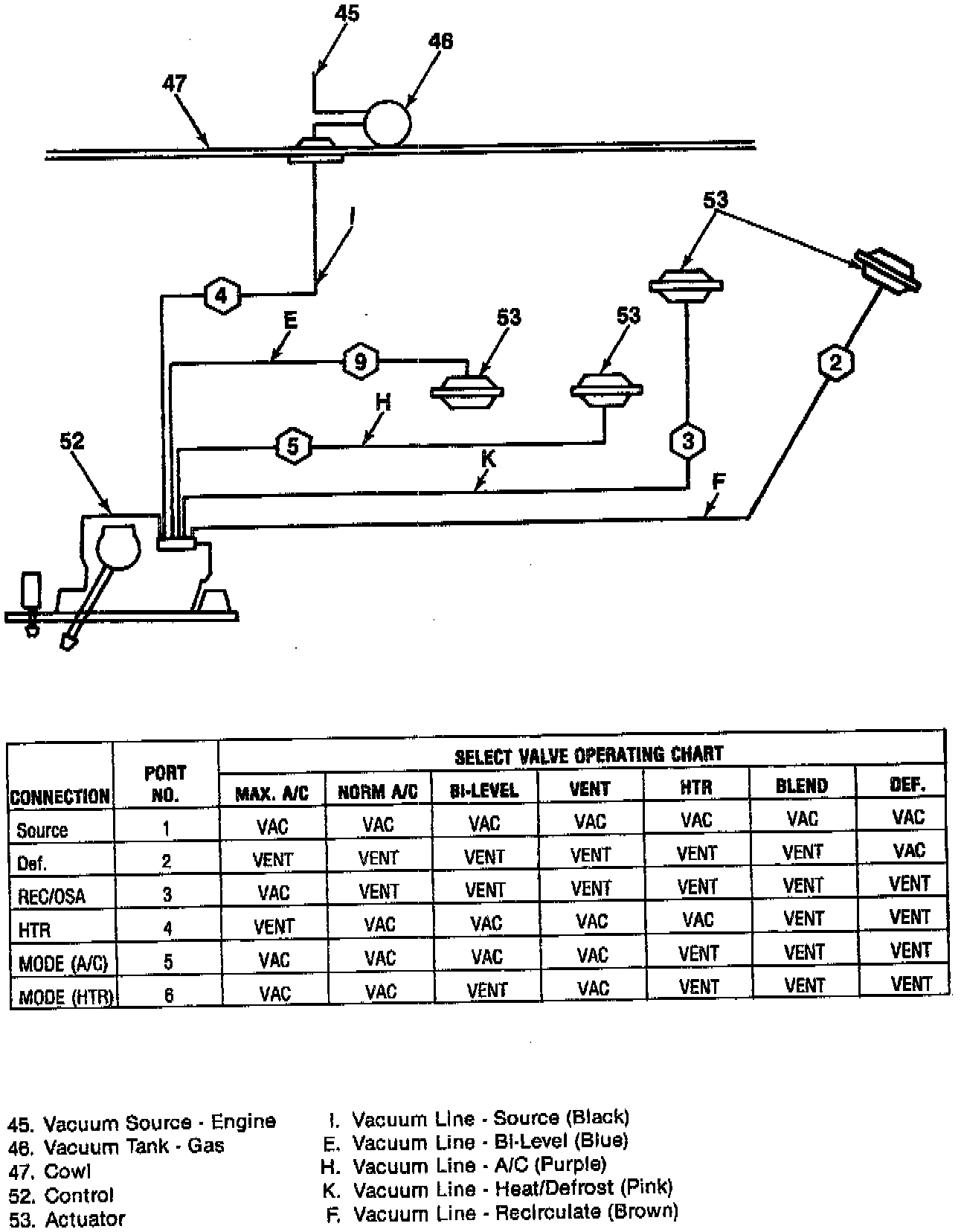

Vacuum Schematic:
