Home >> GMC >> 1990 >> Safari Van M L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Warning Indicators >> With Electronic Instrument Cluster

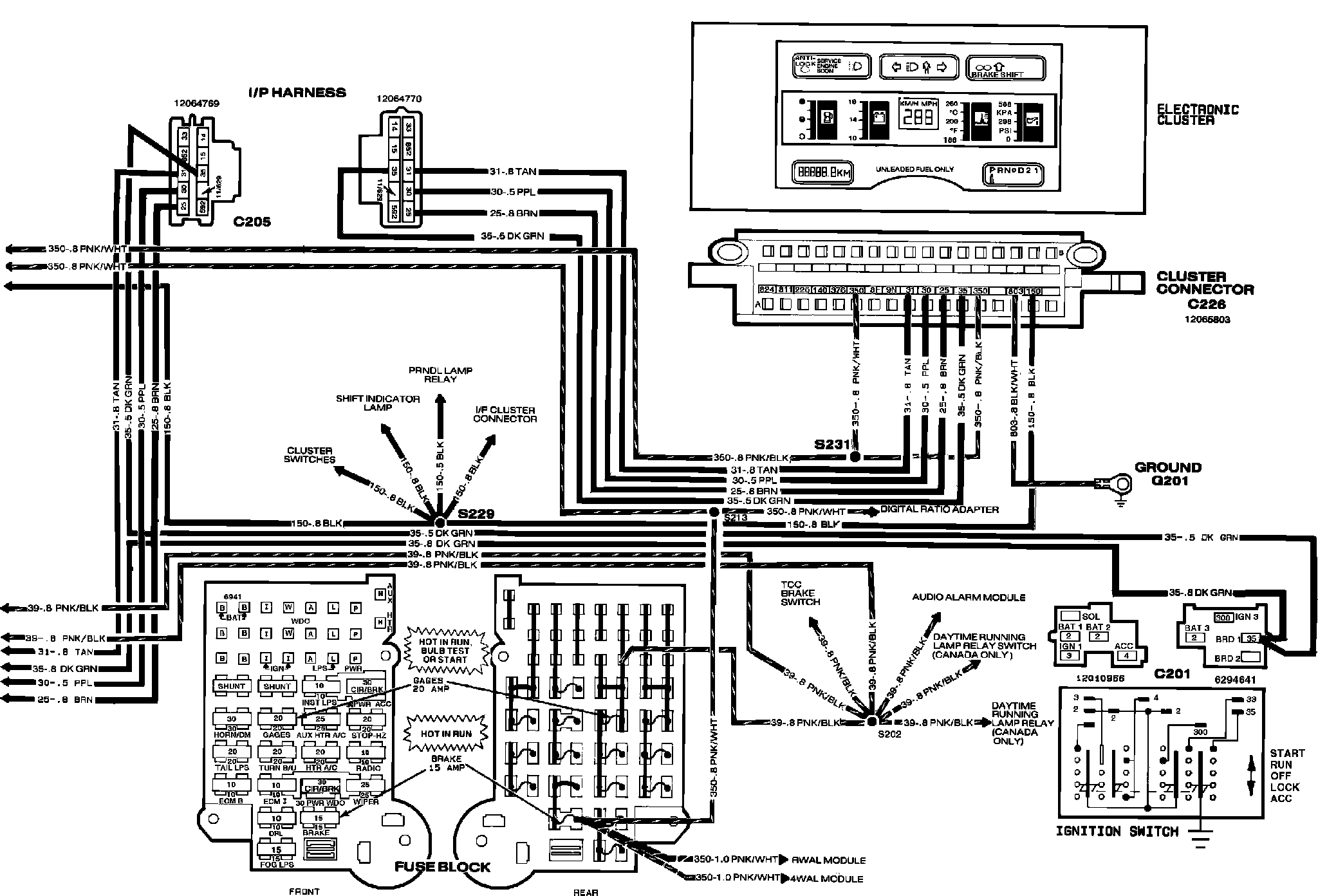

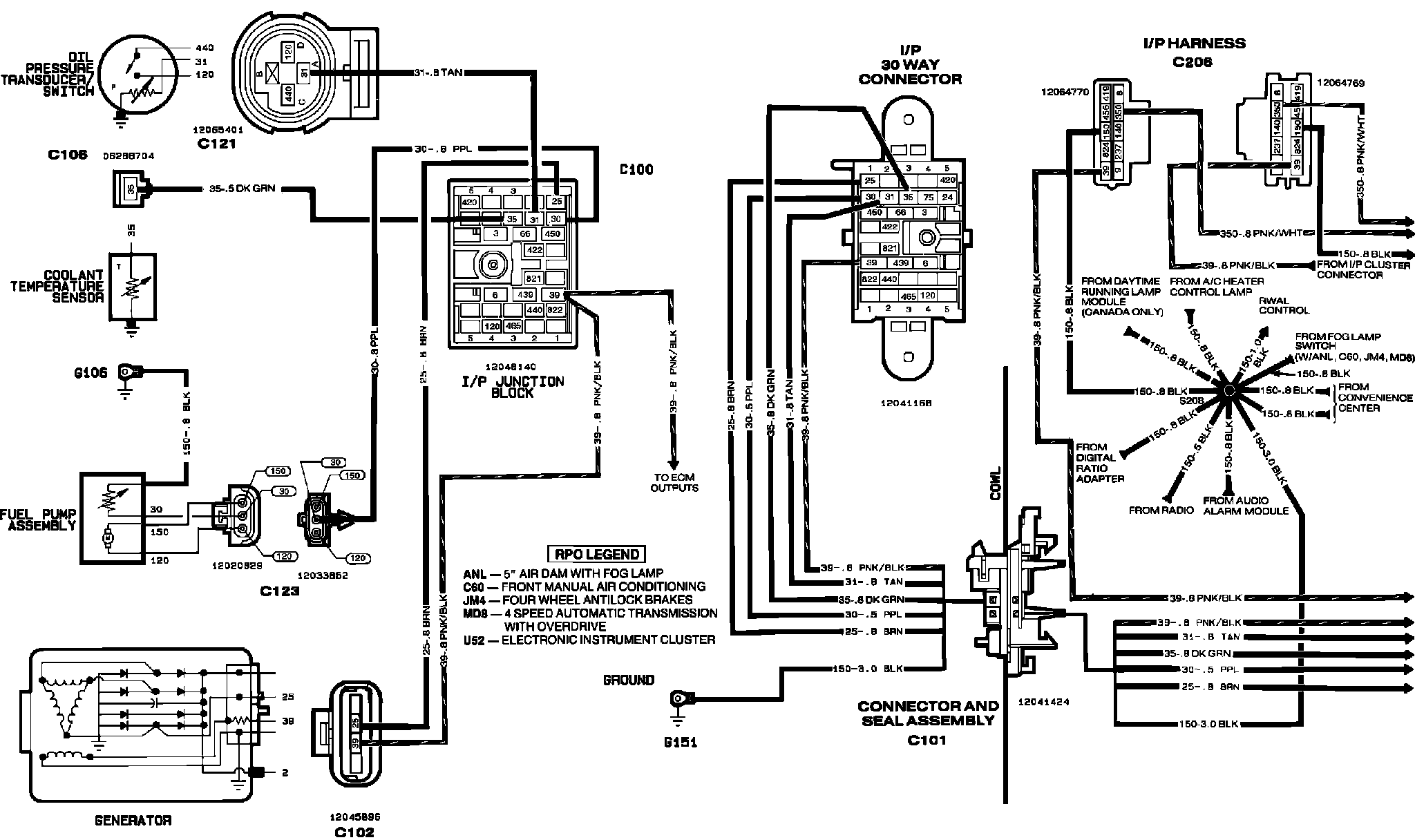

With Electronic Instrument Cluster

Warning/Indicators: Gauges: With Electronic Instrument Cluster:



Warning/Indicators: Gauges: With Electronic Instrument Cluster:
