Suspension - Rear
>>
Trouble Shooting
>>
Shock Absorbers & Springs
Shock Absorbers & Springs

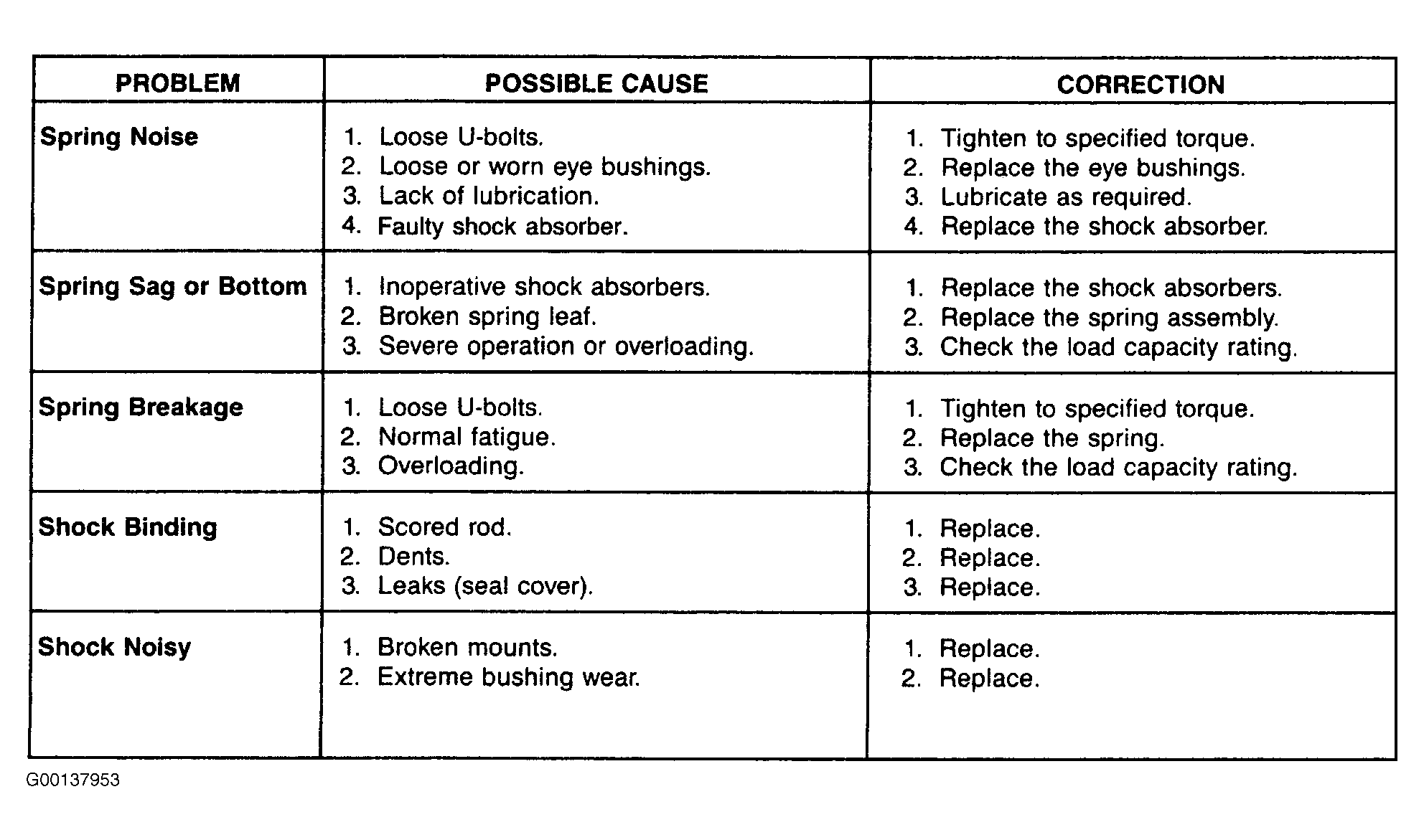

Fig 1: Troubleshooting Shock Absorbers & Springs
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
