Stabilizer Bar Right Hand Drive Only ): Installation

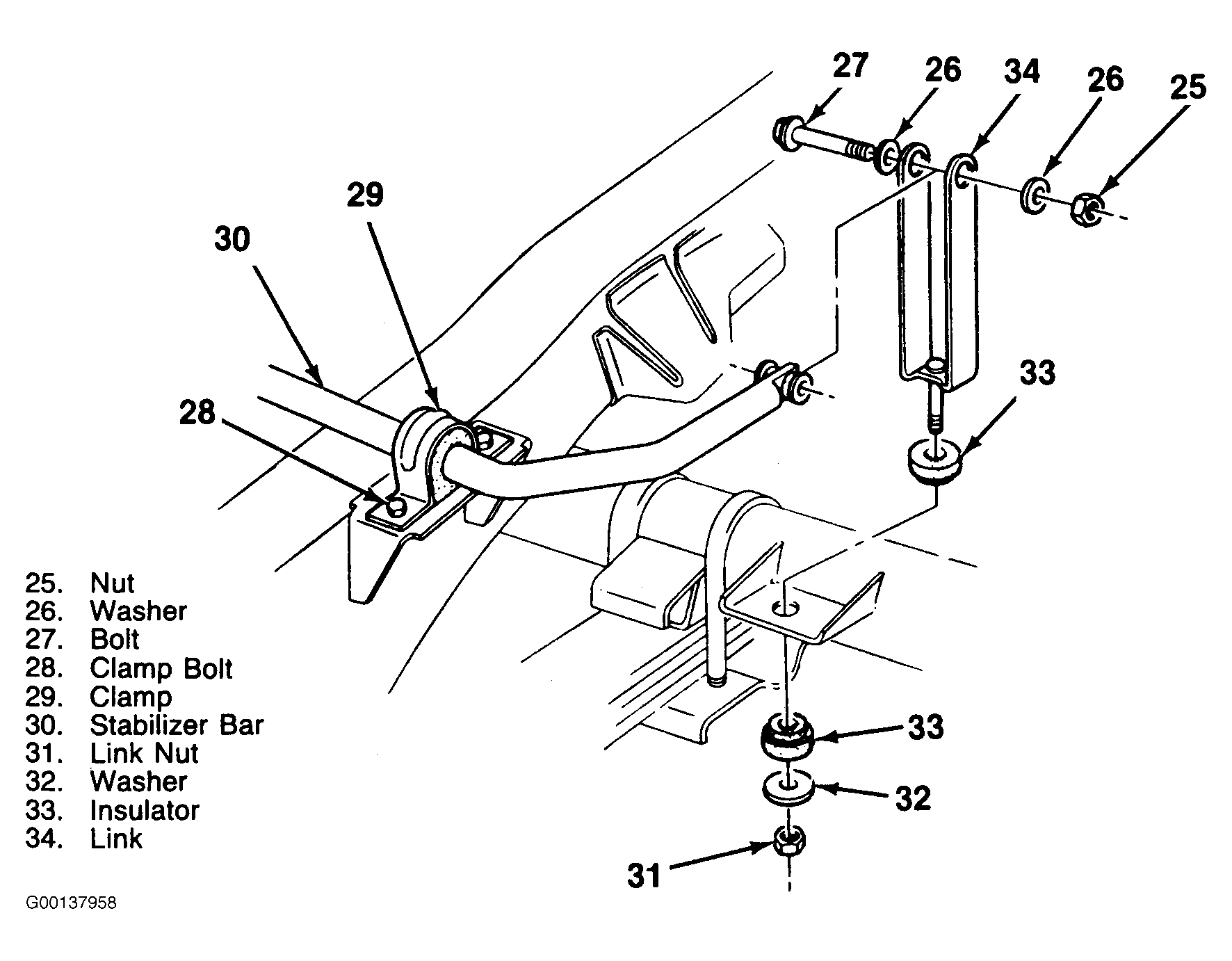

  1. Install the link (34), insulator (33), washer (32) and nut (31), to the axle if removed; DO NOT tighten. See Figure .
  2. Install the stabilizer bar (30).
  3. Install the clamps (29).
  4. Install the clamp bolts (28).
  5. Tighten the clamp bolts to specification. See TORQUE SPECIFICATIONS
  6. Install the stabilizer bar (30) to the link (34).
  7. Install the stabilizer bar (34) to the bolt (27), washers (26) and nut (25).
  8. Tighten the stabilizer bar-to-link nut. See TORQUE SPECIFICATIONS
  9. Tighten the link to axle nut.
  10. Lower the vehicle.
