Home >> GMC >> 1990 >> S15 Jimmy RWD, Automatic, 700R4/MD8 >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Suspension - Rear >> Removal & Installation >> Spring Bushing >> Removal

Spring Bushing: Removal

  1. Remove the spring assembly. See SPRING ASSEMBLY  .

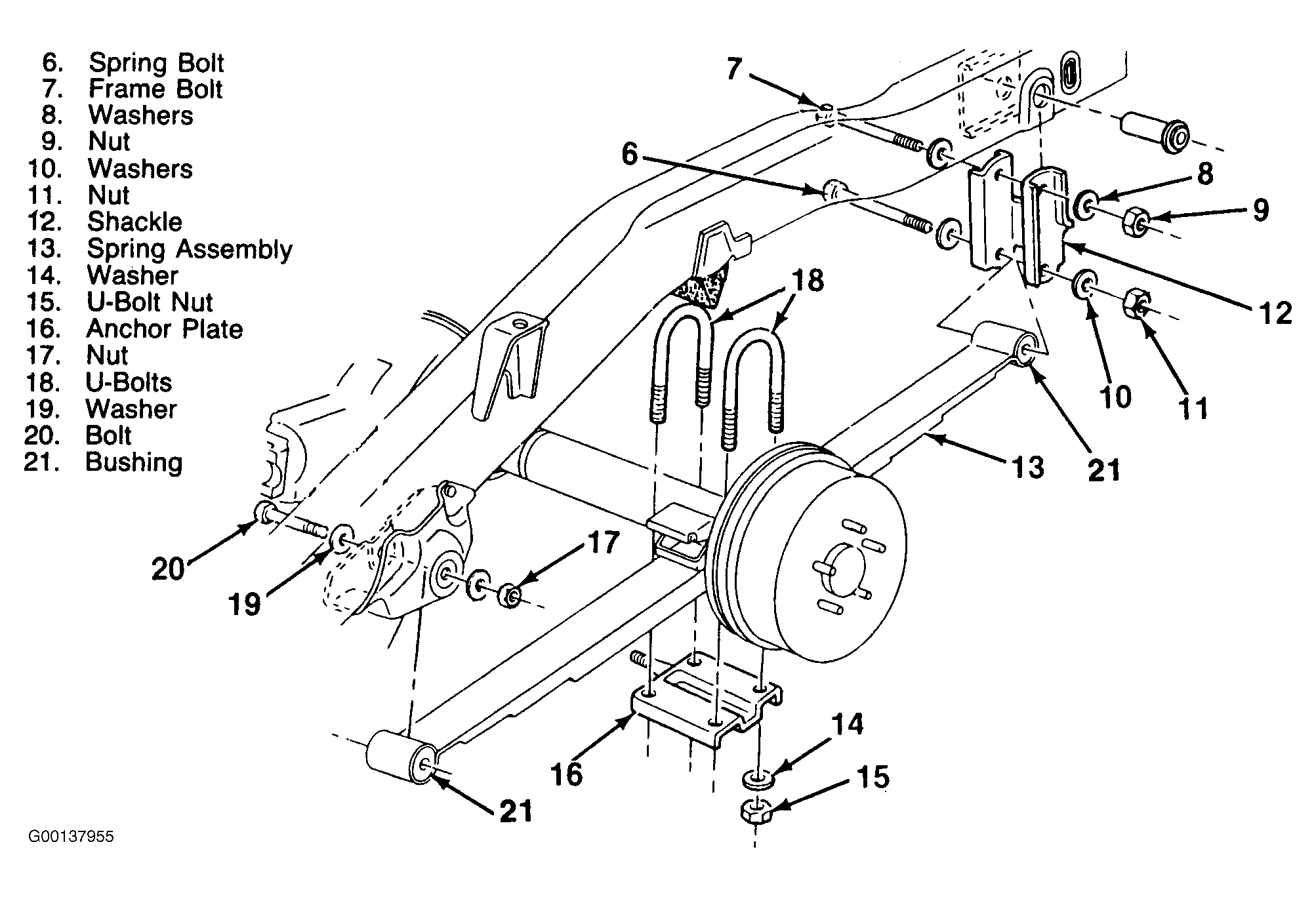

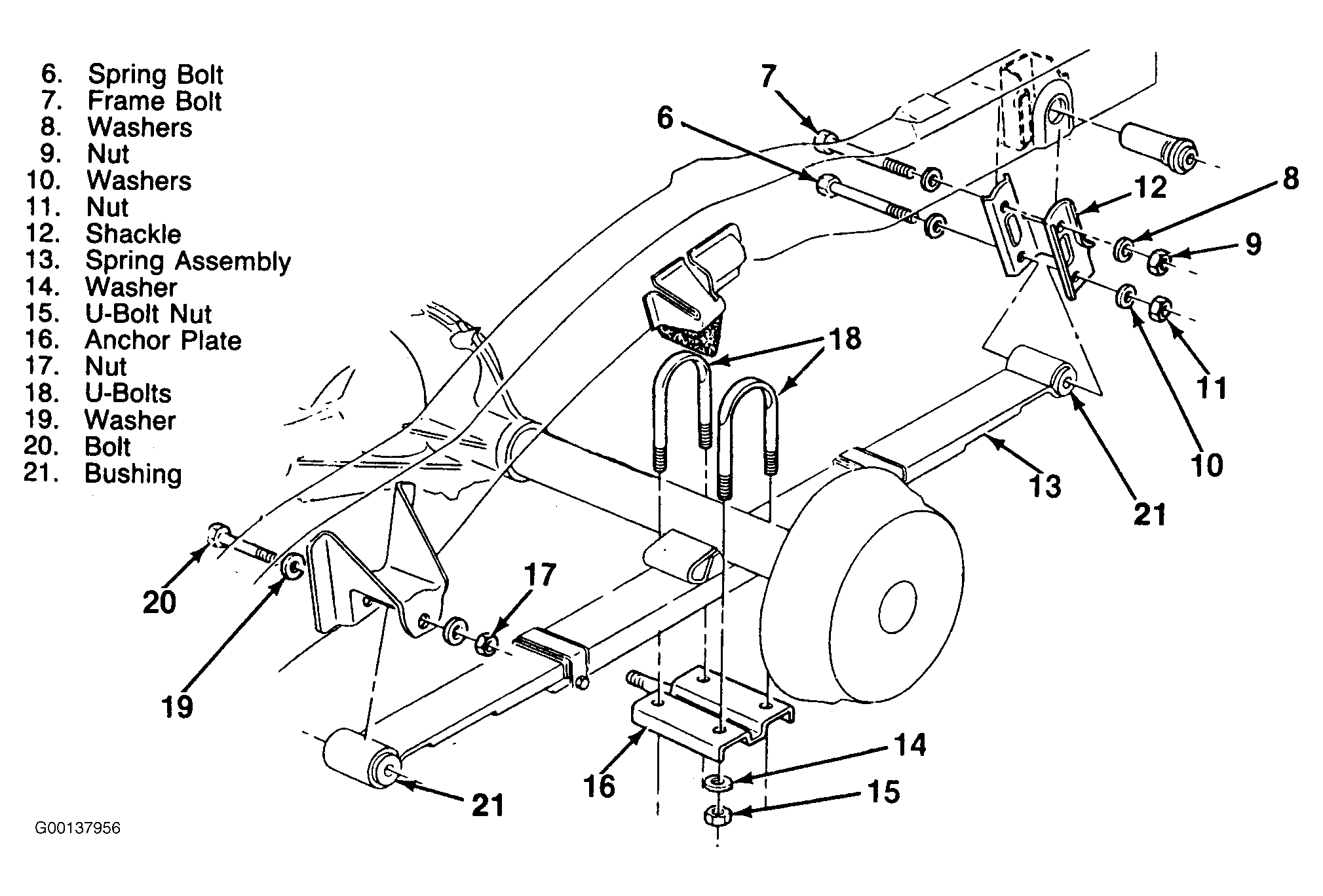

  2. Remove the bushings (21) from the spring assembly (13). See Figure or Figure .
  3. Press the bushing from the spring in an arbor press.
