Rear Wheel Cylinder: Removal

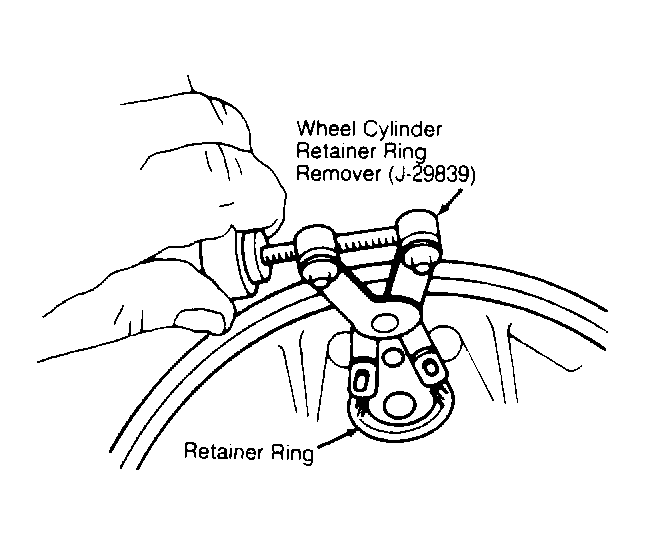

Remove dirt and foreign material from around wheel cylinder and pilot. Disconnect inlet tube line. Remove wheel cylinder retainer using Wheel Cylinder Retainer Ring Remover (J-29839) or 2 awls. Insert remover or awls into access slots between wheel cylinder pilot and retaining lock tabs. Bend both tabs away simultaneously until wheel cylinder is released. See Fig 1 .
