Four Wheel Drive (4WD)

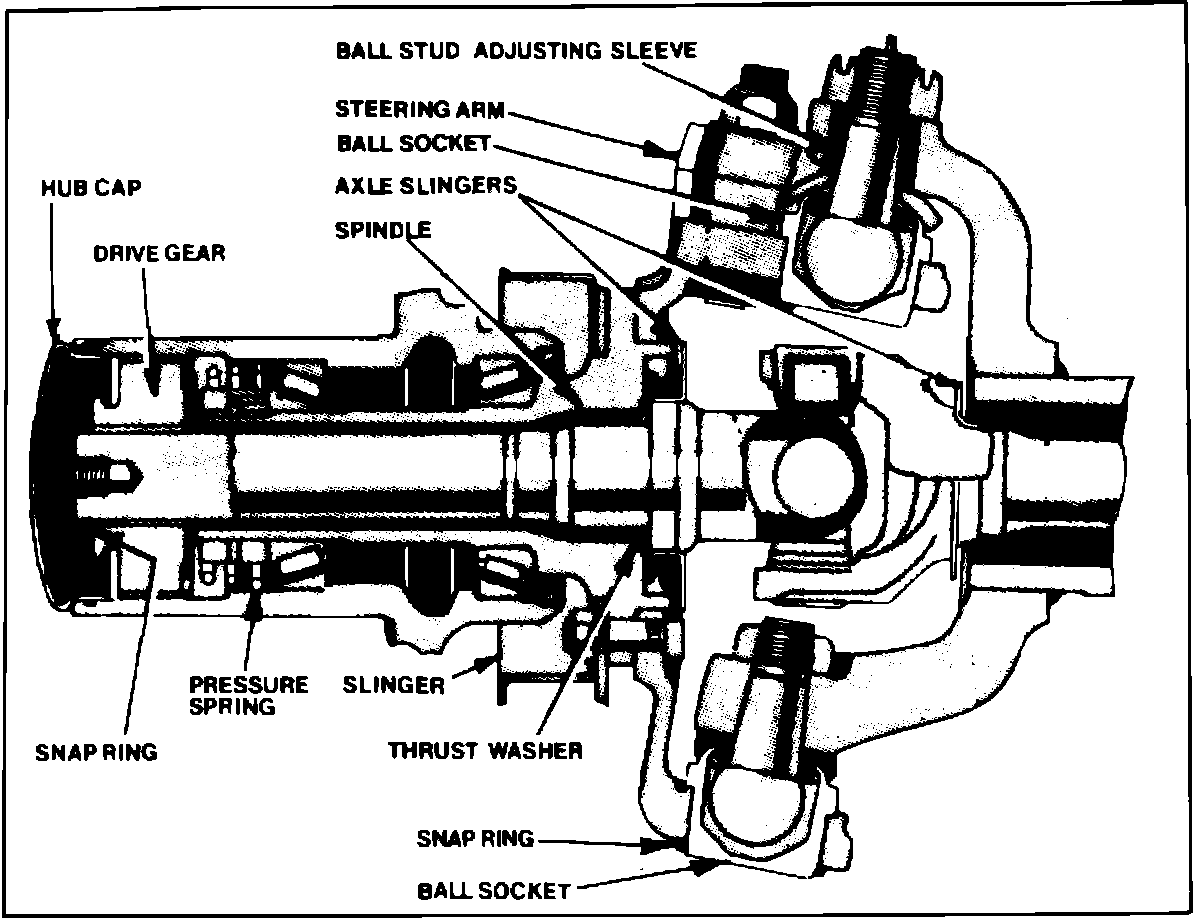

Cross-sectional view of front driving axle:

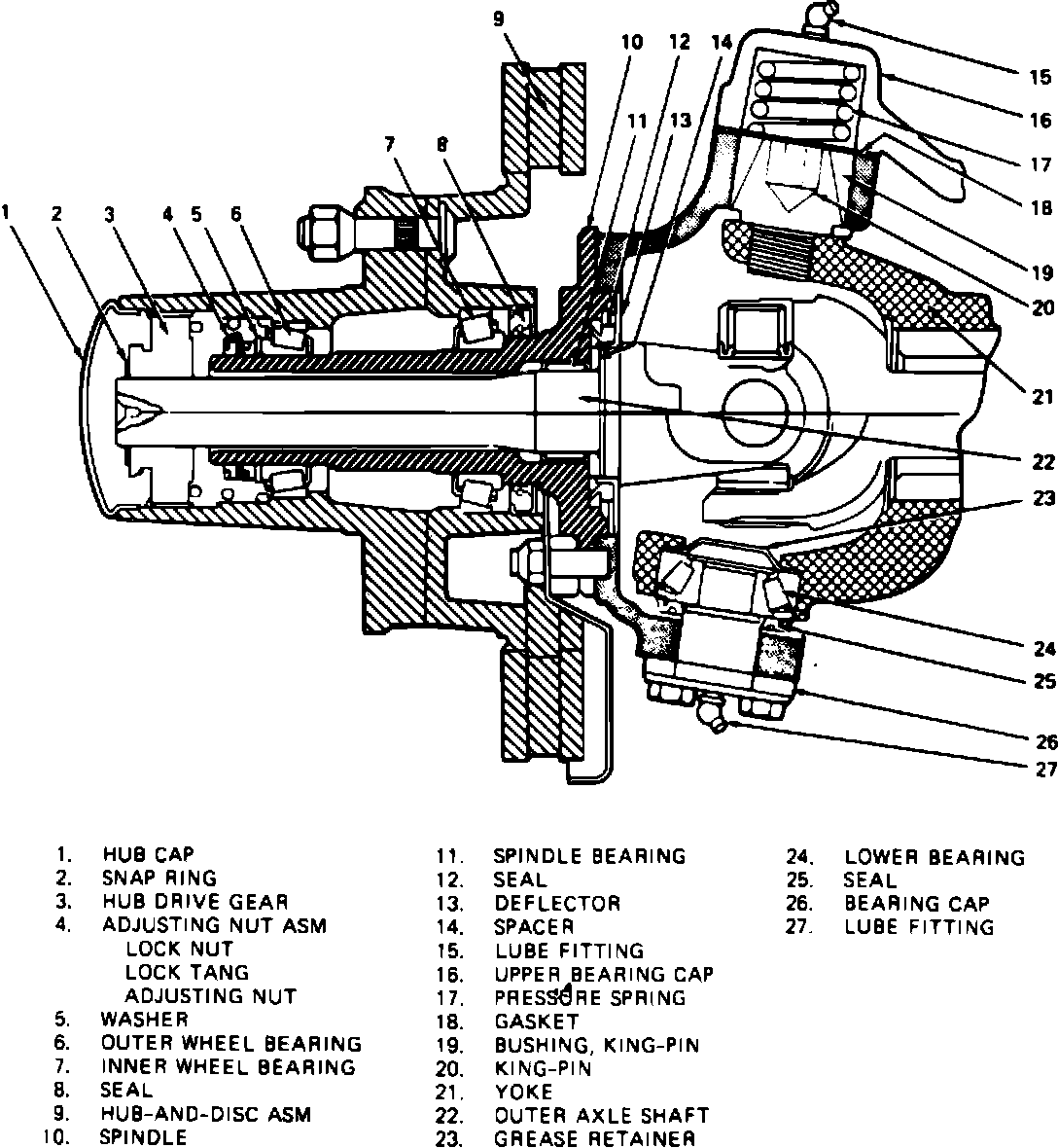

Cross-sectional view of front driving axle:





The front axles on these vehicles, are hypoid gear units equipped with steering knuckles retained by either ball joints (V10-20/1500-2500) or king pins (V30/3500). The axle shafts drive the front wheels through yoke and trunnion type universal joints.
