Chart 5 - Release Switch Test (W/Auto. Trans)
Chart 5 - Release Switch Test (W/Auto. Trans)

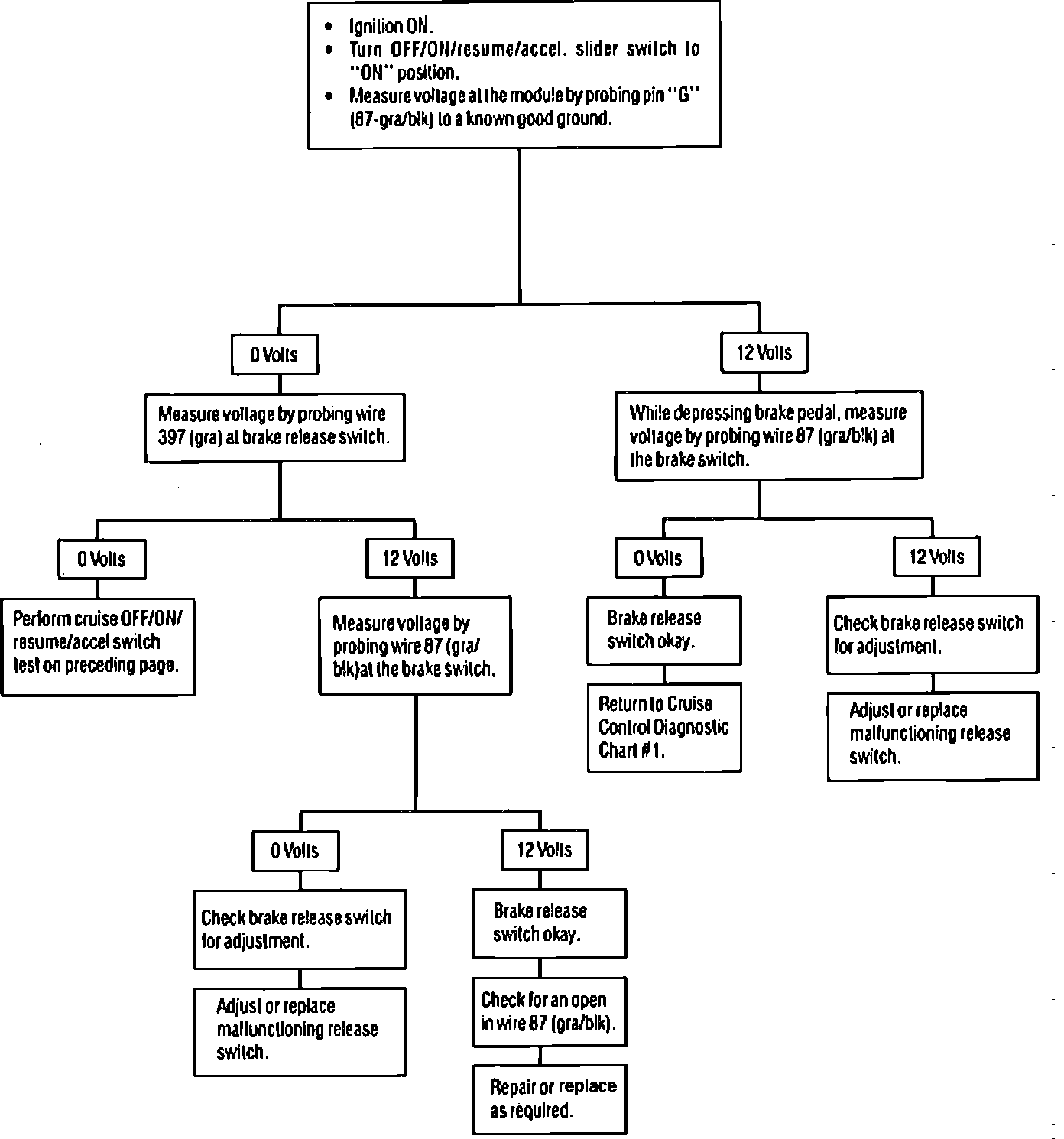

Chart 5, Cruise Release Switch Test:
