Cruise Control Switch
>>
Testing and Inspection
>>
Chart 3 - Off/On/Resume/Accel Switch Test
Chart 3 - Off/On/Resume/Accel Switch Test

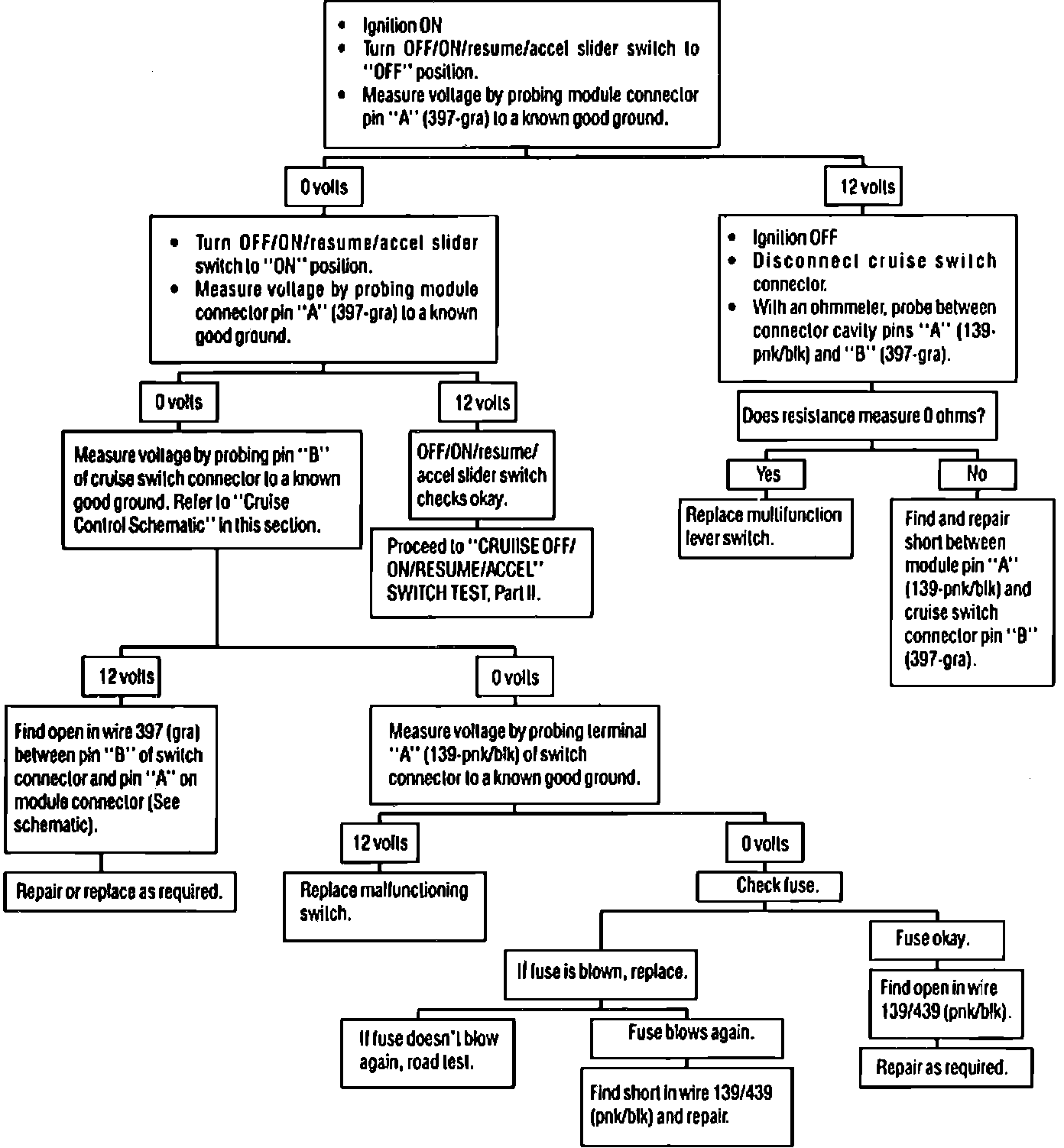

Chart 3, Cruise "Off/On/Resume/Accel" Switch Test:
