Home >> GMC >> 1990 >> Jimmy Full Size V8-350 5.7L >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Electrical Diagrams

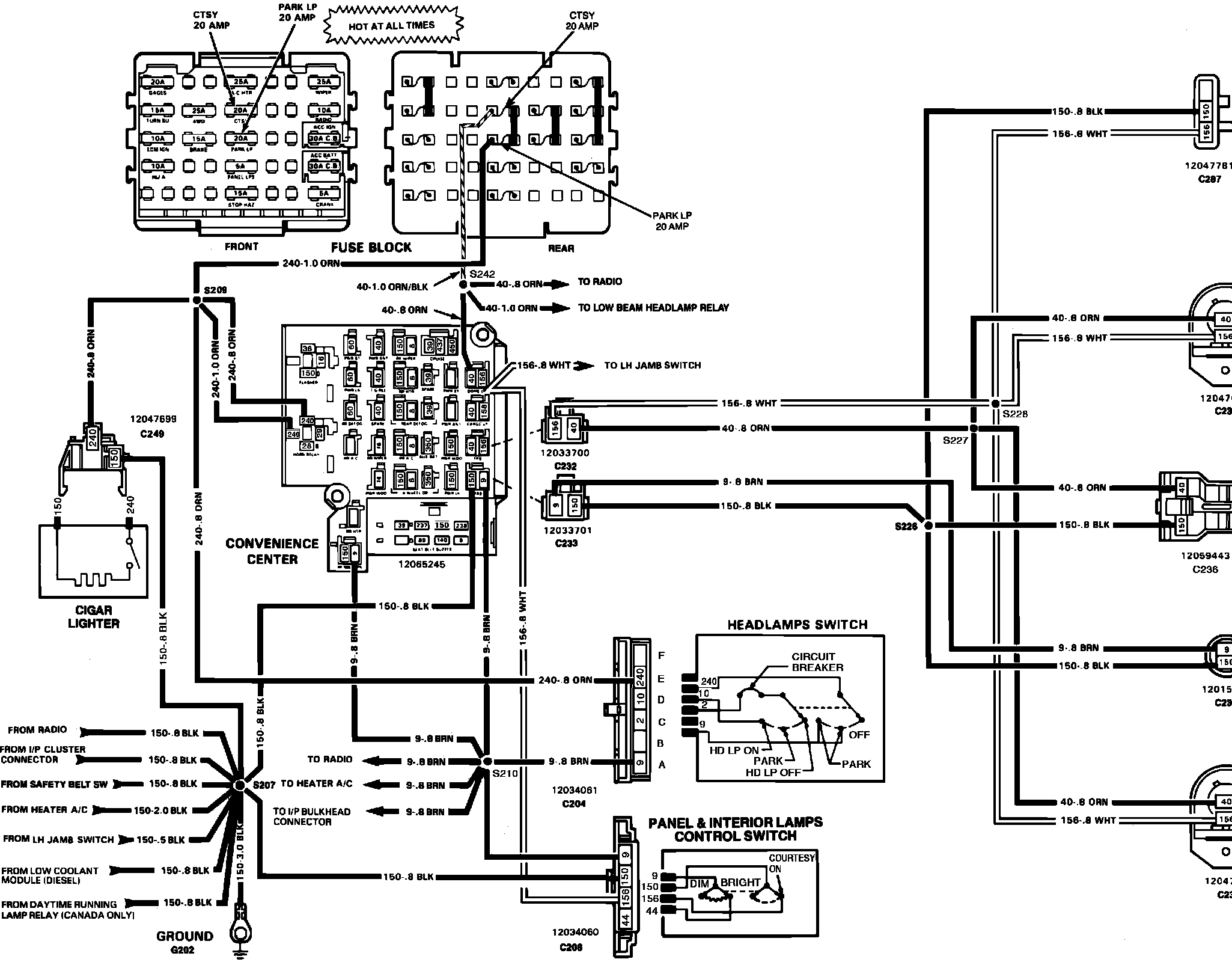

Electrical Diagrams

´CLamp Group:
