Air Door Actuator / Motor: Service and Repair

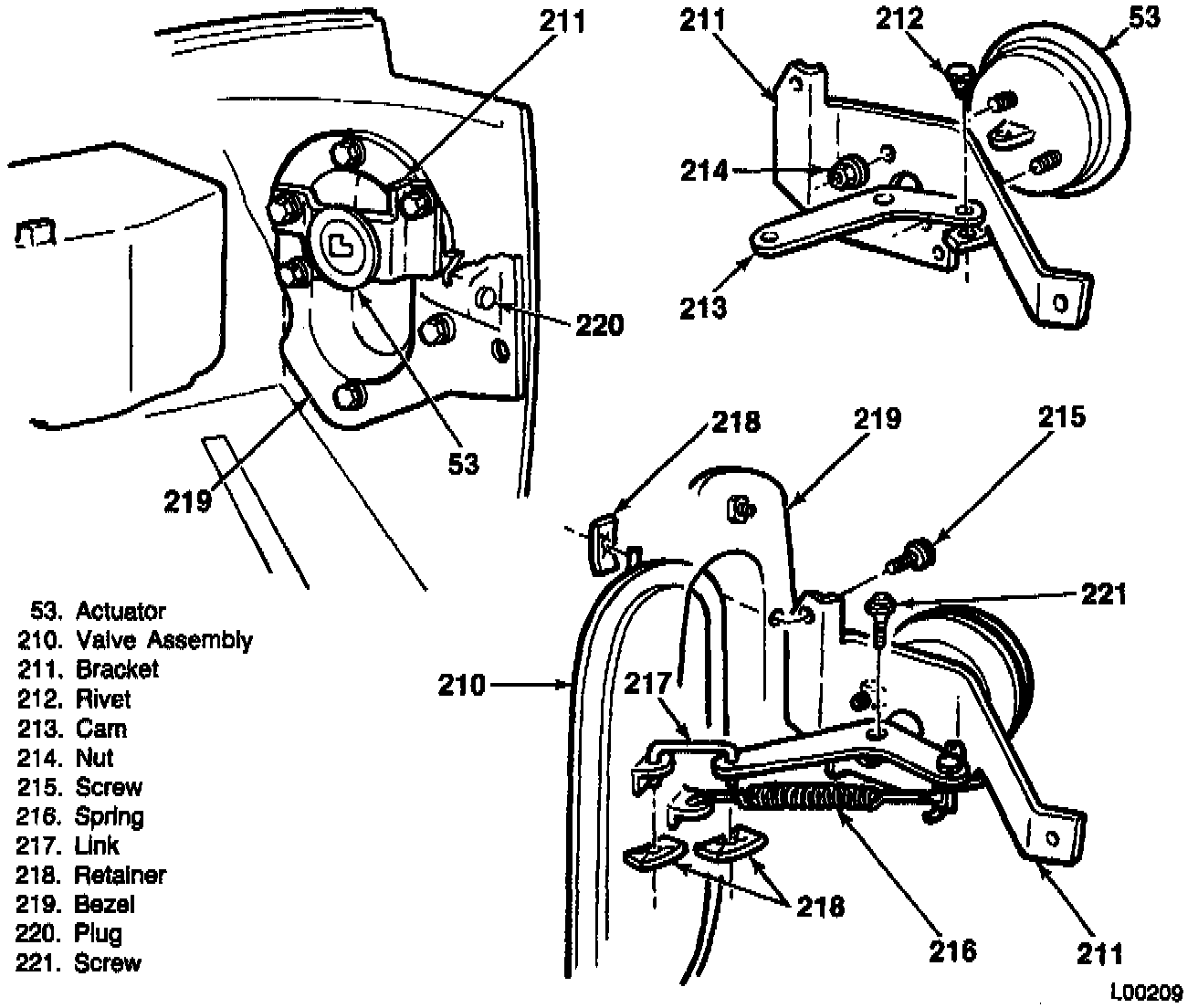

REMOVE OR DISCONNECT
1. Vacuum hose at the actuator.
2. Valve return spring (216) at the actuator end.
3. Actuator bracket- mounting screws (215).
4. Cam-to-actuator arm screw (221).
5. Actuator and bracket from the cam (213).
6. Actuator-to-bracket nuts (214).
7. Actuator (53) from the bracket.

INSTALL OR CONNECT
1. Actuator (53) to the bracket.
2. Bracket nuts (214).
3. Actuator (211) and bracket to the cam (213).
4. Cam-to-actuator arm screw (221).
5. Actuator bracket mounting screws (215).
6. Valve return spring (216) at the actuator end.
7. Vacuum hose to the actuator.
