Cruise Control
Cruise Control

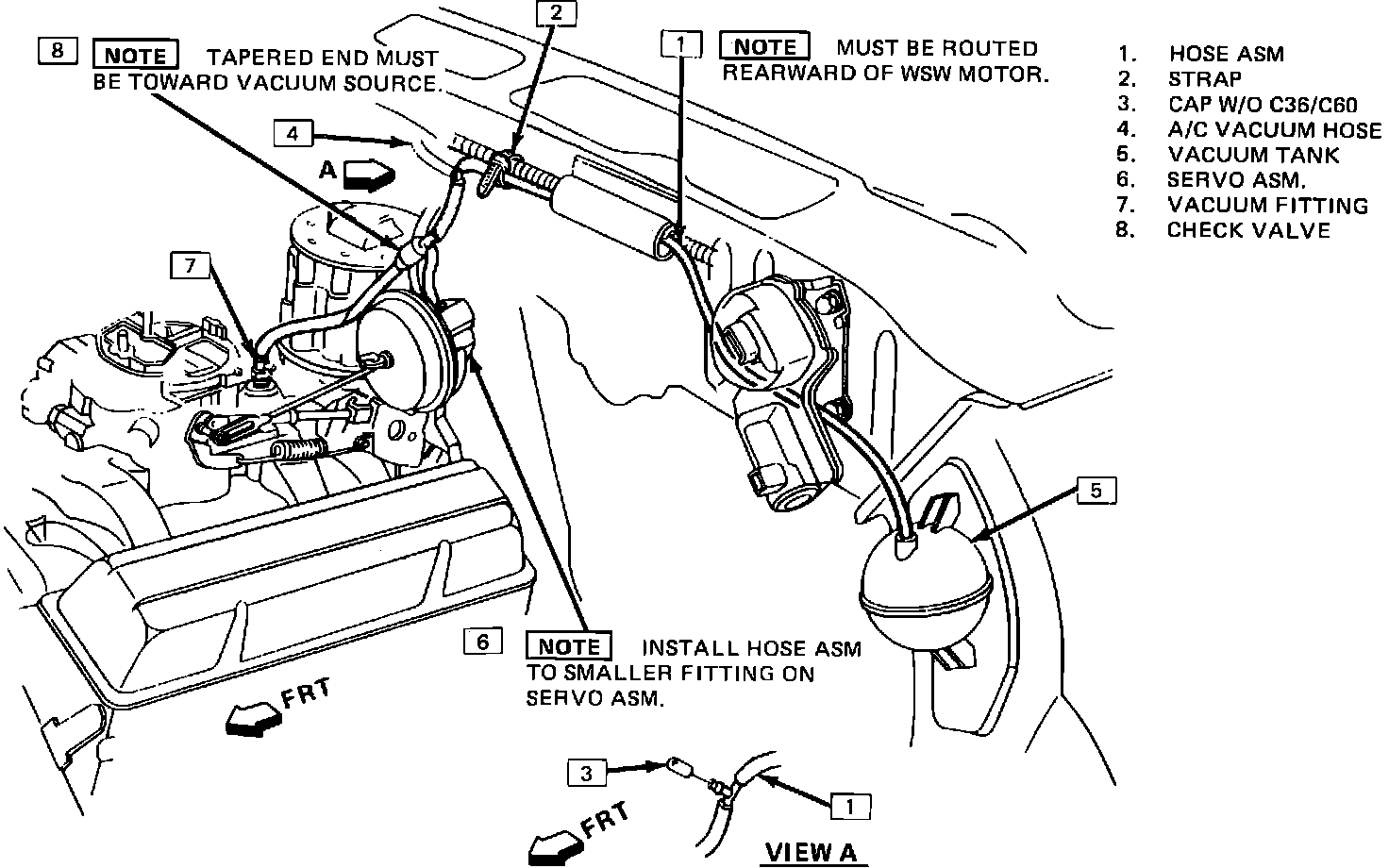

Fig. 41 Vacuum hose routing. Models w/accumulator & check valve (models less accumulator and/or check valve similar):
Fig. 49 Vacuum hose routing. 1987-91 R & V Series w/V8 engine:
