Home >> GMC >> 1990 >> Jimmy Full Size V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Hazard Warning Lamps >> Warning Indicators >> Part 1 of 2

Part 1 of 2

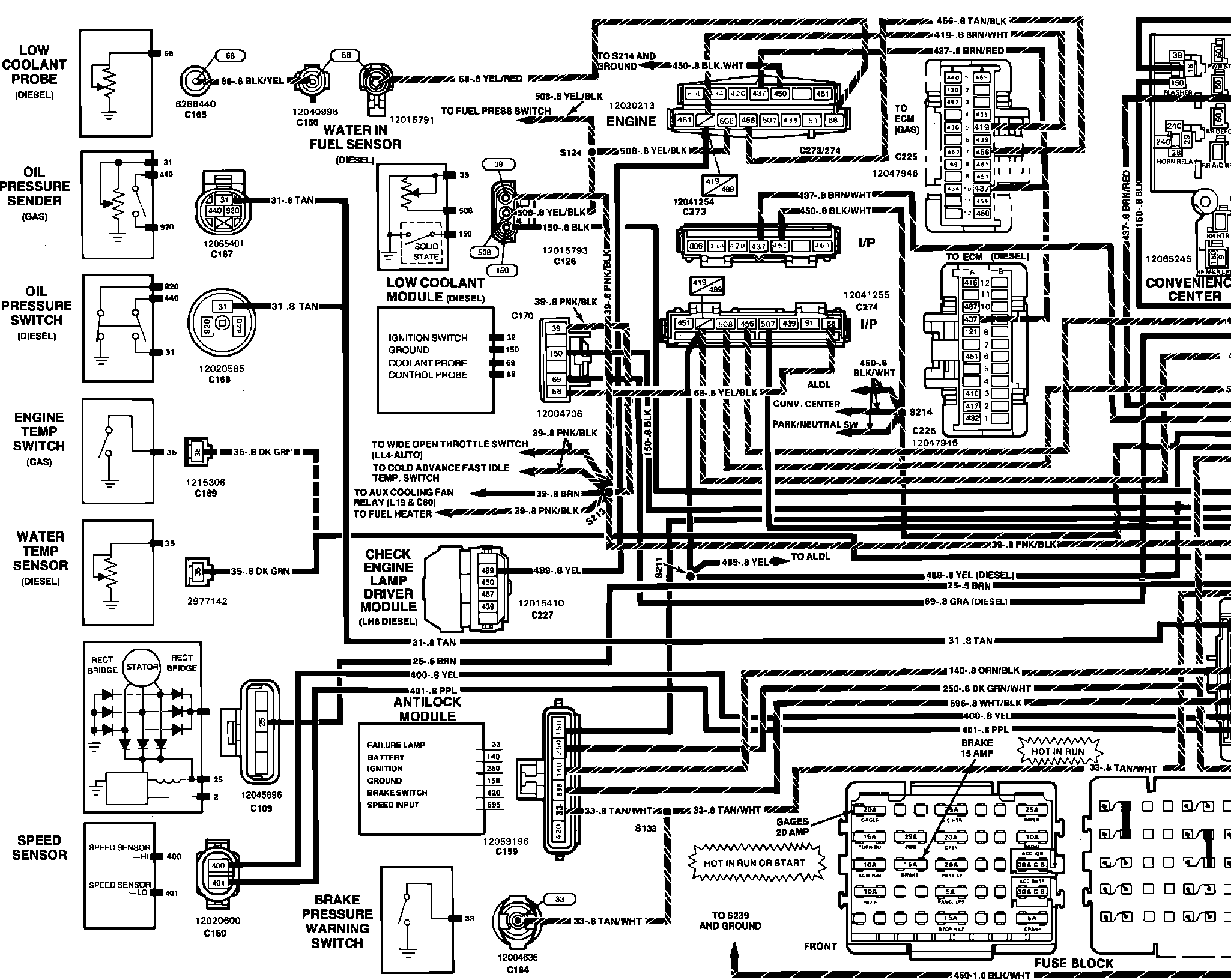

2��Instrument Panel: Indicator Lamps:
