Home >> GMC >> 1990 >> Jimmy Full Size V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Dome Lamp

Dome Lamp

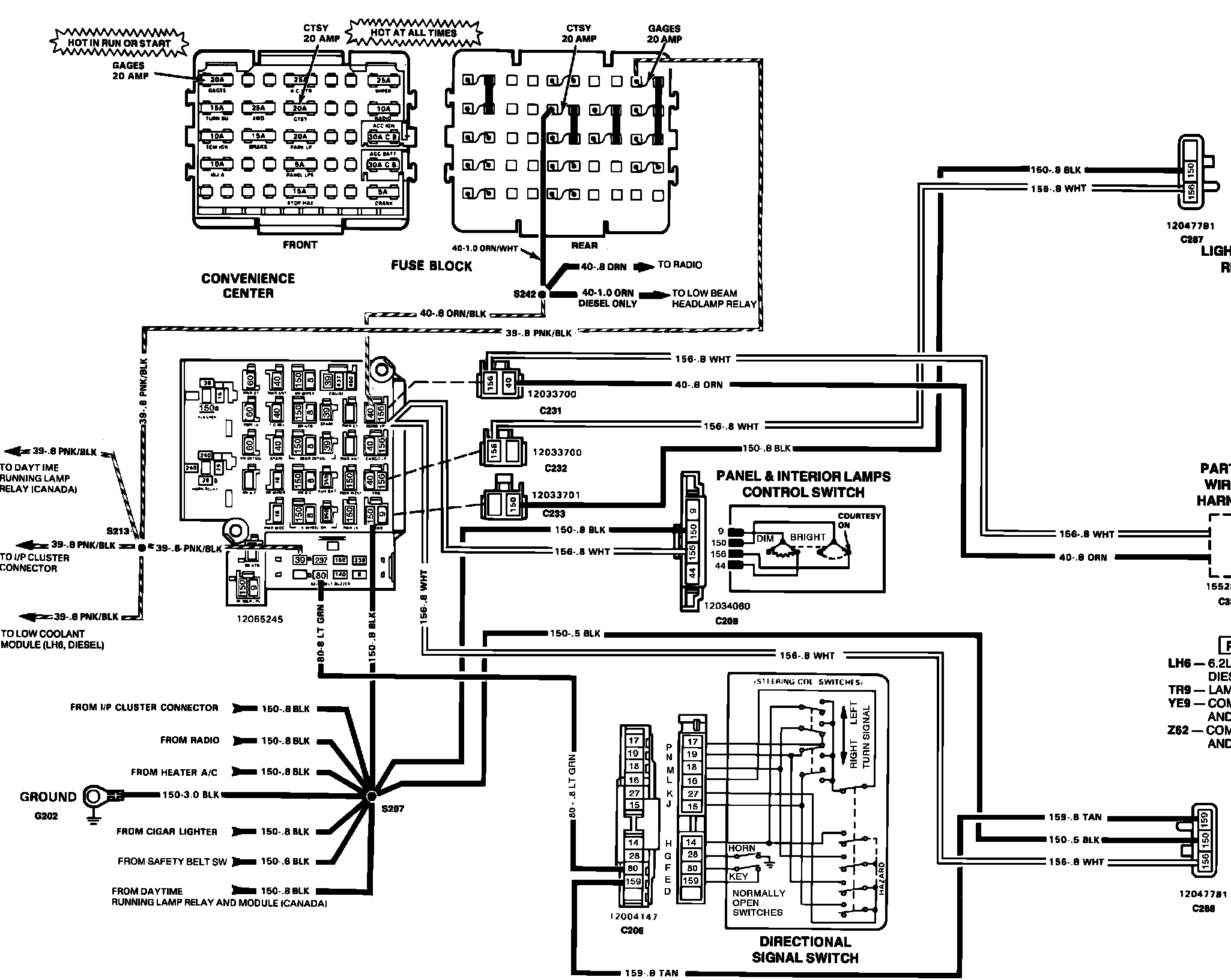

�3�Dome Lamps & Key-In Buzzer:
