Tire Rotation Patterns

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 1987 GMC Pickup, 1987 GMC Cab & Chassis, 1987 Chevrolet Pickup, 1987 Chevrolet Cab & Chassis, and 1986 GMC Pickup. However, it is still accessible from the selected car via links, so may be relevant.

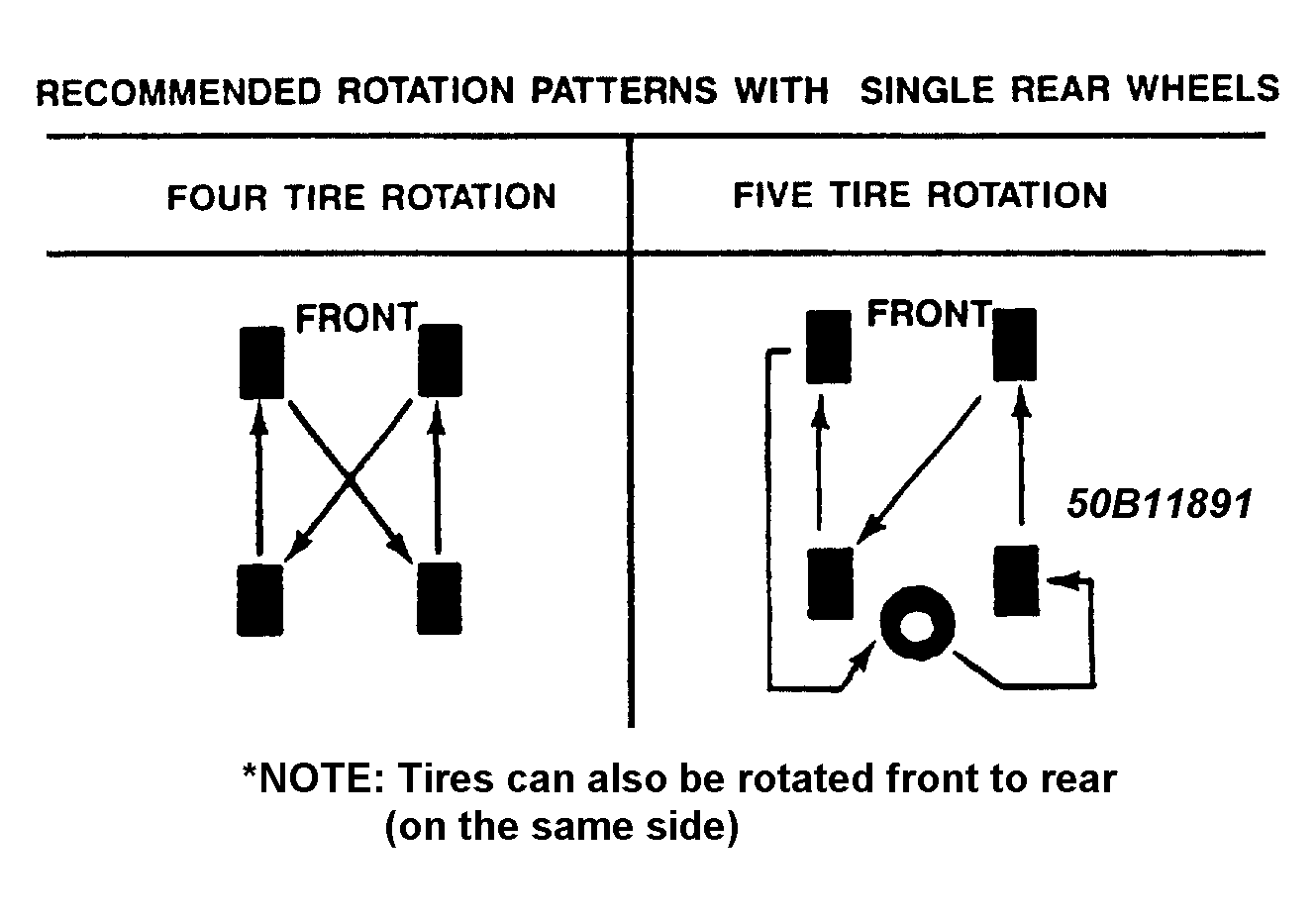

Fig 1: Tire Rotation Patterns (Single Rear Wheel)
G50B11891Courtesy of GENERAL MOTORS CORP.

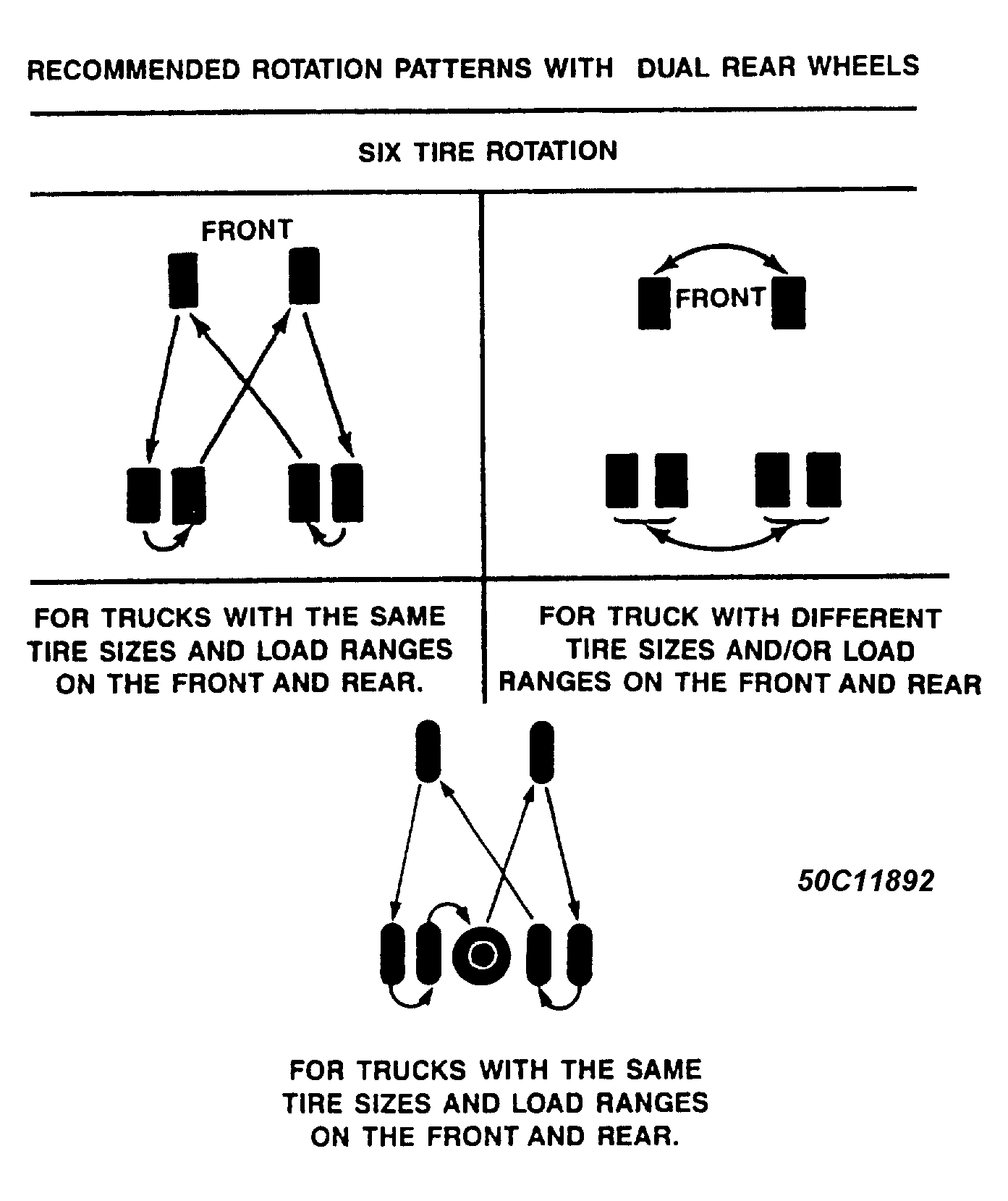

Fig 2: Tire Rotation Patterns (Dual Rear Wheels)
G50C11892Courtesy of GENERAL MOTORS CORP.
