Lug Nut Torque Patterns: Notes

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 1987 GMC Pickup, 1987 GMC Cab & Chassis, 1987 Chevrolet Pickup, 1987 Chevrolet Cab & Chassis, and 1986 GMC Pickup. However, it is still accessible from the selected car via links, so may be relevant.

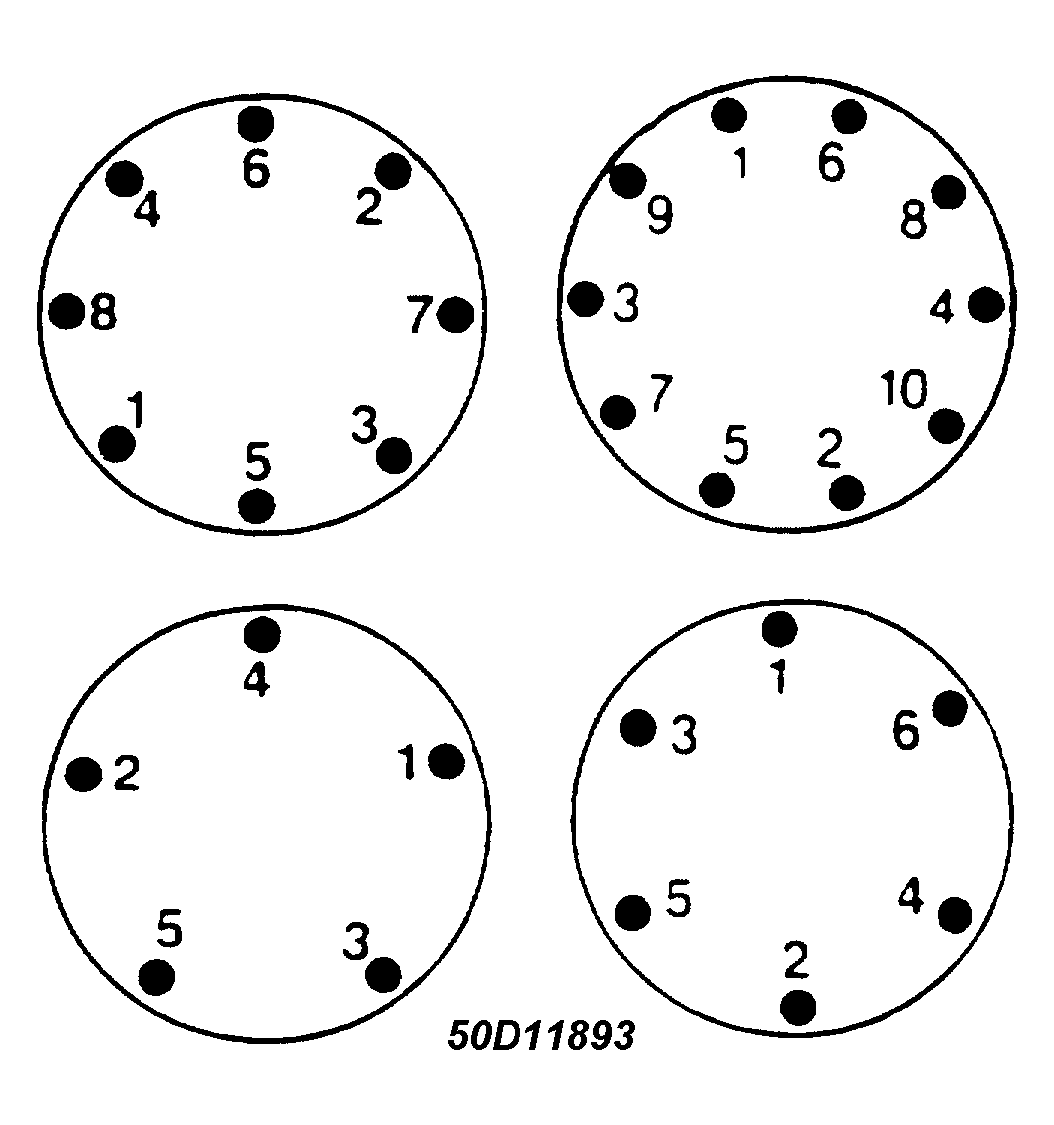

Fig 1: Wheel Lug Nut Torque Patterns
G50D11893Courtesy of GENERAL MOTORS CORP.
