Additional Service Information (Heavy Duty Models)

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 1987 GMC Pickup, 1987 GMC Cab & Chassis, 1987 Chevrolet Pickup, 1987 Chevrolet Cab & Chassis, and 1986 GMC Pickup. However, it is still accessible from the selected car via links, so may be relevant.

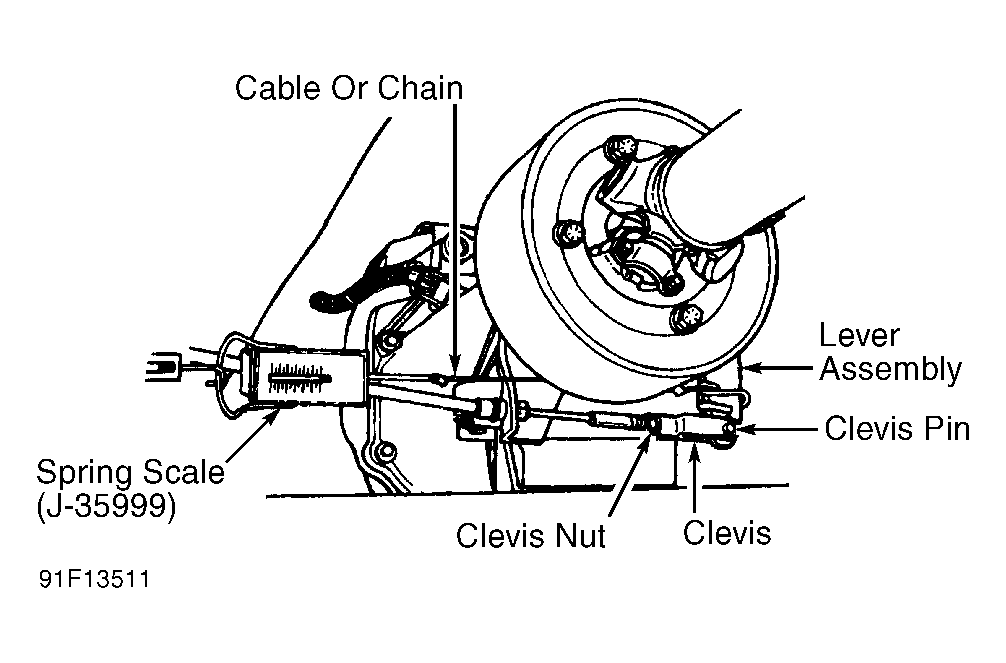

Fig 1: Driveshaft Parking Brake Service Points (Heavy-Duty)
G91F13511Courtesy of GENERAL MOTORS CORP.

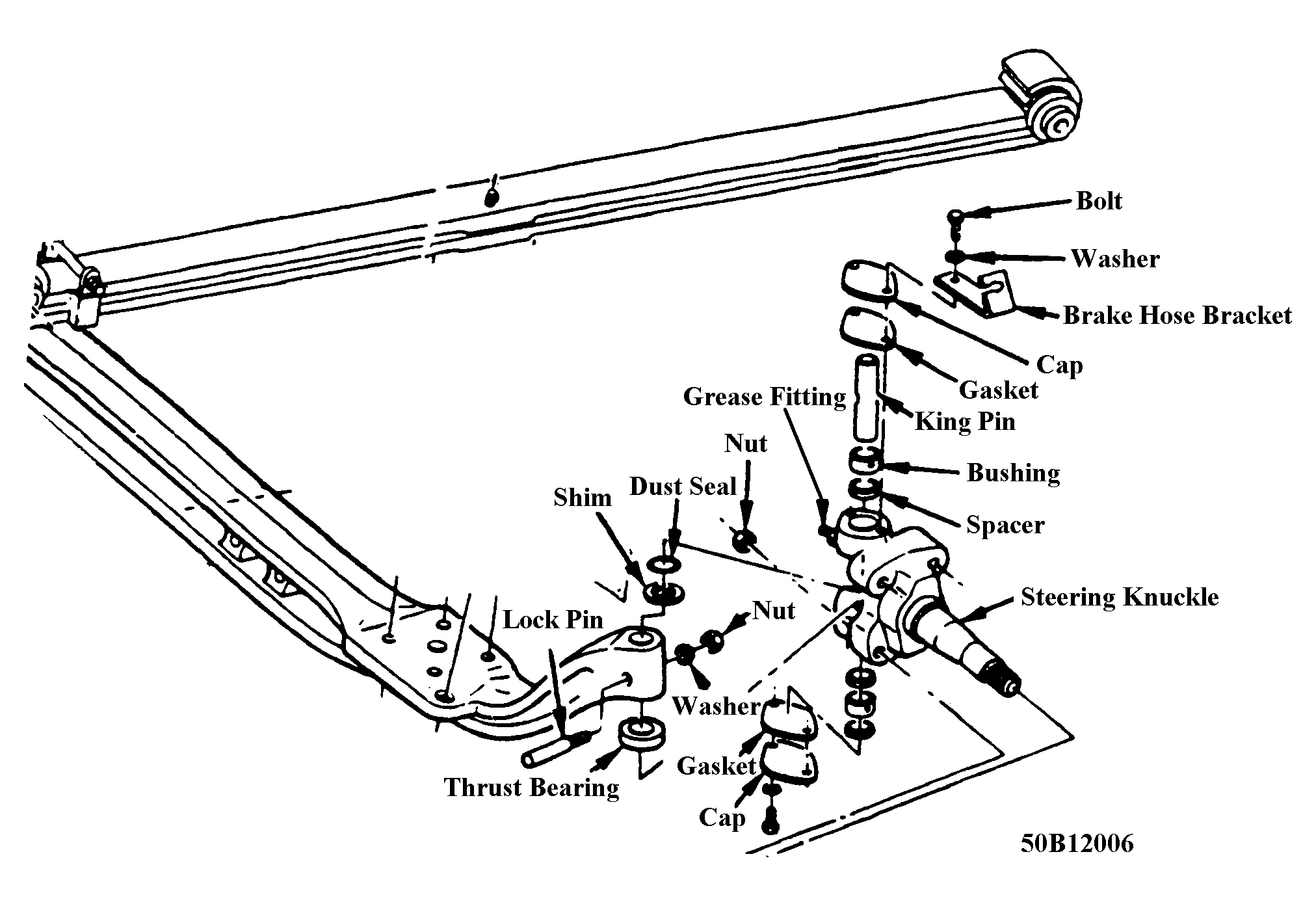

Fig 2: King Pin Service Points (3500 HD Solid Front Axle)
G50B12006Courtesy of GENERAL MOTORS CORP.
