Removal & Installation ("C" & "K" Series)

  1. Disconnect negative battery cable. Remove headlight switch knob and radio control knobs. Remove steering column cover. Remove 8 screws attaching bezel and remove bezel.

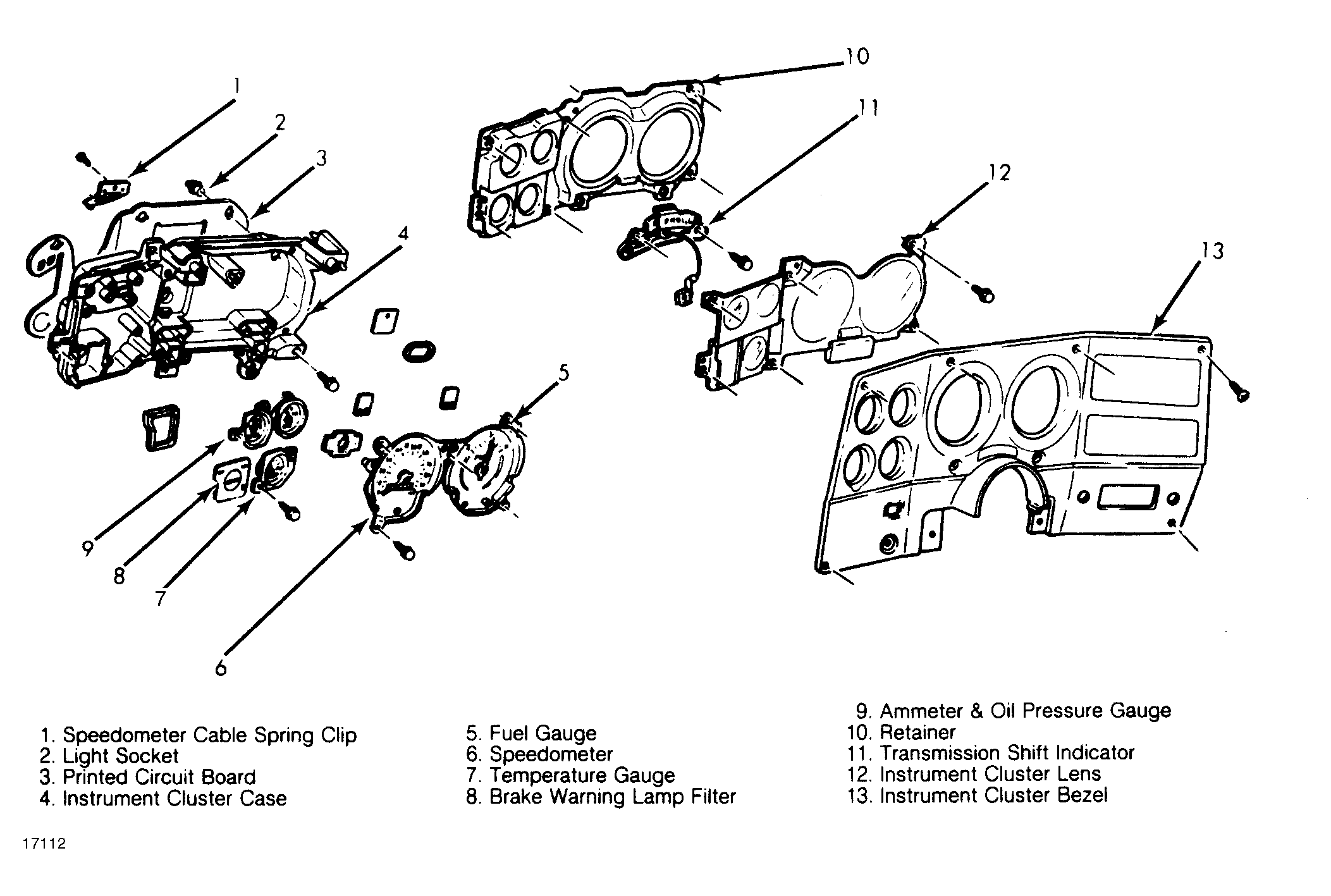

  2. Disconnect speedometer cable by depressing spring clip on rear of speedometer head and pulling cable free. See Figure . Remove instrument cluster retaining screws and pull out cluster. Disconnect instrument cluster harness and remove cluster. To install, reverse removal procedure.
